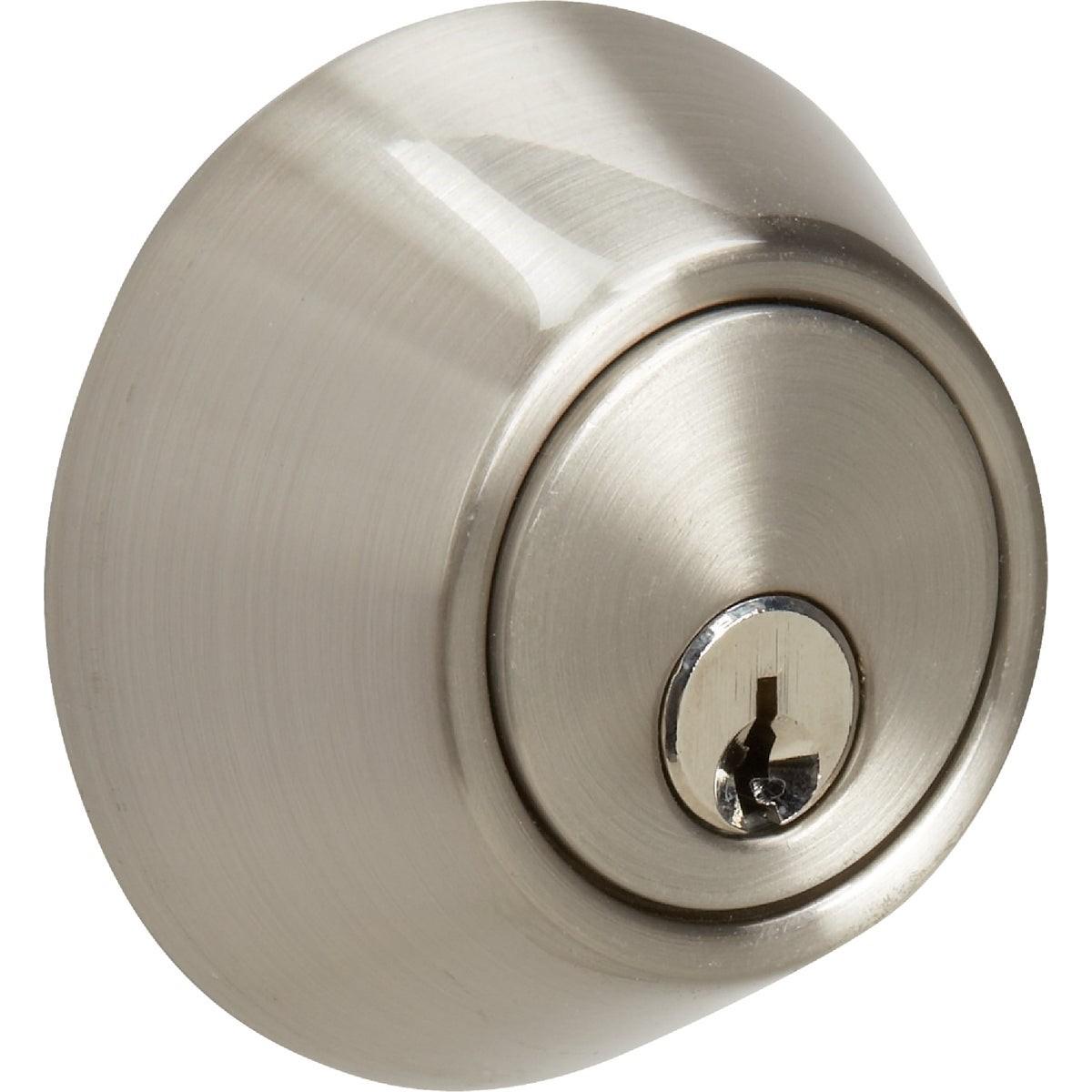

Honeywell DB9X22 Double Cylinder Deadbolt Brushed Nickel

Product Description

The HONEYWELL DB9X22 is a double cylinder deadbolt finished in brushed nickel and constructed with a steel pro housing. It is designed for residential entry doors where keyed access is required on both the interior and exterior sides. The adjustable latch accommodates backsets of 2-3/8 inches or 2-3/4 inches, making it compatible with most standard door preparations. The square face latch and 1 inch hardened throw bolt provide solid mechanical resistance. Locksmiths and general contractors are the primary installers, though experienced finish carpenters handle these routinely as well.

This deadbolt suits residential applications where a double cylinder configuration is appropriate, such as doors with glass panels near the lock or side lights that could allow someone to reach an interior thumb turn. It ships in a consumer clear pack and includes an adjustable latch interchangeable for either standard backset dimension. When ordering in case quantities of 24 units, the shipment includes 4 sets of 6 keyed-alike cylinders, simplifying keying on multi-door projects.

Key Features

• Double cylinder operation — key required on both interior and exterior sides
• 1 inch hardened steel throw bolt for mechanical strength
• Adjustable latch fits 2-3/8 inch or 2-3/4 inch backsets
• Square face deadbolt latch for clean, standard door prep compatibility
• Uses Kwikset keyway for broad key duplication availability
• Case quantity of 24 includes 4 sets of 6 keyed-alike cylinders

Compatibility

Designed as an OEM-style replacement or new-installation deadbolt for standard residential door preparations accepting a 2-3/8 inch or 2-3/4 inch backset with a square face latch bore.

Installation Notes

Installation is typically performed by a licensed locksmith or a qualified finish carpenter following local building code requirements. Ensure the door is properly aligned and the strike plate mortise is square before final installation. Both the interior and exterior cylinder retaining screws should be tightened to manufacturer seating, and the bolt throw should be tested for smooth, full extension before closing the door. Because this is a double cylinder deadbolt, ensure occupants understand egress implications and comply with any applicable local fire or life safety code requirements.

Technical Specifications

• Finish: Brushed Nickel
• Material: Steel
• Cylinder Type: Double Cylinder
• Bolt Throw: 1 inch hardened
• Backset Compatibility: 2-3/8 inches or 2-3/4 inches (adjustable)
• Latch Face: Square
• Keyway: Kwikset
• Weight: 1.314 pounds
• Sold As: Each
• UPC: 00009326205915

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: DB9X22
