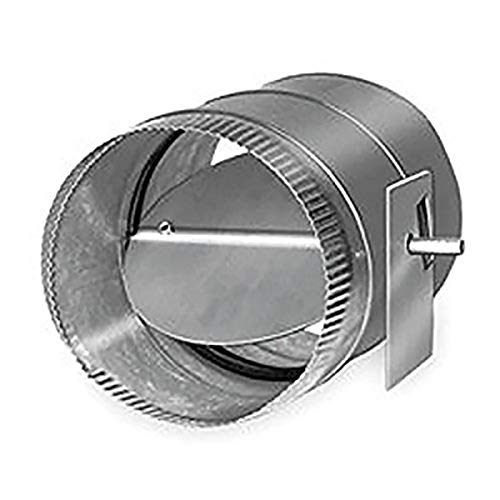

Honeywell D690A1051 Single Blade Round Damper 16 inches

Product Description

The Honeywell D690A1051 round damper controls airflow in a round duct within conventional air handling systems. Designed for use with Honeywell ML6161 and ML7161 direct coupled actuators. It features a neoprene seal for tight closing and low leakage.

• Neoprene seal for tight closing and low leakage
• Oilite bearings for long life
• 90 degree damper travel for a variety of applications

Product Highlights

The D690 round damper is for use with Honeywell ML6161 and ML7161 direct coupled actuators.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: D690A1051
• Country of Origin: United States

Technical Specifications

• Application: heating, cooling, ventilating
• Temperature Range (F): 32 F to 130 F
• Temperature Range (C): 0 C to 54 C
• Used With: W7751 VAV Controller,ML6161,ML7161
• Damper Type: Single-blade, round
• Maximum Approach Velocity (ft/ min): 2500 ft/min
• Input Signal: None
• Length (In.): 17
• Diameter (In.): 16
