HONEYWELL D690A1036/U 12 Inch Round Damper Replacement MPN

Product Description

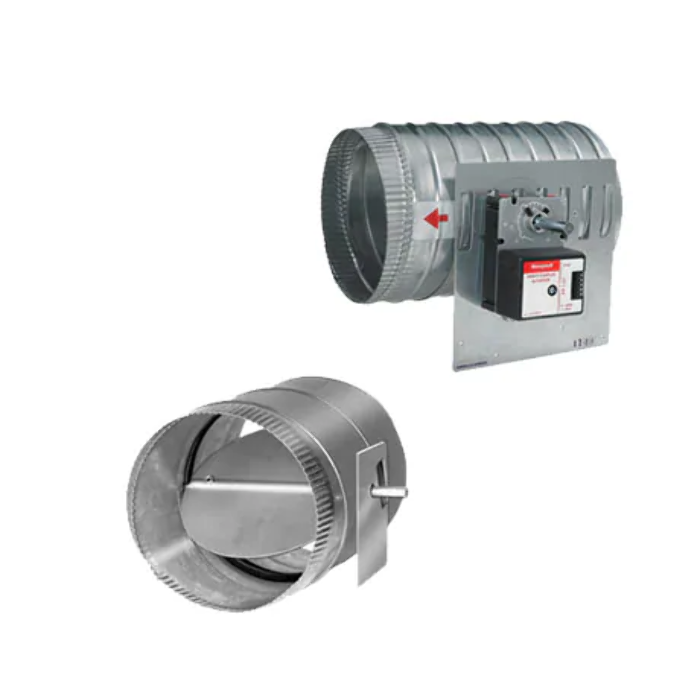

The HONEYWELL D690A1036/U is a twelve inch round damper designed for air handling in HVAC systems. It effectively regulates airflow in round ducts and pairs with Honeywell ML6161 and ML7161 Direct Coupled Actuators, providing seamless control.

• Neoprene seal minimizes leakage.
• Durable Oilite bearings ensure longevity.
• Allows 90-degree damper travel for various system needs.

Product Highlights

This round damper is essential for heating, cooling, and ventilating applications, making it versatile for commercial building controls.

Product Information

Standard Information

• Application: Heating, cooling, ventilating
• Temperature Range (F): 32 F to 130 F
• Temperature Range (C): 0 C to 54 C

Technical Specifications

• Used With: W7751 VAV Controller, ML6161, ML7161
• Tradeline Size: 12 in. diameter
• Size (mm): 305 mm diameter
• Damper Type: Single-blade, round
• Maximum Approach Velocity: 2500 ft/min
• Input Signal: None
