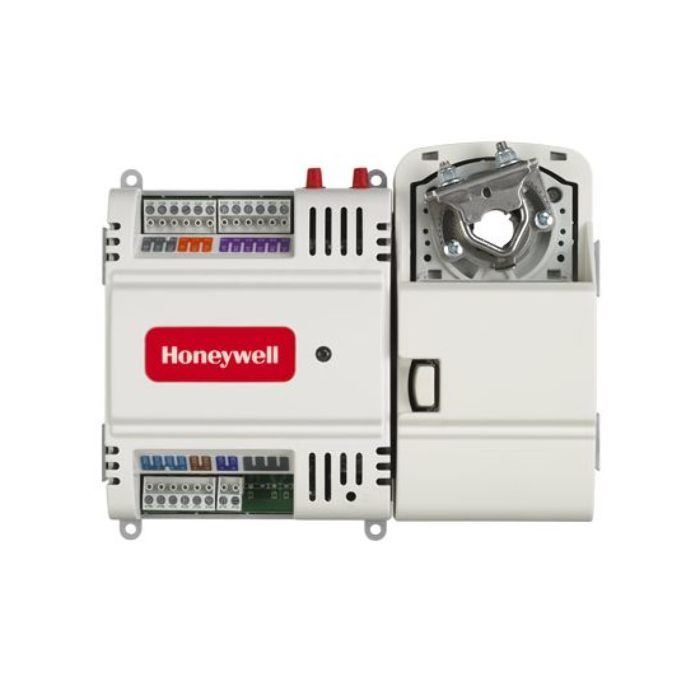

Honeywell CVL4022AS-VAV1/U Stryker, 8 IO VAV Configurable, Stand-alone

Product Description

The Honeywell CVL4022AS-VAV1/U Stryker is a versatile controller designed for variable air volume (VAV) applications. It features eight input/output configurations and can operate in both stand-alone and networked environments using the LonWorks protocol. The built-in actuator offers reliable control with up to forty-four inch-pounds of torque, making it suitable for various HVAC systems.

• Configurable I/O for customized application needs
• Supports stand-alone and network communication
• UL plenum rated for safe installation in ceiling spaces

Product Highlights

This controller can be installed easily with removable terminal blocks, promoting quick setup and serviceability. The integrated real-time clock and user-accessible airflow sensor inputs enhance operational efficiency and monitoring capabilities.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: CVL4022AS-VAV1/U

Technical Specifications

• Type: Configurable, Stand-alone
• Power Supply: 24 VAC (valid range 20 to 30 VAC)
• Ports: FTT-10A LON
• Operating Temperature: 0 to 50 C (32 to 122 F)
• Mounting: Damper Shaft Mount
• Approvals: UL/cUL Listed, FCC compliant
• Application: VAV
• Communication Network: Lonworks
