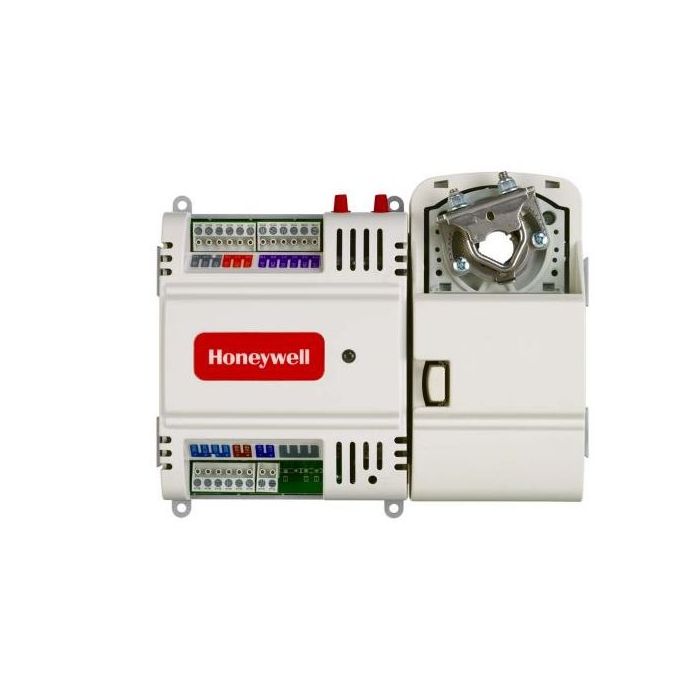

Honeywell CVB4022AS-VAV1 Stryker 8 IO VAV configurable controller 24 VAC

Product Description

The HONEYWELL CVB4022AS-VAV1 is a Stryker 8 IO VAV configurable controller designed for HVAC equipment. This stand-alone controller operates on 24 VAC (20 to 30 VAC) and features BACnet MS/TP communication. It includes a built-in actuator for damper shaft mounting and supports field configuration using NIAGARA FRAMEWORK software for VAV control applications.

• Features a built-in actuator, real-time clock, and Sylk Bus for enhanced functionality.
• Capable of stand-alone operation and utilizes BACnet network communications.
• Includes a microbridge air flow sensor with dual integral restrictor design for precise VAV control.

Product Highlights

Configurable VAV controller with integrated actuator, BACnet MS/TP, and Sylk Bus for efficient HVAC system management.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: CVB4022AS-VAV1

Technical Specifications

• Input Voltage: 24 VAC with a Valid Range of 20 to 30 VAC
• Operating Temperature: 0 to 50 C (32 to 122 F)
• Certifications: UL/cUL (E87741) Listed Under UL916 (Standard for Open Energy Management Equipment) with Plenum Rating, CSA (LR95329-3) Listed, Meets FCC Part 15, Subpart B, Class B (Radiated Emissions) Requirements
• Communication Protocol: BACnet MS/TP
• I/O Points: 8
• Ports: RS-485
• Product Family: Stryker
• Controller Type: Configurable, Stand-alone
• Application: VAV
• Mounting Type: Damper Shaft Mount
• Power Consumption: 100 VA for controller and all connected loads
• Relative Humidity: 5% to 95% non-condensing
