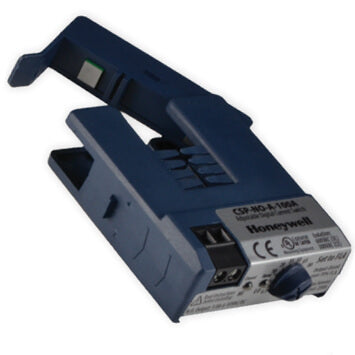

Honeywell CSP-NO-A-150A Adjustable Split Core N/O Mini Current Switch 0.5-150A

Product Description

The Honeywell CSP-NO-A-150A is an adjustable split-core current switch designed for precise and reliable current measurement in industrial applications. This easy-to-install switch does not require wire disconnection, making it non-intrusive.

• Current range: 0.5-150A
• Split-core design for easy installation
• No need to disconnect wires

Product Highlights

Honeywell's CSP-NO-A-150A offers an adjustable current range from 0.5 to 150 amps, making it suitable for various industrial applications. Its split-core design ensures easy installation and removal without disconnecting wires.

Product Information

Standard Information

• Brand: Honeywell
• Rated current: 150A

Technical Specifications

• Rated current: 150A
• Secondary current: 5A
• Output: 0-5V
• Frequency range: 50-60 Hz
• Operating temperature: -20°C to +80°C
• Weight: 0.3 lbs
• Dimensions: L: 4.5 inches x W: 2.5 inches x H: 3.0 inches
• Sensor range: 0.5-150 Amp
• Humidity range: 0 to 95% RH (Non-Condensing)
