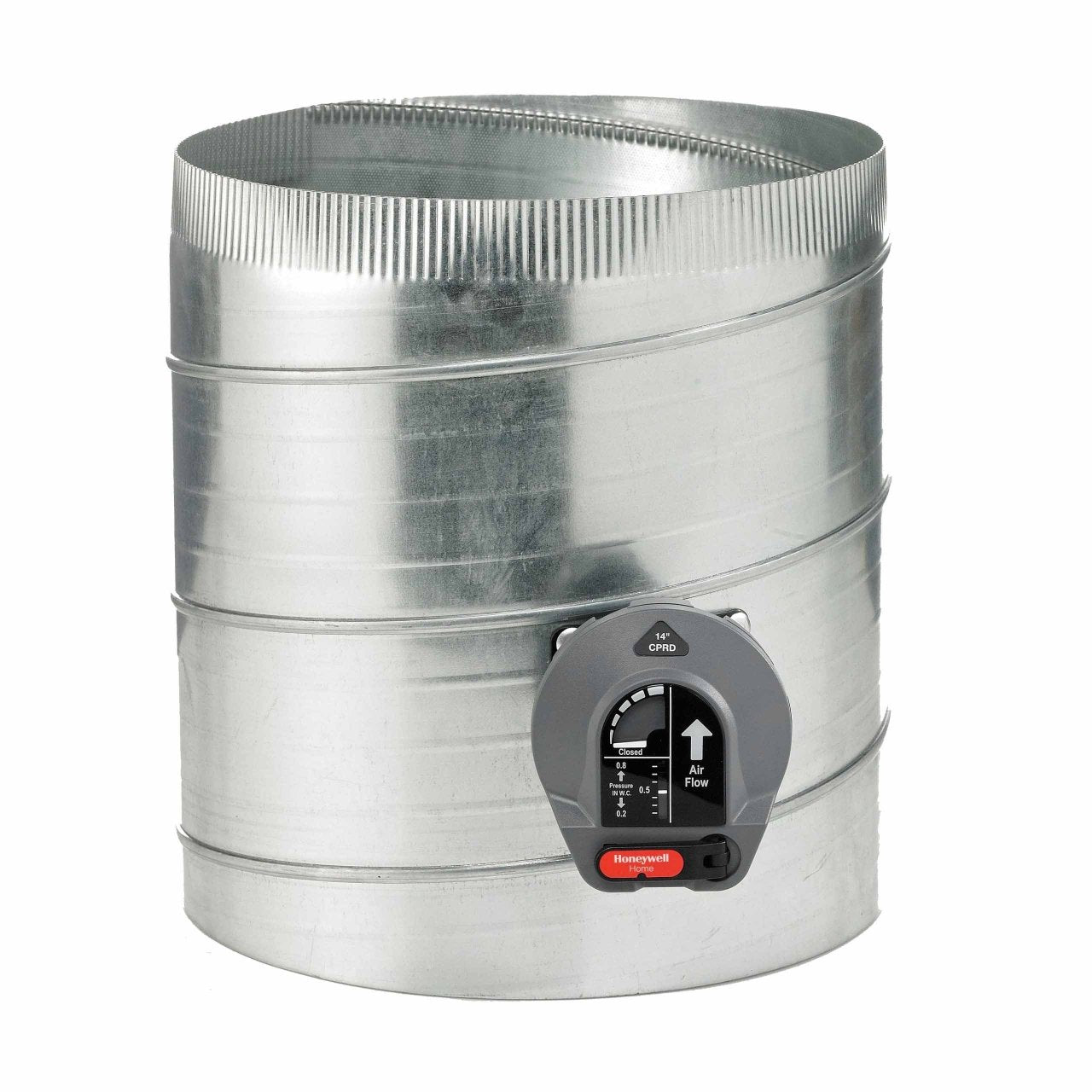

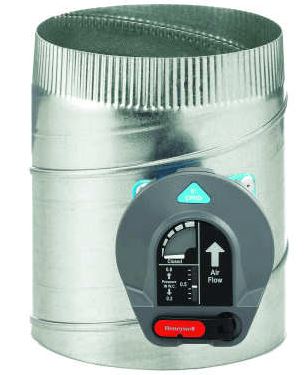

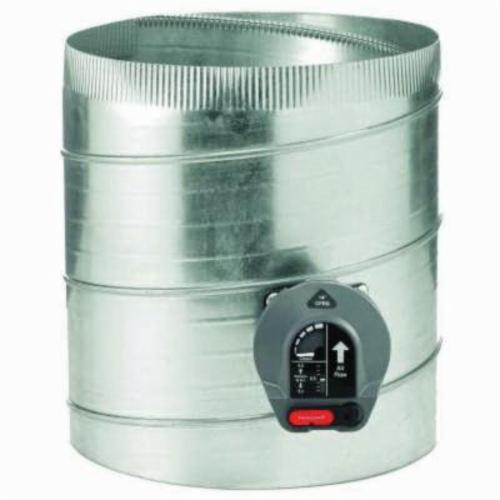

Honeywell CPRD14/U TrueZONE Constant Pressure Regulating Damper, 14 in, Round

Product Description

The HONEYWELL CPRD14/U is a 14" Truezone bypass damper. This damper is engineered to provide constant system pressure regardless of changes in zones celling or blower speed. It features a quick connect regulator for motor or actuator mounting and bypasses up to 1400 cfm. It can be installed in any orientation.

• Quick installation and setup
• No weight to adjusts
• Can be installed in any orientation

Product Highlights

The Honeywell CPRD14/U damper provides constant system pressure and is suitable for use in forced-air bypass applications to relieve excess static pressure.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: CPRD14/U
• Country of Origin: MX

Technical Specifications

• Country of Origin: MX
• Domestic/Import: Import
• Finish: Galvanized
• Material: Steel
• Motor Type: Calibrated Spring Tension Regulator
• Series: CPRD Series
• Shape: Round
• Size: 14 in
• Temperature Rating: 0 to 165 deg F
• Type: Constant Pressure
• CFM Rating: Up to 1400 cfm
