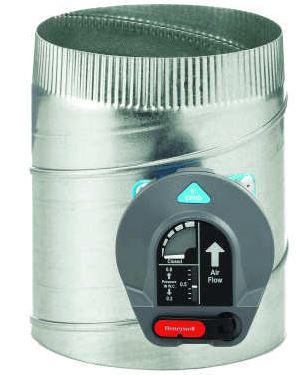

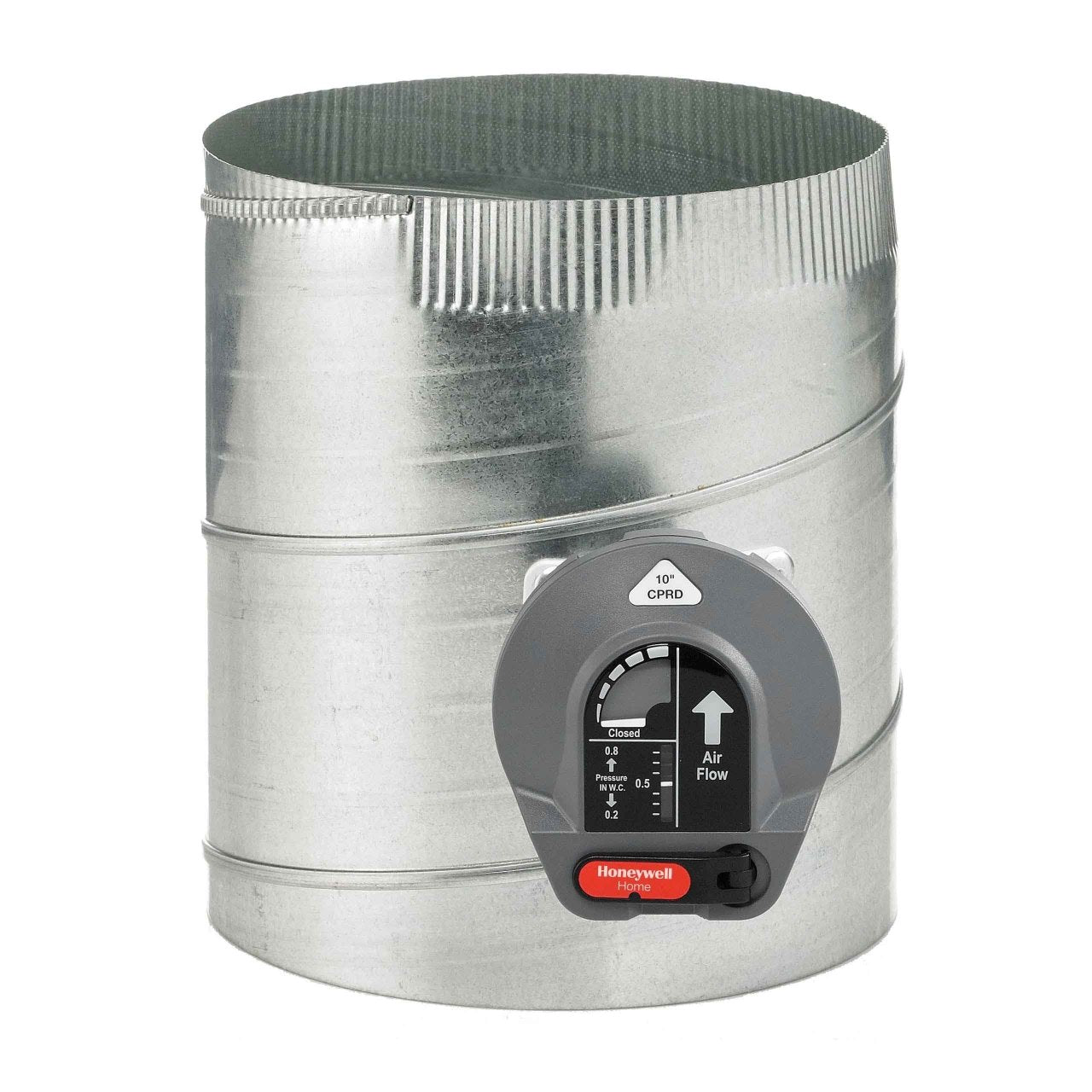

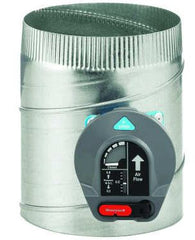

Honeywell CPRD10/U Truezone Constant Pressure Regulating Damper (10 in)

Product Description

Honeywell CPRD10/U is a 10 in TrueZONE constant pressure regulating bypass damper for forced-air zoning systems that relieves excess static pressure when zone dampers close. Constructed of galvanized steel with a calibrated spring tension regulator and pre-set dial, it installs at any orientation and supports bypass airflow for modern multi-zone HVAC systems while simplifying installation with a quick-connect regulator mount.

• 10 in round galvanized steel construction with calibrated spring tension regulator and pre-set dial
• Constant pressure bypass function for forced-air zoning; bypass capacity up to 1,000 CFM
• Installs at any orientation or angle and uses a quick-connect regulator motor mount; no balancing weights required

Product Highlights

Round 10 in bypass damper providing constant pressure relief up to 1,000 CFM with a preset calibrated spring regulator and quick-connect motor mounting.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: CPRD10/U
• Country of Origin: Mexico

Technical Specifications

• Brand: Honeywell
• MPN: CPRD10/U
• Series: CPRD
• Type: Constant pressure regulating (bypass) damper
• Application: Round static pressure relief bypass damper for forced-air zoning systems
• Size: 10 in (254 mm) diameter
• Shape: Round
• Material: Galvanized steel
• Finish: Galvanized
• Material Thickness: 26 gauge
• Blade Material: Galvanized steel
• Motor Type: Calibrated spring tension regulator
• Motor Mounting: Quick-connect regulator motor mount
• Adjustment: Pre-set dial (no balancing weights required)
• Max Airflow: Up to 1,000 CFM
• Function: Provides constant system pressure regardless of zone changes or blower speed
• Orientation: Can be installed at any orientation or angle
• Temperature Rating (Ambient): 0 to 165 deg F
• Actuator Location: Bottom mount
• UPC: 85267992169
• Country of Origin: MX
• Dimensions: 11.10 x 13.35 x 12.35 in
• Weight: 5.3 lb
