Honeywell CPR14/U TrueZONE Bypass Replacement Regulator 14 inches REPLACEMENT CPRD14

Product Description

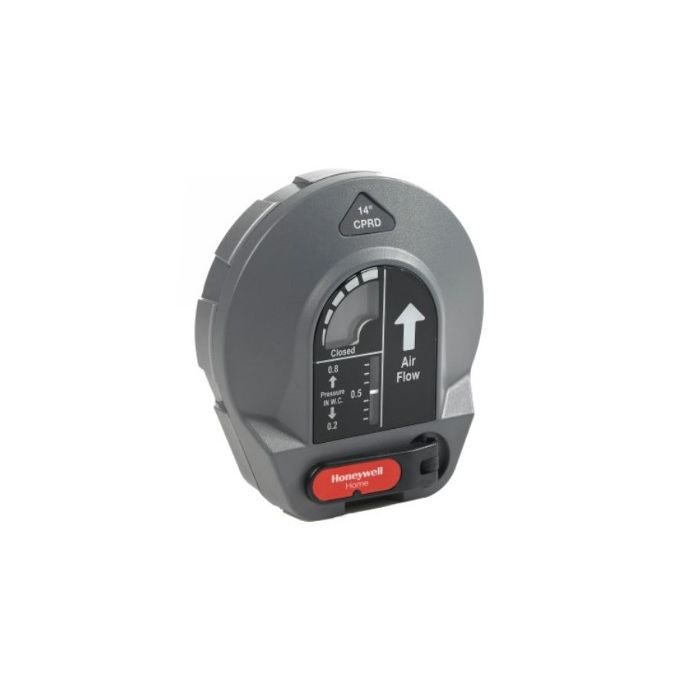

The Honeywell CPR14/U TrueZONE Bypass Replacement Regulator is a 14" round, galvanized steel regulator. Engineered to provide constant system pressure regardless of changes in zones ceilings or blower speed. It is used in forced-air bypass applications to relieve excess static pressure when some of the zone dampers are closed.

• Quick Installation and Setup
• No Weight to Adjust
• Can be Installed in any Orientation
• Engineered to Provide Constant System Pressure Regardless of Changes in Zones Ceiling or Blower Speed

Product Highlights

The TrueZONE Bypass constant pressure regulating damper (CPRD) is a round static pressure relief damper.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: CPR14/U

Technical Specifications

• Type: Bypass Regulator
• Used On: CPRD14 Constant Pressure Regulating Damper
• Ambient Temperature: 0 to 165 Deg F
• Material: Steel
• Motor Type: Calibrated Spring Tension Regulator
• Manufacturer: Honeywell
• Manufacturer #: CPR14/U
• Suitable For Use With: CPRD14 Damper
• Size: 14 Inch
• Motor or Actuator Mounting Type: Quick-Connect Regulator
• Brand: Honeywell
