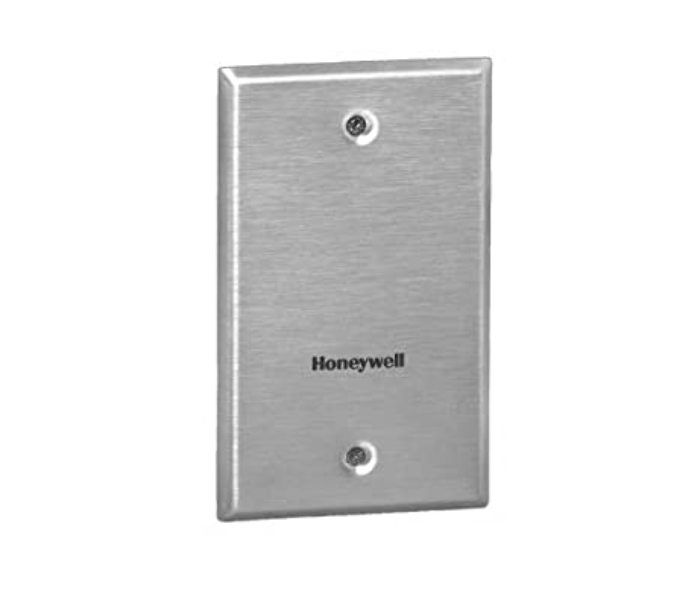

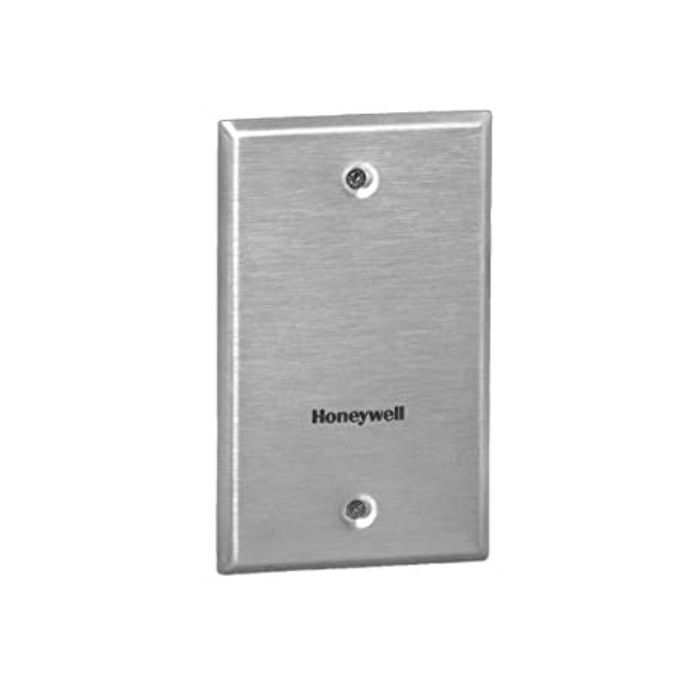

Honeywell C7772G1004/U Wall Plate Temperature Sensor

Product Description

The Honeywell C7772G1004/U is a wall plate temperature sensor designed for reliable performance in HVAC applications. This device is suitable for flush mounting and provides precise temperature readings.

• Designed for low profile wall mounting.
• Equipped with a rugged stainless steel wallplate.
• Features insulated screw terminals for a secure wiring connection.

Product Highlights

This temperature sensor is ideal for commercial building controls and delivers accurate temperature measurements in environments that require durable installation.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: C7772G1004/U

Technical Specifications

• Mounting: Flush Mount
• Enclosure: Stainless Steel Plate
• Configuration: Room
• Sensors Application: Temperature
• Temperature Sensor Type: 10K Type III
• Dimensions: 4.5 inches high x 2.75 inches wide
• Operating Humidity Range: 5 to 95% RH, non-condensing
• Operating Temperature Range: 45°F to 99°F
• Shipping and Storage Temperature Range: -40°F to 150°F
