Honeywell C7735A1000/U Duct Temperature Sensor

Product Description

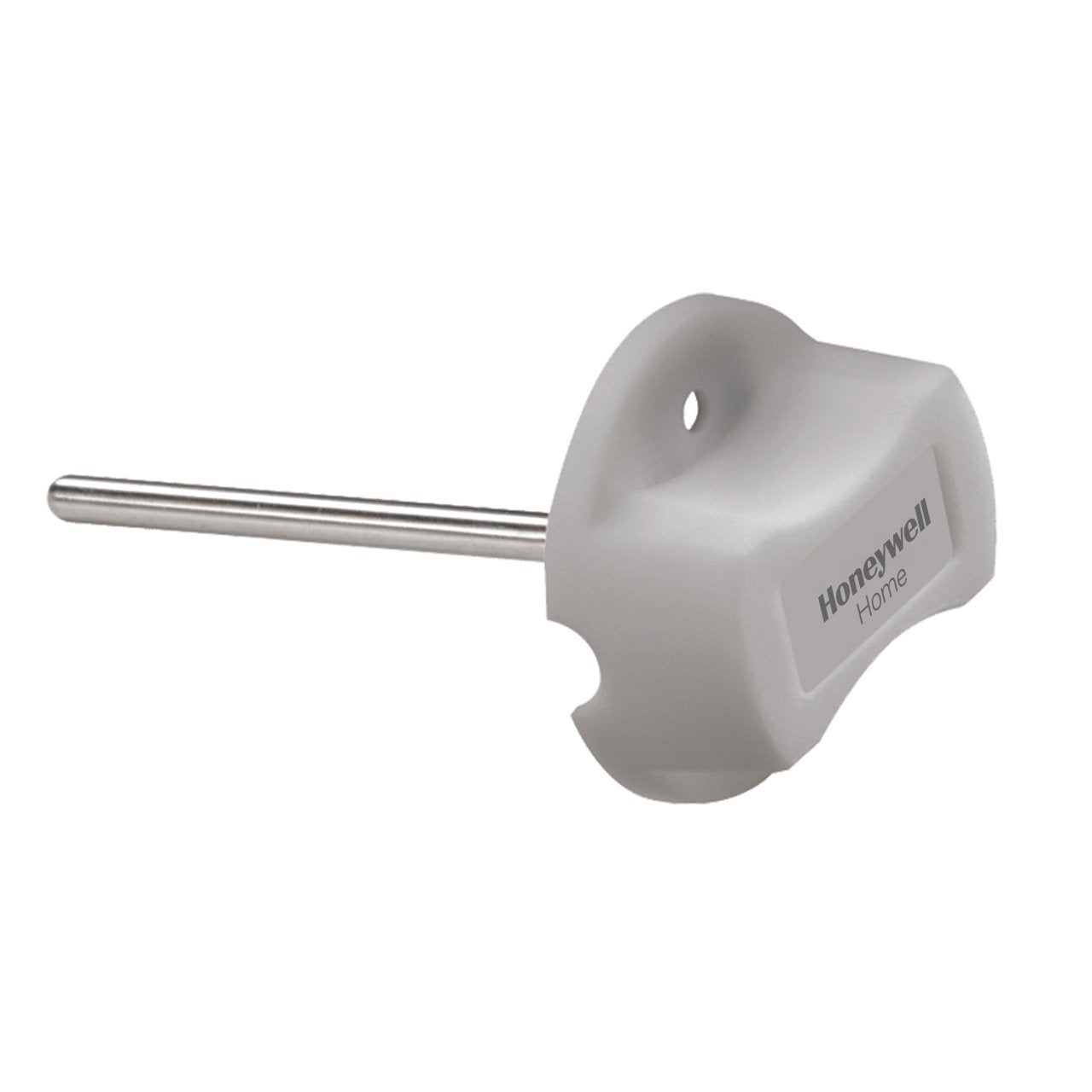

The HONEYWELL C7735A1000/U is a duct temperature sensor with Redlink wireless and a plastic gray enclosure. It is for use with THM5320R1000 equipment interface module, TH6320R1004 or TH5320R1002 wireless FocusPRO thermostat. The sensor maintains safe indoor temperatures if power is lost at the wireless thermostat.

• Works with THM5320R1000 Equipment Interface Module to maintain safe indoor temperatures if power is lost at the wireless thermostat
• Takes control of the equipment by turning on the blower fan and sensing the indoor temperature of the home
• Controls Heating at 62 F and Cooling at 82 F

Product Highlights

The HONEYWELL C7735A1000/U duct temperature sensor provides homeowners with peace of mind and installs in minutes. Includes mounting hardware.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: C7735A1000/U
• Country of Origin: United States

Technical Specifications

• Mounting: Duct Mount
• Enclosure: Plastic
• Probe Lead: 2-4
• Configuration: Duct
• Sensors Application: Temperature
• Communication Network: RedLINK
• Temperature Range: 0 Degree - 200 Degree F
• Model / MPN: C7735A1000/U
• Manufacturer: Honeywell
• Application: Temperature Sensing for Air Ducts or Air Handlers
• Warranty: 5 Years

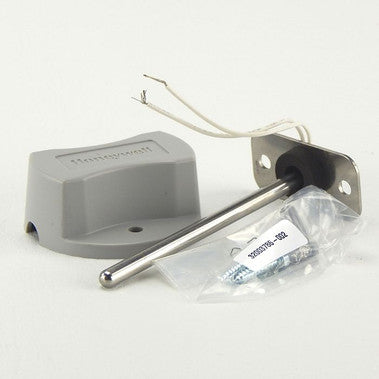

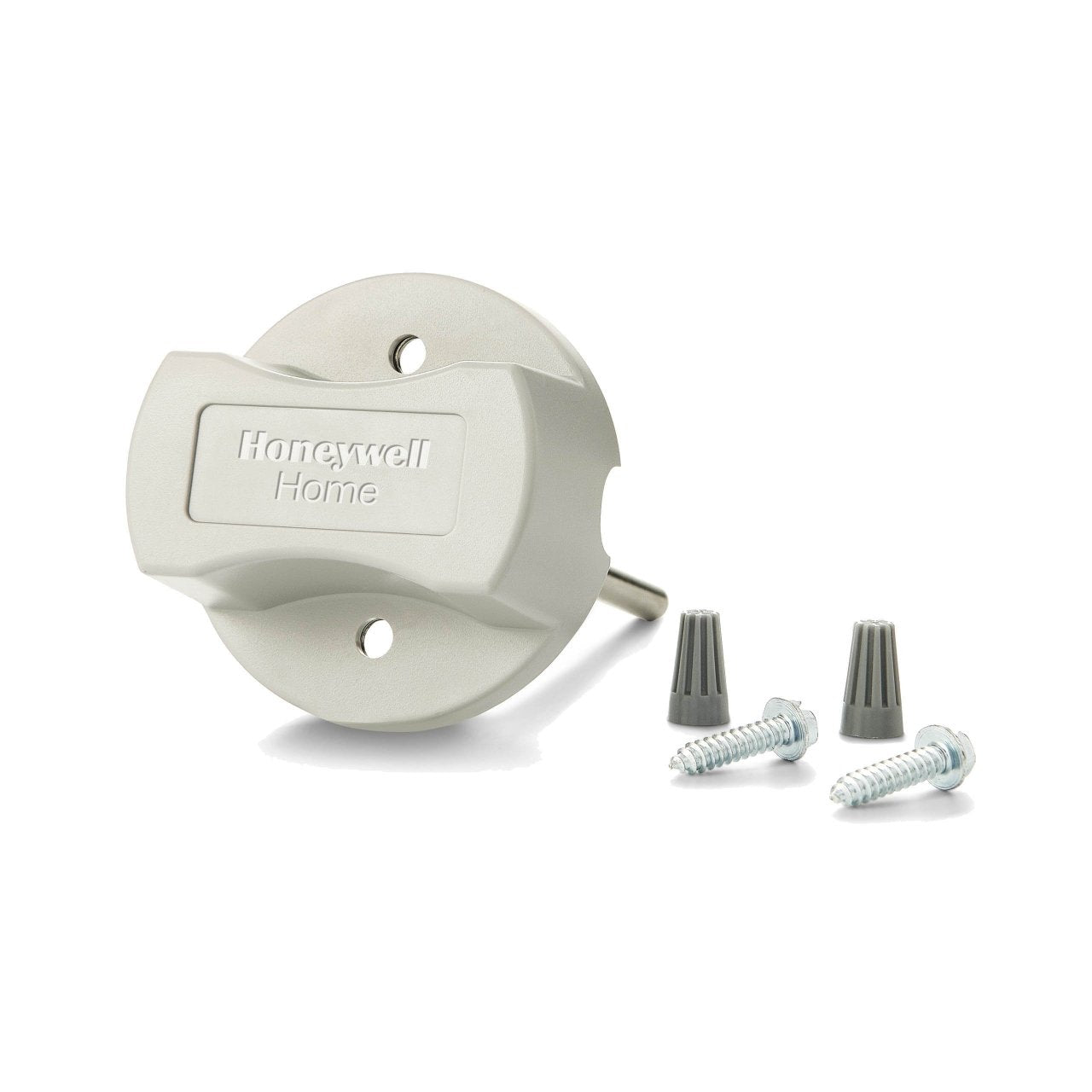

• Includes: Mounting hardware
• Product Height: 3.88 in, 77 mm
• Product Width: 4.13 in, 102 mm
• Sensor Type: PTC
• Ambient Operating Temperature (Min): -40 °F
• Ambient Operating Temperature (Max): 170 °F
• Environmental Conditions Measured: Temperature
• Mounting Type: Return Duct Mount, Duct Mount
• Ambient Relative Humidity (Min): 5% Non-condensing
• Ambient Relative Humidity (Max): 95% Non-condensing
• For Use With: Equipment Interface Module, Wireless FocusPRO® Thermostat
• Brand: Honeywell
• Country of Origin: MX
• Dimensions: 4-1/8 in W x 1-1/4 in D x 3-7/8 in H
• Manufacturer Name: Resideo Technologies
• Suitable For Use With: THM5320R1000 Equipment Interface Module, TH6320R1004 or TH5320R1002 Wireless FocusPRO Thermostat
• Type: Mount on Return
• Output Type: Analog
• Specific Uses For Product: Temperature Sensor
• Upper Temperature Rating: 257 Degrees Fahrenheit
• Smart Home Compatibility: Not Smart Home Compatible
• Material Type: Silicon, Metals, Plastics
• Style: Modern
• Item Dimensions: 6.1 x 4.3 x 4.1 inches
• Item Weight: 5 Grams
• Device Type: HVAC Wired Sensor, Temperature Sensor
• Compatible Models: THM5320R1000, TH6320R1004, TH5320R1002
• Min Measurement Temp: -17.8 degC
• Max Measurement Temp: 93.3 degC
• Additional Features: Temperature Sensor
• Dimensions (Inches): 4.1 x 3.9 x 1.3
• Weight: 0.3 lb
• Temperature Settings: 62 deg F Heating, 82 deg F Cooling
• Length: 4-1/8 in
• Height: 3-7/8 in
• Width: 1-1/4 in
• Temperature Rating: 0 - 200 deg F
• Ambient Temperature Rating: 32-200 F
• Depth: 1.031 in
• Diameter: 2.438 in
• Function Type: Temperature Sensor
• Installation / Mounting Type: Duct Mount
• Material: Metal~Plastic
• Operating Temperature Rating: 32-200 F
• Power Source: Hardwired
• Product Type: Temperature Sensor
• Resistance: 10 kOhm
• Setpoint Temperature Range: 62-82 F
