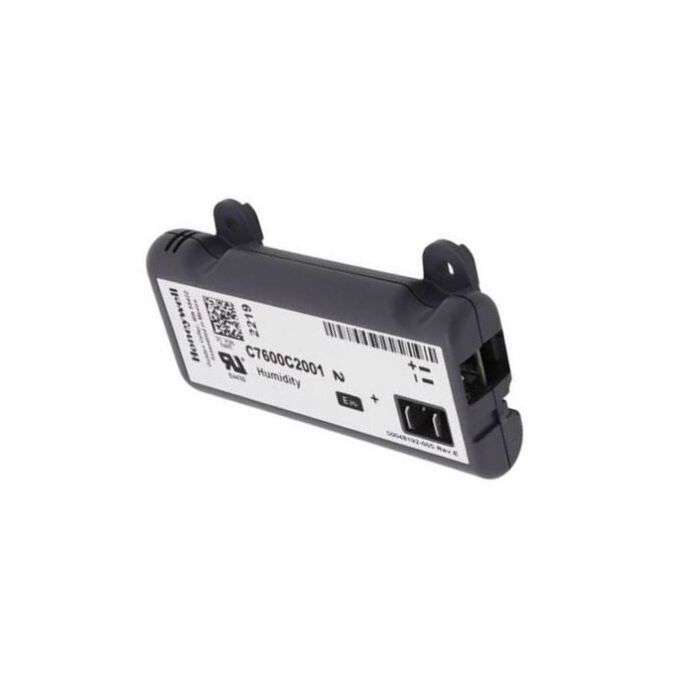

Honeywell C7600C2001/U Duct Humidity Sensor 10 To 90% RH 4 To 20 MA Output

Product Description

The Honeywell C7600C2001/U is a duct humidity sensor designed to measure relative humidity in air. This device provides a 4 to 20 mA output and is suitable for various HVAC control applications.

• Measuring range from 10% to 90% relative humidity
• Compatible with controls that require a 4 to 20 mA input
• Plastic gray enclosure designed for wall mounting

Product Highlights

The C7600C2001/U is ideal for HVAC systems that need accurate humidity monitoring. The sensor is mounted in areas with free airflow for optimal performance.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: C7600C2001/U

Technical Specifications

• Mounting: Wall Mount
• Enclosure: Plastic
• Configuration: Room
• Sensors Application: Humidity
• Output Voltage Signal Range: 4 to 20 mA
• Operating Humidity Range: 10 to 90% RH
• Operating Temperature Range: -40 F to 150 F
• Dimensions: 4.25 inches high x 2.17 inches wide x 0.81 inches deep
• Color: Gray
