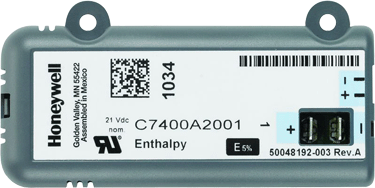

Honeywell C7400A2001/U Enthalpy Sensor - 4-20 mA Output

Product Description

The Honeywell C7400A2001/U is an enthalpy sensor designed for use in commercial building controls, specifically with economizer systems such as the W7212 and W7459. This analog sensor measures both temperature and humidity to maximize energy savings through efficient control of air conditions.

• Utilizes solid-state elements for accurate sensing of enthalpy.
• Supports use in single or differential control setups.
• Mountable up to 200 feet from the Economizer Logic Module.

Product Highlights

The Honeywell C7400A2001/U sensor ensures optimal performance in HVAC systems by providing reliable measurements and easy integration with existing controls.

Product Information

Standard Information

• Application: Enthalpy economizing sensor for precise measurement of temperature and humidity.
• Item Type: Product

Technical Specifications

• Dimensions: Four point two five inches high x two point one seven inches wide x zero point eight one inches deep.
• Electrical Connections: Two one quarter inch quick-connect terminals.
• Operating Humidity Range: Eleven to eighty-nine percent relative humidity.
• Operating Temperature Range: Negative forty degrees Fahrenheit to one hundred fifty degrees Fahrenheit (-40C to 66C).
• Color: Gray.
• Maximum Ambient Temperature: One hundred fifty degrees Fahrenheit (66C).
• Approvals: Underwriters Laboratories Inc. Component Recognized.
