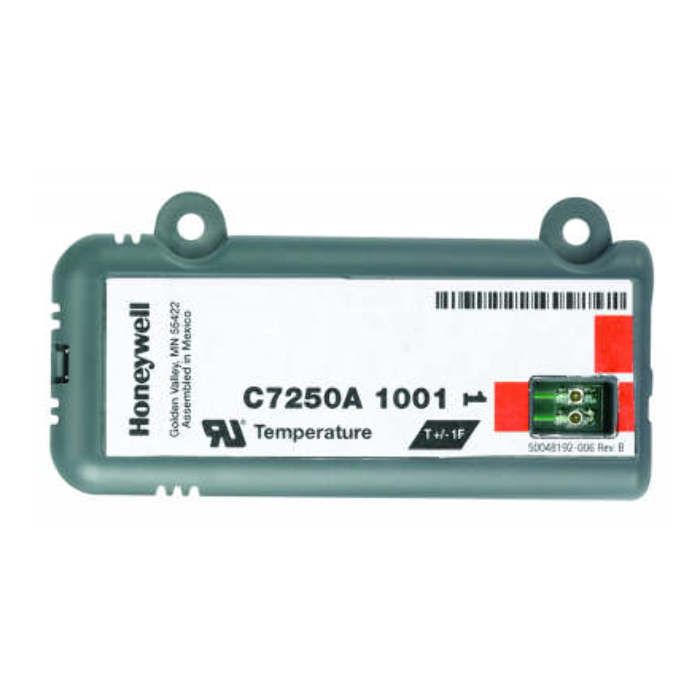

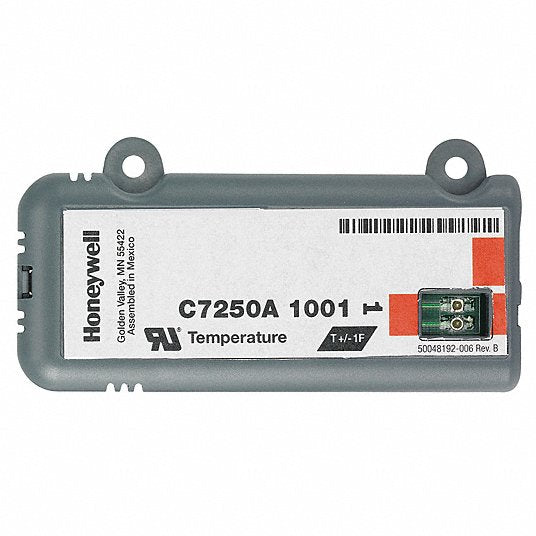

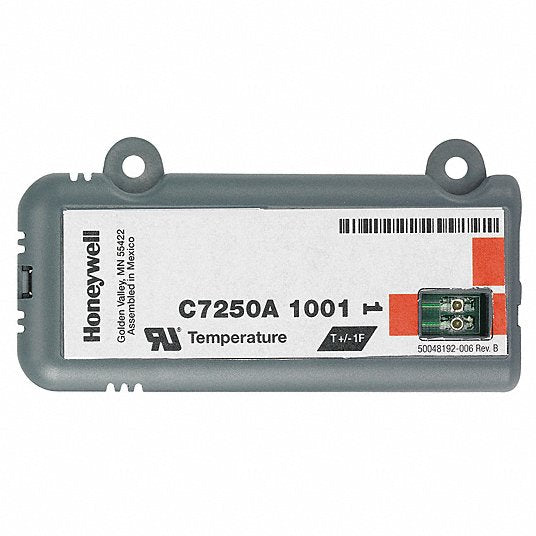

Honeywell C7250A1001/U electronic 20K temperature sensor -40 to 150 degree F

Product Description

The HONEYWELL C7250A1001/U is an electronic 20K temperature sensor designed for mixed air temperature sensing in rooftop packaged air conditioning equipment. It provides a 20k NTC input signal to a controller, enabling economizer modes of operation. This sensor is compatible with the JADE Economizer System (Model W7220) and operates within a temperature range of -40 to 150 degrees Fahrenheit. It is suitable for duct mounting.

• Designed for mixed air temperature sensing in HVAC equipment.
• Provides a 20k NTC input signal to compatible controllers.
• Operates within a temperature range of -40 to 150 degrees Fahrenheit.

Product Highlights

Electronic 20K NTC temperature sensor for mixed air applications, compatible with JADE Economizer systems.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: C7250A1001/U
• Country of Origin: United States

Technical Specifications

• MPN: C7250A1001/U
• Brand: Honeywell
• Manufacturer: Honeywell
• Product Type: Economizer Temperature Sensor
• Sensor Type: Electronic 20K NTC Temperature Sensor
• Application: Mixed Air
• Mounting Type: Duct Mount
• Mounting Position: Any Position
• Enclosure Material: Plastic
• Temperature Range: -40 to 150 °F
• Input Signal: 20k
• Output Signal: 20k NTC
• Compatibility: JADE Economizer System (W7220)
• Compatible Series: JADE
• Compatible Protocols: Sylk
• Use With: Building Automation Systems
• Electrical Connection Type: Screw Terminals
• Certifications: UL recognized component (Guide info XAPX)
• Standards: CE, cULus Listed, EN60730-1 Annex H.23 (Emissions), EN61000-3-2, EN61000-3-3, EN61000-6-1, EN61000-6-3, Annex H.26 (Immunity)
