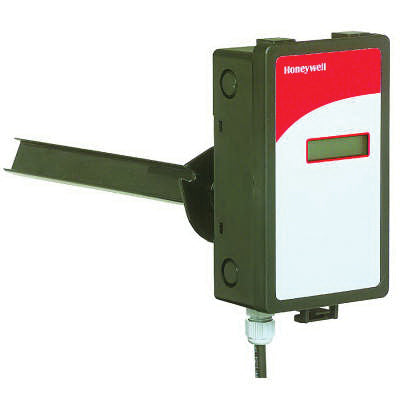

Honeywell C7232B1022/U Duct CO2 Sensor

Product Description

The Honeywell C7232B1022/U is a duct CO2 sensor designed for effective ventilation control. This sensor utilizes non-dispersive infrared (NDIR) technology to accurately measure carbon dioxide levels. It features selectable voltage output of two to ten VDC or four to twenty mA, making it adaptable for various applications. The unit is suitable for duct mounting and operates on a 24 VAC or DC supply voltage.

• Non-dispersive infrared sensor for precise CO2 measurement
• Includes LCD for real-time sensor readings
• Field selectable voltage or current output

Product Highlights

The C7232B1022/U is ideal for managing fresh outdoor air in commercial buildings, ensuring optimal indoor air quality. It is equipped with automatic background calibration to reduce maintenance needs.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: C7232B1022/U

Technical Specifications

• Mounting: Duct Mount
• Enclosure: NEMA 3
• Probe Lead: 8-10 inches
• Output Voltage Signal Range: 2 to 10 V, 4 to 20 mA
• Sensor Application: Gas Specialty
