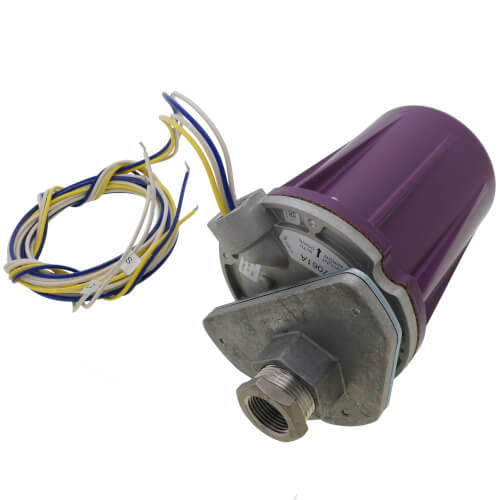

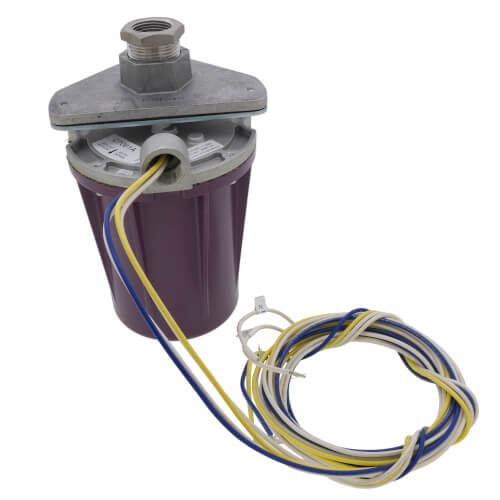

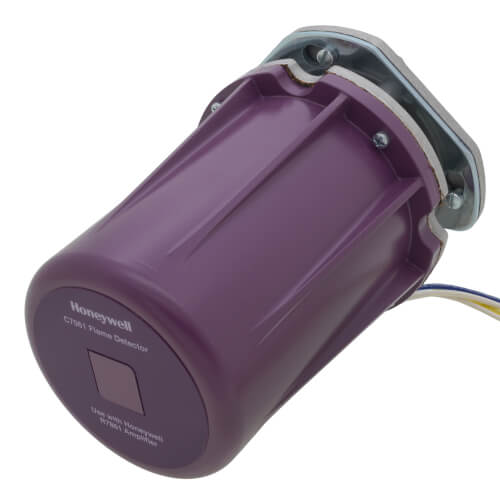

Honeywell C7061A1053 Dynamic Self Check UV Detector 1120V UV FLM SNSR SELF-CH 96

Product Description

The Honeywell C7061A1053 Dynamic Self Check UV Detector is designed for sensing ultraviolet radiation in combustion from gas, oil, or other fuels. It works with the R7861 Dynamic Self-check Amplifiers to ensure reliable performance.

• Oscillating shutter for checking UV sensor function
• Mounting options in any orientation
• Field-replaceable UV sensing tube and quartz window

Product Highlights

This UV flame sensor can be mounted horizontally, vertically, or at any angle, making it versatile for various applications. It features an oscillating shutter to interrupt UV radiation and perform the UV sensor tube checking function. The field-replaceable UV sensing tube and quartz viewing window add convenience.

Product Information

Standard Information

• Brand: Honeywell
• MPN: C7061A1053

Technical Specifications

• Power: 1120V
• Lead Wire Length: 96 inches
• NEMA Rating: 4
• Temperature Range: -40°F to 175°F
• Weight: 4.2 lbs
• Dimensions: 10.8 inches length x 6.55 inches width x 6.4 inches height
• Compatible Amplifier: R7861 Dynamic Self-check Amplifiers
• Replaceable Parts: UV sensing tube, quartz viewing window
