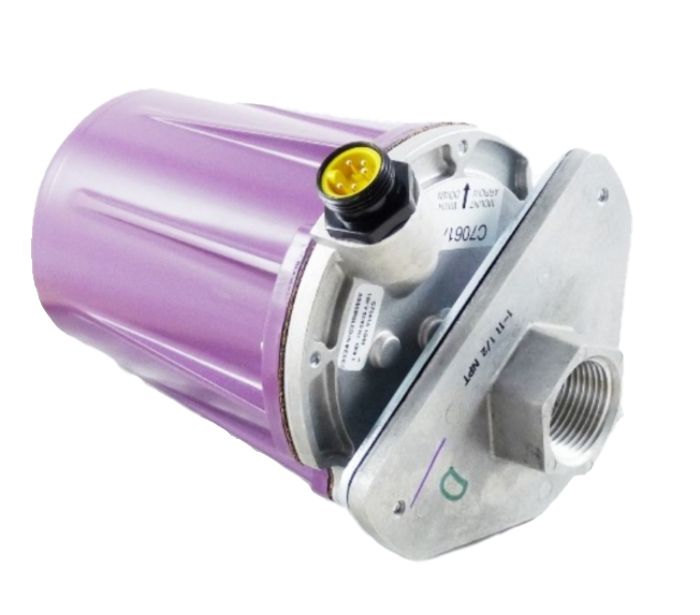

Honeywell C7061A1046/U Dynamic Self-Check UV Flame Detector

Product Description

The Honeywell C7061A1046/U is a Dynamic Self-Check UV Flame Detector designed for reliable flame monitoring in various applications. This detector operates on 120 VAC and features a temperature range of -40 F to 175 F. It includes an oscillating shutter that interrupts UV radiation to check the UV sensing tube.

• Can be mounted in multiple orientations, including vertical and horizontal
• Provides a field-replaceable UV sensing tube and quartz viewing window
• Meets IP66 standards and is rated for high-pressure environments

Product Highlights

The C7061A1046/U ensures optimal performance with integral locating reference points for proper shutter operation. It can reduce nuisance shutdowns by wiring two detectors in parallel, making it well-suited for challenging flame sighting applications.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: C7061A1046/U
• Voltage: 120 VAC
• Temperature Range: -40 F to 175 F
• Mounting: 1 in. NPT
• Protection Rating: NEMA 4

Technical Specifications

• Oscillating Shutter: Interrupts UV radiation
• Field-Replaceable Components: UV sensing tube and quartz window
• Pressure Rating: Viewing window rated to 20 psi
• Heat Block: Integrated into mounting flange
• Operating Environment: Designed for harsh conditions
