Honeywell C7035A1080/U Minipeeper UV Flame Detector 1 inch NPT Mount 72 inch Lead Length

Product Description

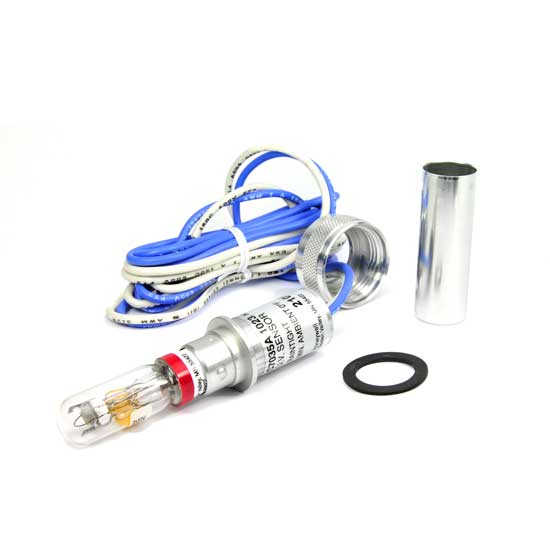

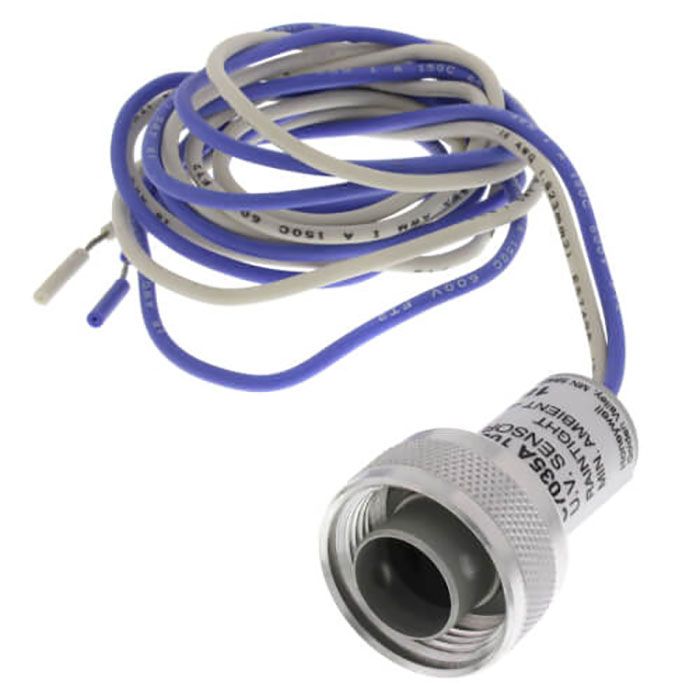

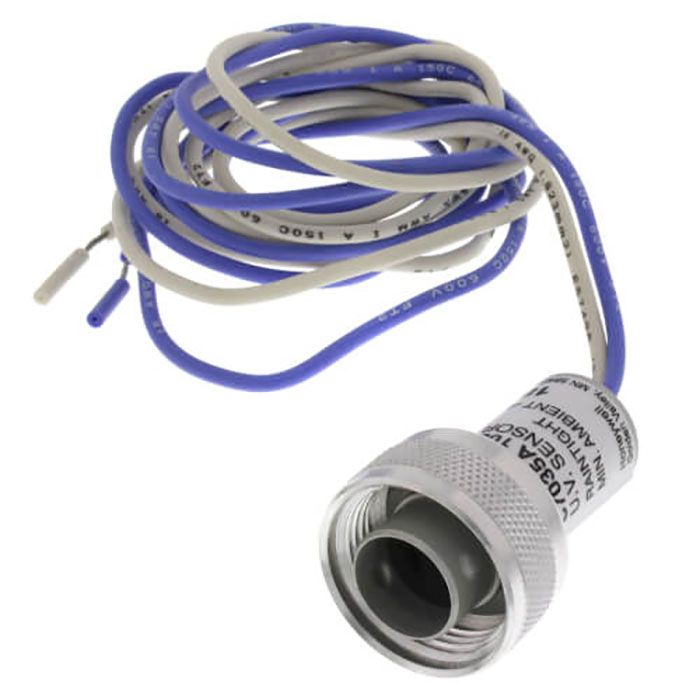

The HONEYWELL C7035A1080/U is a Minipeeper UV Flame Detector designed for use with Honeywell Flame Safeguard Primary Safety Controls and burners requiring UV flame detection. It mounts on a 1 inch sighting pipe using an integral collar and protects the sensing tube with a shield. This detector meets outdoor rain tight requirements of Underwriters Laboratories Inc., NEMA 4 and NEMA 4X, and can seal against pressures up to 5 psi when correctly installed. It operates within a temperature range of 0 F to 250 F and features 72 inch leads.

• Detects UV Radiation In Flames
• Mounts On A 1 in. Sighting Pipe By Using An Integral Collar
• Field-Replaceable UV Sensing Tube

Product Highlights

This UV flame detector offers robust environmental protection and flexible installation for critical flame sensing applications.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: C7035A1080/U
• Country of Origin: United States

Technical Specifications

• Temperature Range: 0 F to 250 F
• Lead Length: 72 in.
• Environmental Rating: NEMA 4, NEMA 4X (Outdoor Rain Tight)
• Pressure Sealing: Up to 5 psi
• Mounting: 1 inch NPT Mount
• Compatible Amplifiers: R7249A, R7290A, R7749B, R7849A, B
• Internal Thread: 1-11-1/2 NPSM
• DIN Certified Model Thread: 1-11 BSP.P1
• Electrical Wire Rating: NEC Class 1, up to 204°C
• Rear Thread: 1/2-14 NPSM
