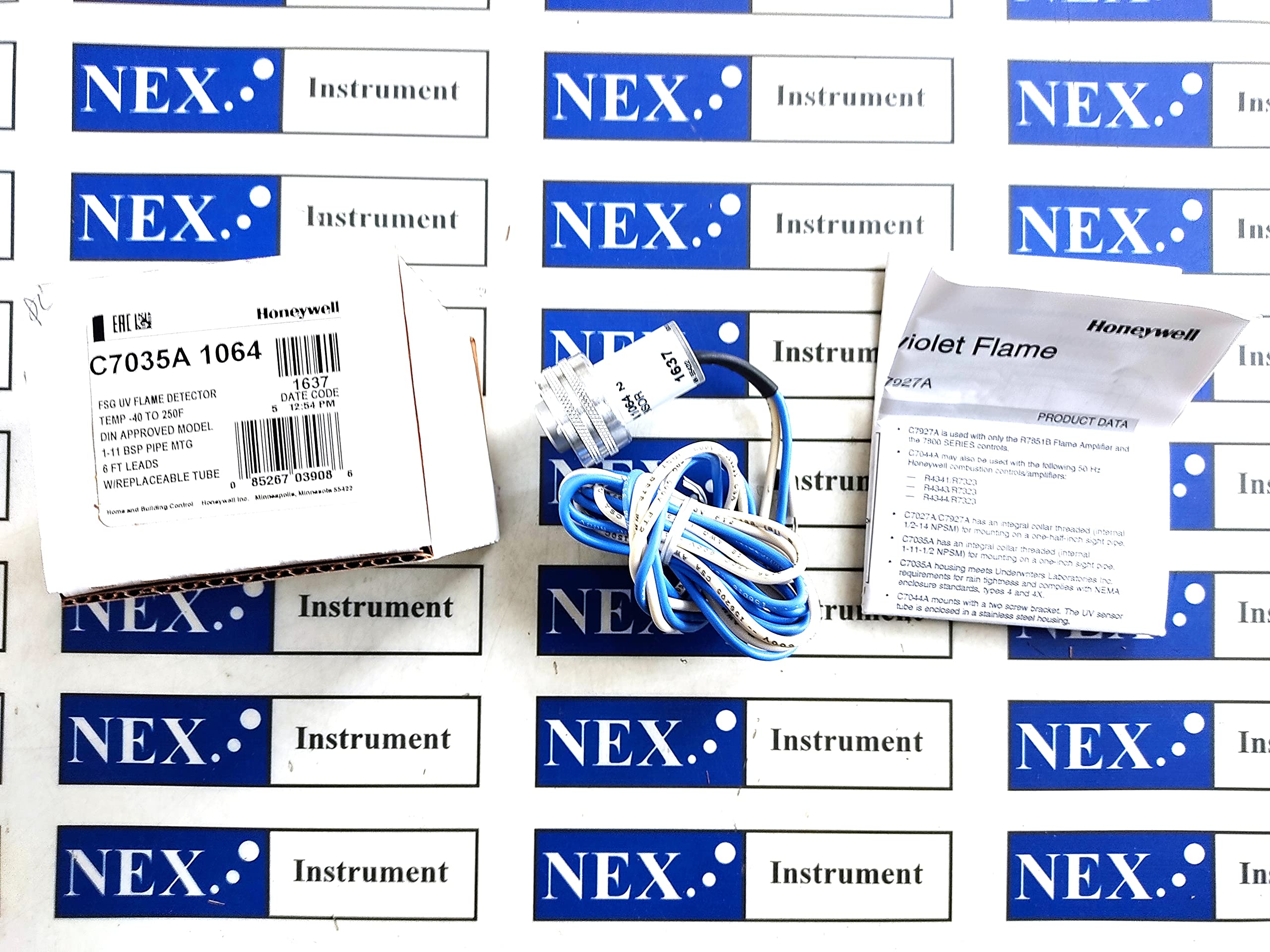

Honeywell C7035A1064 Minipeeper Ultraviolet Flame Detector 0-250F DIN Model

Product Description

Honeywell offers the C7035A1064 Minipeeper Ultraviolet Flame Detector, a critical component for industrial heating systems that require precise flame detection for optimal performance. With a temperature range of 0 to 250 degrees Fahrenheit, this model is engineered to operate under the challenging conditions of industrial settings.

• Features a BSP.PL threaded connection for secure installation.
• Compatible with various Honeywell flame safeguard controls.
• Durable construction meets NEMA 3 and NEMA 4 standards for outdoor use.

Product Highlights

Designed for long-term use in harsh environments, the Honeywell C7035A1064 ensures reliable performance and safety. It's equipped with a UV-sensitive tube that detects flame presence, providing real-time safety control for gas and oil burners.

Product Information

Standard Information

• Application: Industrial heating systems
• Compatibility: Works with Honeywell RA890G, R7249A, R7290A, R7749B, and R7849A,B amplifiers.

Technical Specifications

• Temperature Range: 0 to 250 degrees Fahrenheit
• Connection Type: BSP.PL threaded
• Standard Compliance: NEMA 3, NEMA 4
• Mounting: Can be mounted on a 1 inch sighting pipe
• Seal Pressure Rating: Up to 5 psi (34.5 kPa)
• Replacement Tube: Field-replaceable UV sensing tube
