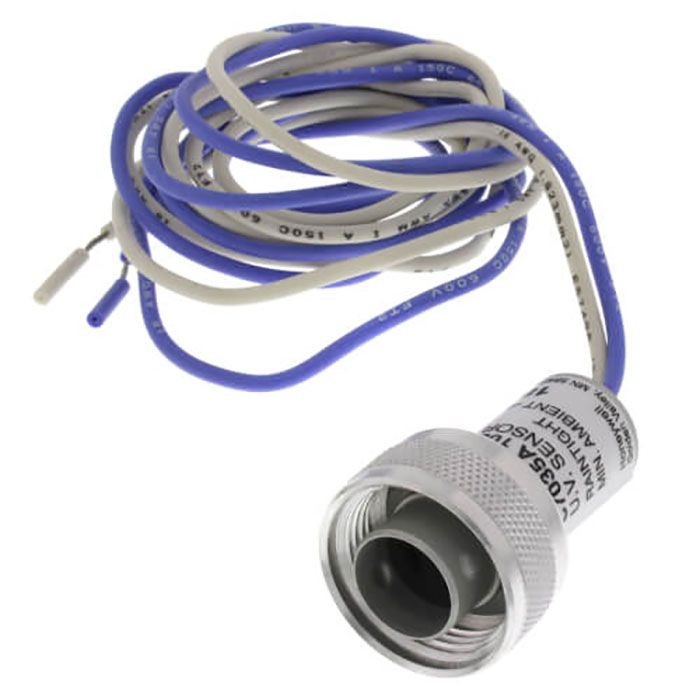

Honeywell C7035A1049/U Minipeeper UV Flame Detector 72 in. Leads

Product Description

The HONEYWELL C7035A1049/U Minipeeper UV Flame Detector identifies ultraviolet radiation from combustion flames. Operating within a 0 F to 250 F temperature range, it features 72 inch leads. This detector is designed for use with Honeywell flame safeguard controls, providing flame supervision for gas, oil, or combination gas-oil burners, ensuring reliable operation in industrial settings.

• Use with Honeywell Flame Safeguard primary safety controls and burners requiring UV flame detection.
• Mounts on a 1 inch sighting pipe using an integral collar.
• Protects the sensing tube with a shield.

Product Highlights

This UV flame detector offers reliable flame supervision for industrial burners, featuring a wide temperature range and robust NEMA 4 and 4X protection.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: C7035A1049/U

Technical Specifications

• Temperature Range: 0 F to 250 F
• Leads Length: 72 in.
• NEMA Rating: 4 and 4X
