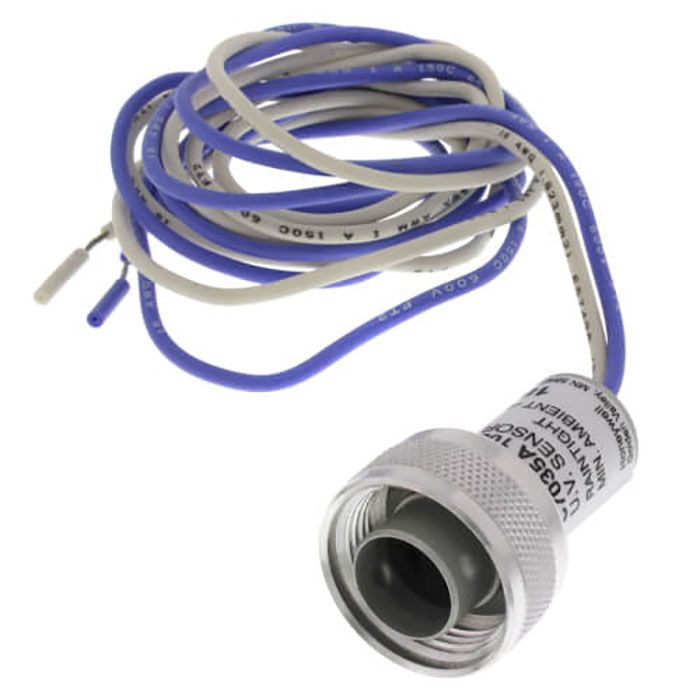

Honeywell C7035A1031/U Minipeeper UV Flame Detector 72 in. Leads 1 inch NPT Mount

Product Description

The Honeywell C7035A1031/U Minipeeper UV Flame Detector is designed to detect ultraviolet radiation in flames. This sensor operates within a temperature range of -40°F to 250°F and includes 72-inch leads for installation flexibility. It is suitable for use with Honeywell flame safeguard primary safety controls and burners requiring UV flame detection, providing flame supervision for gas, oil, or combination gas-oil burners.

• Designed for use with Honeywell flame safeguard primary safety controls and burners requiring UV flame detection.
• Mounts on a 1 inch sighting pipe using an integral collar for secure installation.

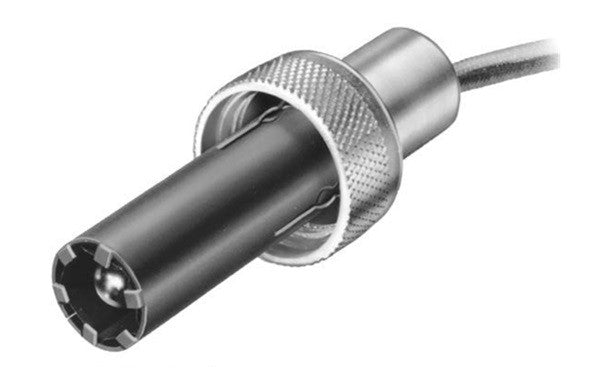

• Features a shield to protect the sensing tube and meets NEMA 4 and NEMA 4X outdoor rain tight requirements.

Product Highlights

Detects ultraviolet radiation in flames, suitable for various burner types, and features a field-replaceable UV sensing tube.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: C7035A1031/U
• Country of Origin: United States

Technical Specifications

• Product Type: ELECTRONIC_COMPONENT
• Operating Temperature: -40°F to 250°F
• Mounting Type: 1 inch NPT
• Detection Type: UV Radiation In Flames
• Leads Length: 72 in.
• Enclosure Rating: NEMA 4, 4X
• Sensing Tube: Field-Replaceable UV
• Type: Ultraviolet
• Fuel Type: Coal, Gas, Oil
• Electrical Connections: 2NEC Class 1 Lead Wires
• Connection Type: NPSM
• Series: C7035A
• Suitable For Use With: R7249A, B, R7849A, B, R7749B, R7259, R7290 Flame Amplifiers
