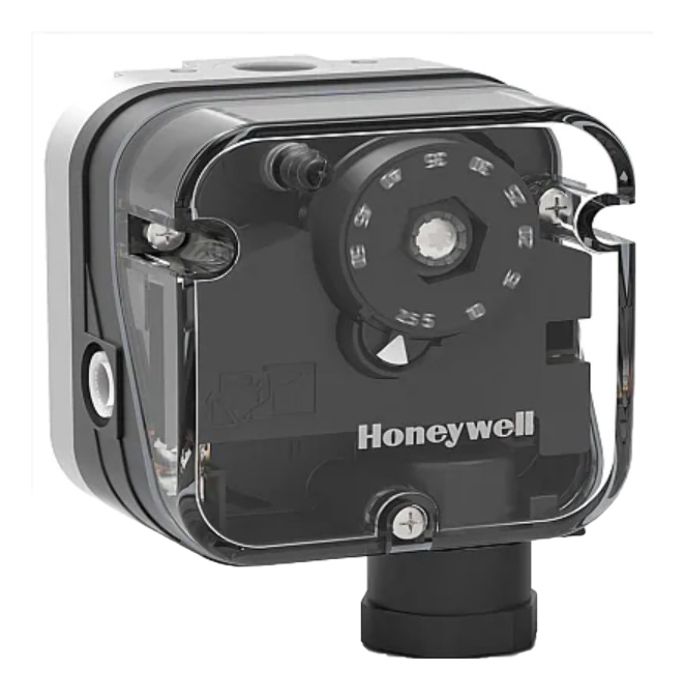

Honeywell C6097B3028/U High Gas Pressure Switch, 3-21 in. w.c.

Product Description

The Honeywell C6097B3028/U is a high gas pressure switch designed for use in various gas and air applications. This model features a diaphragm-actuated mechanism that ensures reliable safety-limiting operations. It provides a manual reset option and breaks on pressure rise to maintain operational safety.

• Pressure switch is suitable for general gas and air applications.
• Diaphragm-actuated safety-limit switch for consistent performance.
• Switch can be wired to turn on an alarm for added safety.

Product Highlights

Engineered with multiple safety features and certifications, it includes a removable transparent cover that protects the scale plate and adjusting knob. The switch also has an additional cover over the screw terminal to enhance safety during operation.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: C6097B3028/U
• Minimum Order Quantity: 1
• Availability: In Stock

Technical Specifications

• Pressure Range: 3-21 in. w.c.
• Connection Type: 1/4 inch NPT
• Protection Class: IP65
• Certification: FM and UL Certified
• Vent Limiter: Integral 0.2 mm
• Filter Pad: Included for gas/air inlet selection
