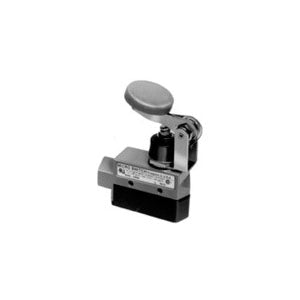

Honeywell BZE6-2RN4 microswitch enc plunger switch IU

Product Description

The Honeywell BZE6-2RN4 microswitch is designed for industrial applications requiring reliable performance. This enclosed limit switch operates at various voltages including one hundred twenty-five, two hundred fifty, four hundred eighty, and six hundred volts AC, and one hundred twenty-five and two hundred fifty volts DC. It supports current ratings from zero point twenty-five to fifteen amps.

• Snap-action mechanism
• Manual palm button actuator
• Durable die-cast zinc construction

Product Highlights

Efficient and durable switch for various industrial uses.

Product Information

Standard Information

• Brand: Honeywell
• MPN: BZE6-2RN4

Technical Specifications

• Application: For packaging equipment, textile machinery, and conveyors
• Voltage Rating: 125/250/480/600 VAC, 125/250 VDC
• Amperage Rating: 0.25 to 15 A
• Connection Type: 1/2-14 NPT
• Contact Configuration: 1NO-1NC, SPDT
• Operating Temperature: -32 to 71 deg C
• Enclosure: NEMA 1/3/4/IP66
• Material: Die Cast Zinc
