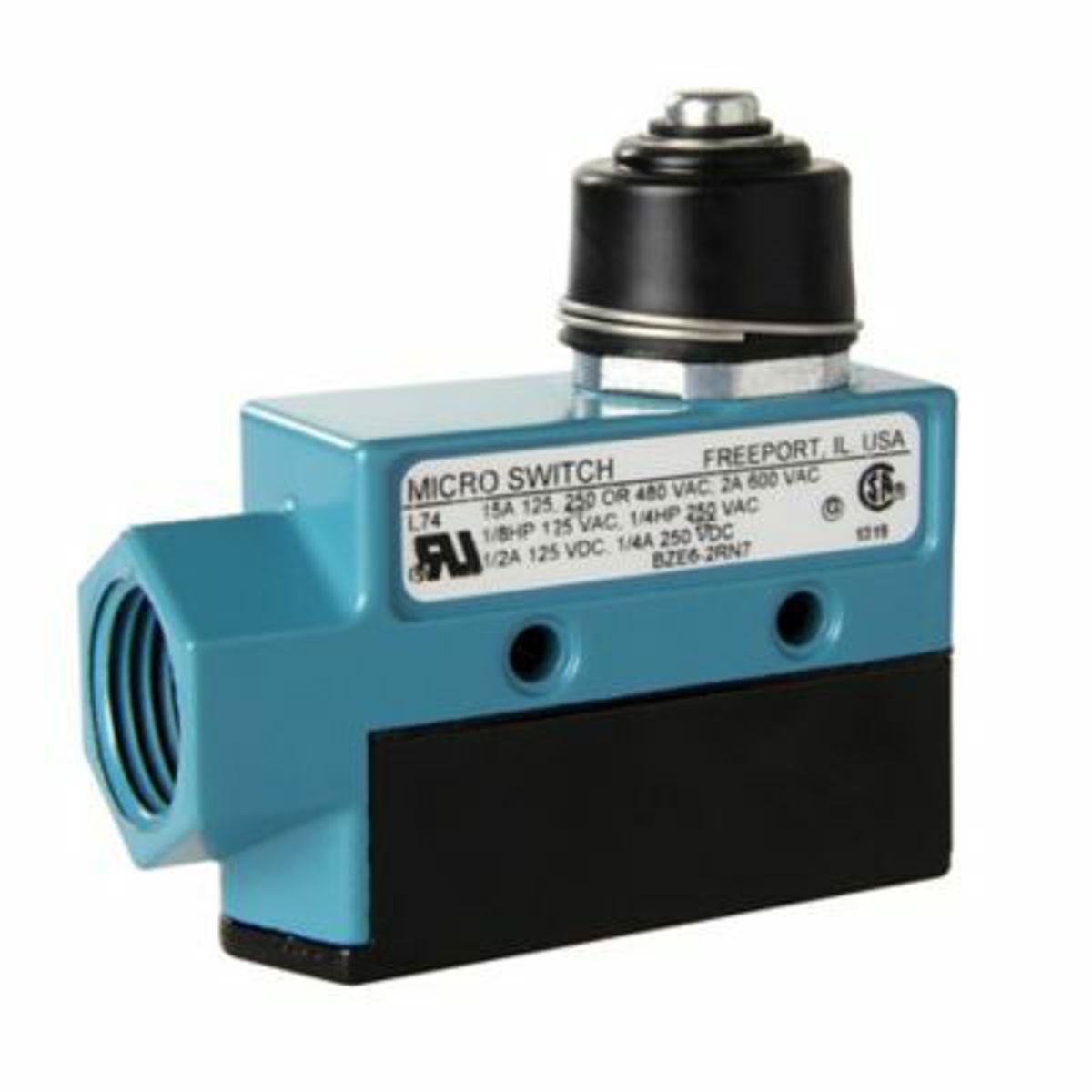

Honeywell BZE6-2RN-F3 MICRO SWITCH E6/V6 Series Medium-Duty Limit Switch, Top Plunger Actuator, 1NC 1NO SPDT Snap Action

Product Description

The Honeywell BZE6-2RN-F3 is a medium-duty limit switch designed for a variety of applications. This switch operates on multiple voltage levels including one hundred twenty-five, two hundred fifty, four hundred eighty, and six hundred VAC, as well as one hundred twenty-five and two hundred fifty VDC. It supports current ratings from zero point twenty-five to ten amps, making it versatile for different operational needs.

• Durable design suitable for harsh environments
• NEMA rated enclosure for protection against dust and water
• Top plunger actuator for precise operation

Product Highlights

This limit switch is fully potted and designed to withstand various conditions, ensuring reliability and longevity. Its compact design allows for easy installation in tight spaces.

Product Information

Standard Information

• Catalog Number: BZE6-2RN-F3
• Manufacturer: Honeywell

Technical Specifications

• Voltage Rating: 125/250/480/600 VAC / 125/250 VDC
• Amperage Rating: 0.25 to 10 A
• Contact Configuration: 1NO-1NC, SPDT
• Operating Cycles: 5000000 Cycles
• Operating Temperature: -32 to 71 deg C
• Material: Die Cast Zinc
• Power Rating: 1/8 hp
• Size: 77.2 mm L x 25.4 mm W x 44.4 mm H
• Enclosure: NEMA 1/3/4/12/13
• Mounting Type: Side
