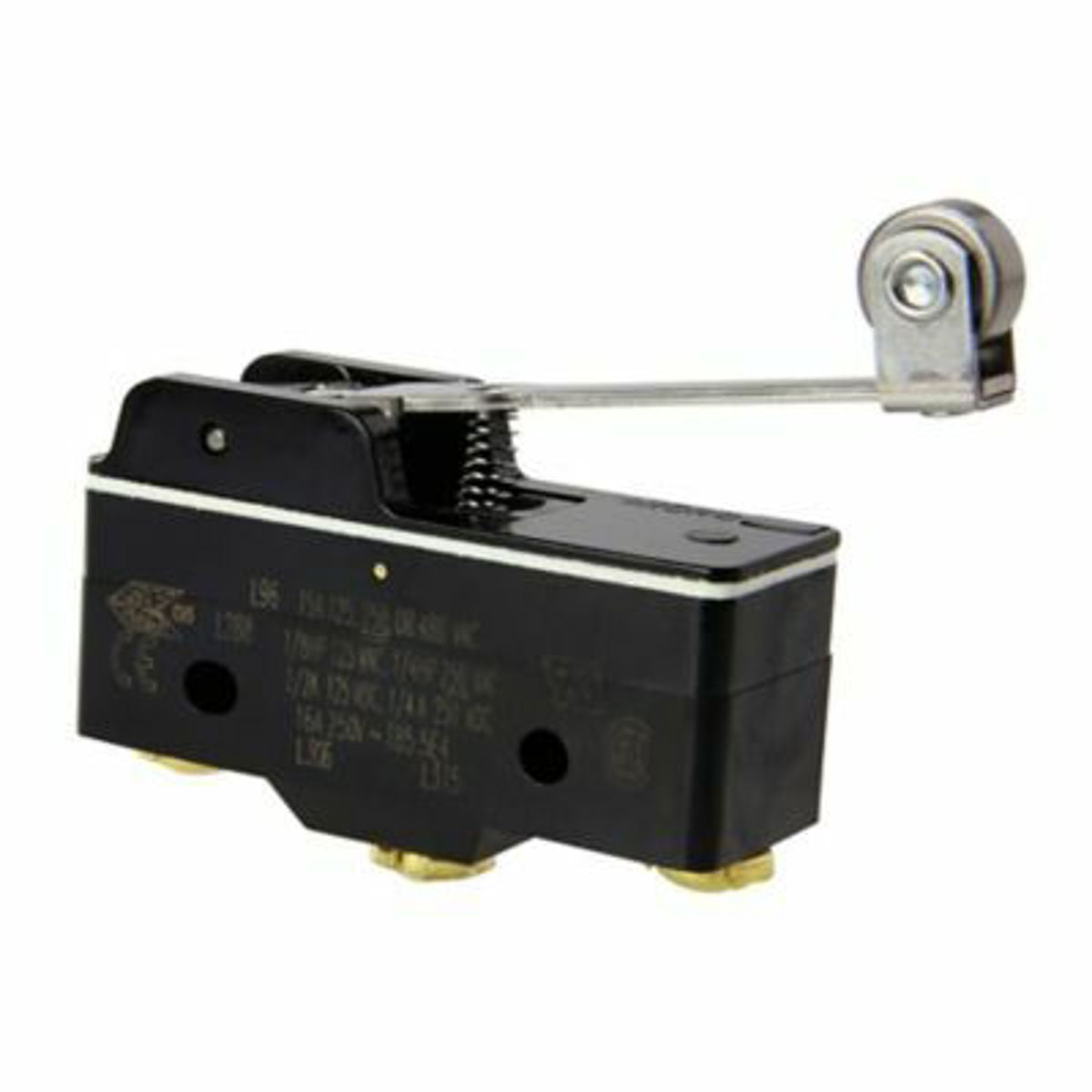

Honeywell BZ-2RQ77 Large Basic Switch Premium Large Standard 15 Amp 2 Inch Length

Product Description

The Honeywell BZ-2RQ77 is a high-quality large basic switch designed for reliable performance in various applications. It features a robust phenolic housing and a versatile SPDT contact configuration.

• Rated for 15 amps with a voltage of 250 VAC.
• Compact dimensions and snap action mechanism for precise operation.
• Operates effectively within a temperature range of -55 to 85 degrees Celsius.

Product Highlights

This switch is suitable for irrigation systems, medical equipment, and more, providing reliable performance under demanding conditions. It is constructed with durability and safety in mind, meeting numerous international standards.

Product Information

Standard Information

• Brand: Honeywell
• MPN: BZ-2RQ77

Technical Specifications

• Series: BZ Series
• Actuator Type: Overtravel Plunger
• Mounting Type: Panel
• Enclosure: IP64
• Certifications: CE, CSA, UL
• Operating Cycles: 20 million cycles
• Contact Rating: 0.5 A at 125 VDC
• Operating Force: 255 to 368 gf
