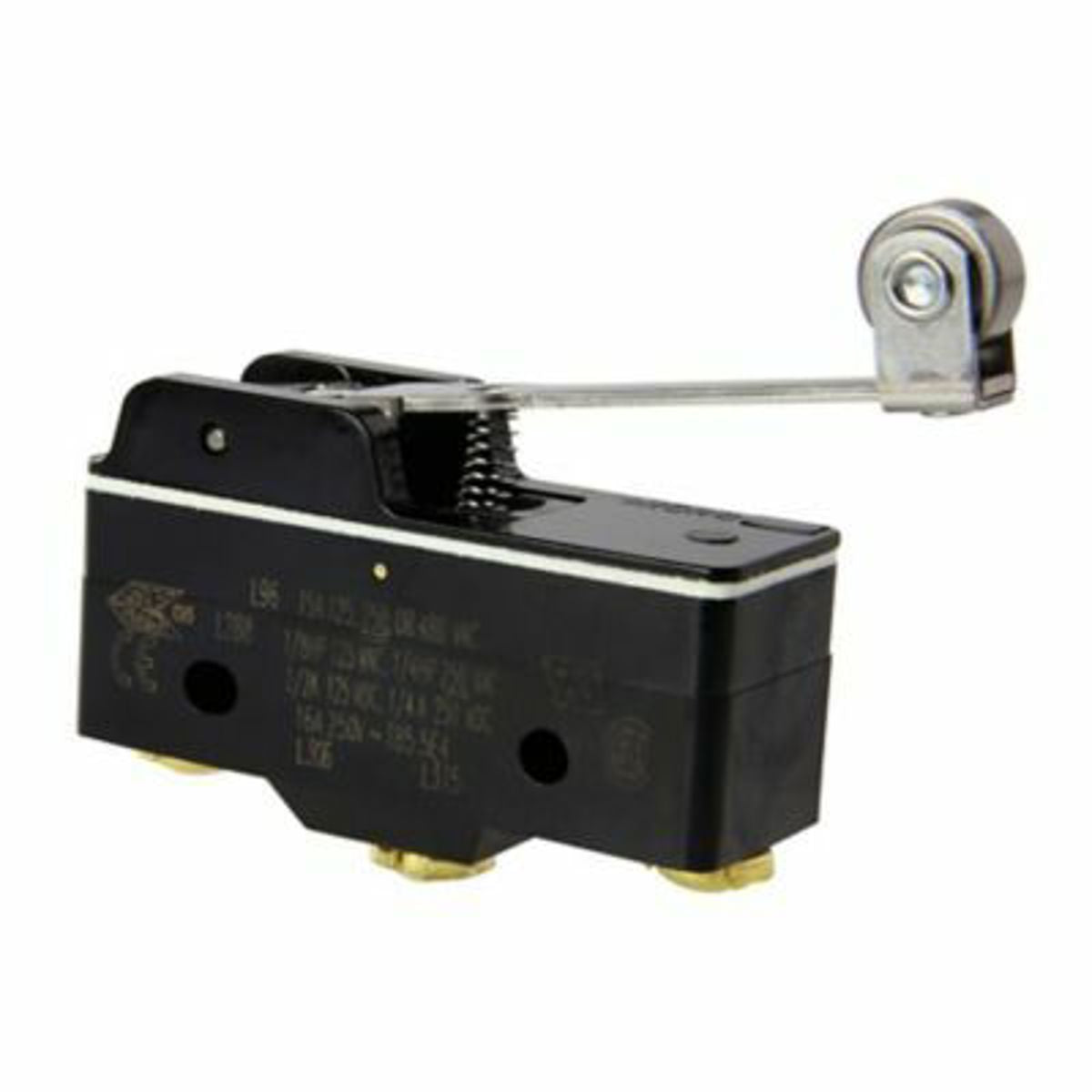

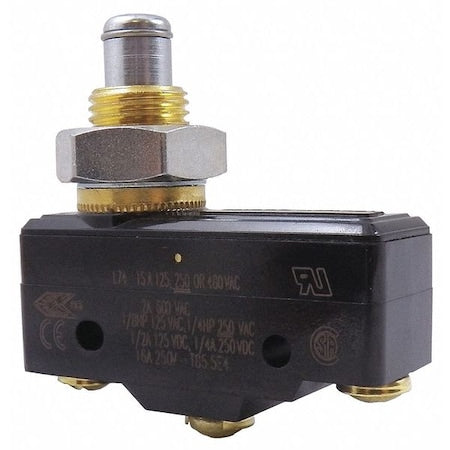

Honeywell BZ-2RQ66 Large Basic Switch 15a 250v

Product Description

The Honeywell BZ-2RQ66 Large Basic Switch combines reliability and efficiency. This single-pole, double-throw switch operates at 15 amps and 250 volts. It is designed for various industrial applications including HVAC equipment, irrigation systems, and office equipment.

• Single-pole double-throw (SPDT)
• 15 amps at 250 volts
• Durable and reliable for long-term use

Product Highlights

Ideal for industrial applications, this switch features a compact design for limited space environments and is shock and vibration-resistant.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: BZ-2RQ66
• UPC: 78454916785

Technical Specifications

• Item Type: Basic Switches
• Sub Brand: Microswitch
• Dimensions: 2 in L x 0.7 in W x 1 in H
• Actuator: High Overtravel Plunger
• Material: Phenolic
• Operating Force: 9 to 13 oz
• Electrical Ratings: 15 A at 250 VAC, 186.42 VA
• Standards/Approvals: UL E12252 Listed, CSA LR41370 Certified, ENEC, CE Marked
• Operating Cycles: 20,000,000
• Temperature Range: -67 Degrees to 185 Degrees F
