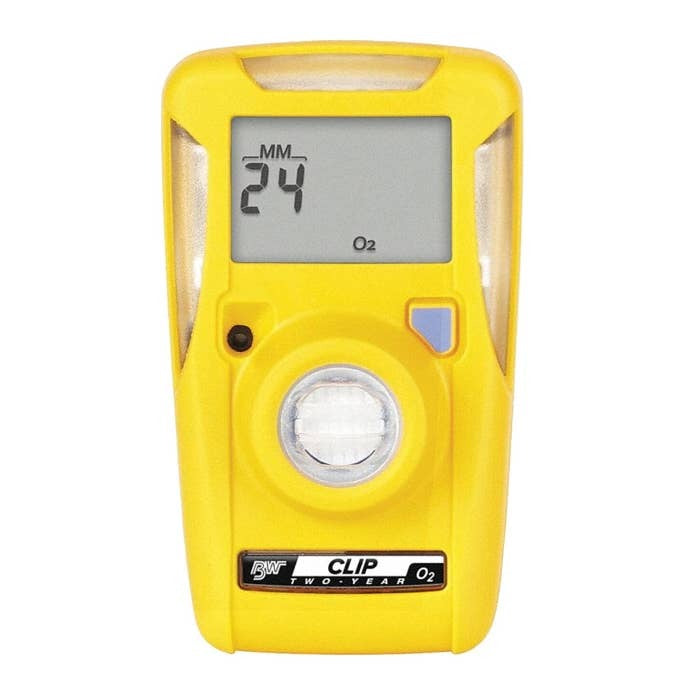

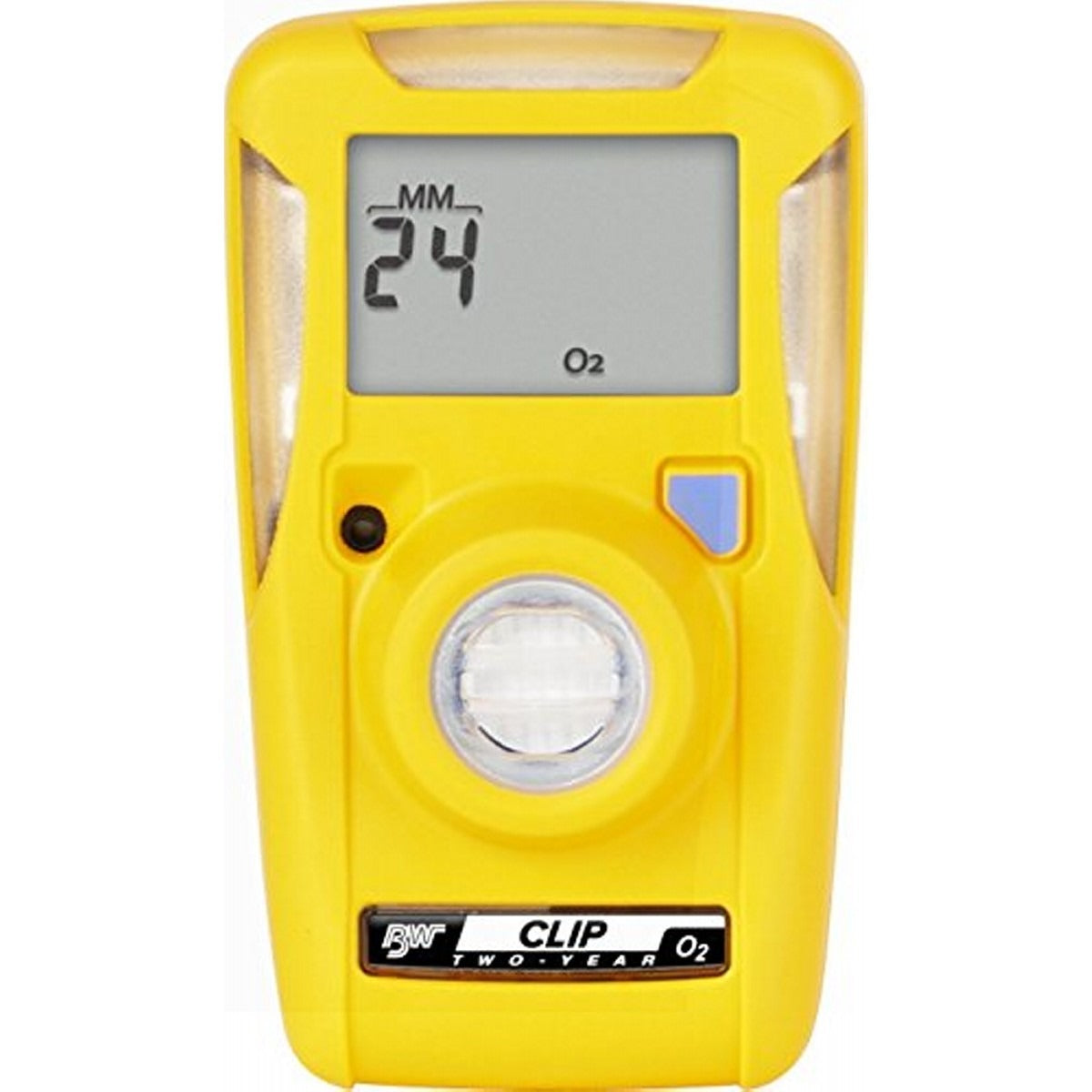

BW Technologies BWC2-X is a maintenance-free single-gas oxygen (O2) monitor that provides up to two years of operation without calibration, sensor or battery replacement. The device uses an electrochemical O2 sensor with default alarm setpoints at 19.5% (low) and 23.5% (high), and offers audible, visual and vibrating alarms. It logs the 35 most recent gas events and bump test results and is compatible with MicroDock II, IntelliDoX and Fleet Manager II.
Maintenance-free two-year operation with electrochemical oxygen sensor; no routine calibration, sensor or battery changes required
Audible (95 dB), wide-angle visual flash and vibrating alarms with default low/high setpoints at 19.5% / 23.5% O2
Automatic logging of up to 35 recent gas events and bump test results; compatible with MicroDock II, IntelliDoX and Fleet Manager II; hibernation mode available
Product Highlights
Maintenance-free two-year single-gas O2 monitor with electrochemical sensor, 19.5%/23.5% alarm setpoints, 35-event log, automated self-tests and IP66/67 ingress protection.
Product Information
Standard Information
Brand: BW TECHNOLOGIES
Manufacturer Part Number: BWC2-X
Country of Origin: Mexico
Technical Specifications
Brand
BW Technologies
MPN
BWC2-X
Product Type
Single Gas Monitor
Gas Type
Oxygen (O2)
Measuring Range
0-25% by volume
Default Alarm Setpoints
Low 19.5% vol / High 23.5% vol
Sensor Type
Electrochemical
Alarm Types
Audible, Visual (wide-angle flash), Vibration
Audible Alarm Level
95 dB
Data Logging
Automatic logging of 35 most recent gas events and bump test results
Event Log Capacity
35 events
Automated Self-Test
Yes (battery, sensor and electronics)
Typical Battery Life
Two years (maintenance-free service life)
Power Source
Battery powered (no battery replacement required during service life)
Ingress Protection
IP66/67
Hazardous Location Approvals
cULus Class I Div.1; Class I Zone 0 Group IIC; ATEX; IECEx
Compatibility
MicroDock II, IntelliDoX, Fleet Manager II (Honeywell Safety Suite)
Hibernation Mode
Available with case accessory or IntelliDoX
Operating Temperature
-20 to 50 °C (-4 to 122 °F)
Operating Humidity
5% - 95% RH (non-condensing)
Dimensions
Height 3-3/4" x Width 2" x Depth 1-5/8"
Weight
0.34 lb
Included Accessories
Stainless steel alligator clip, calibration/test cap and hose, manual
