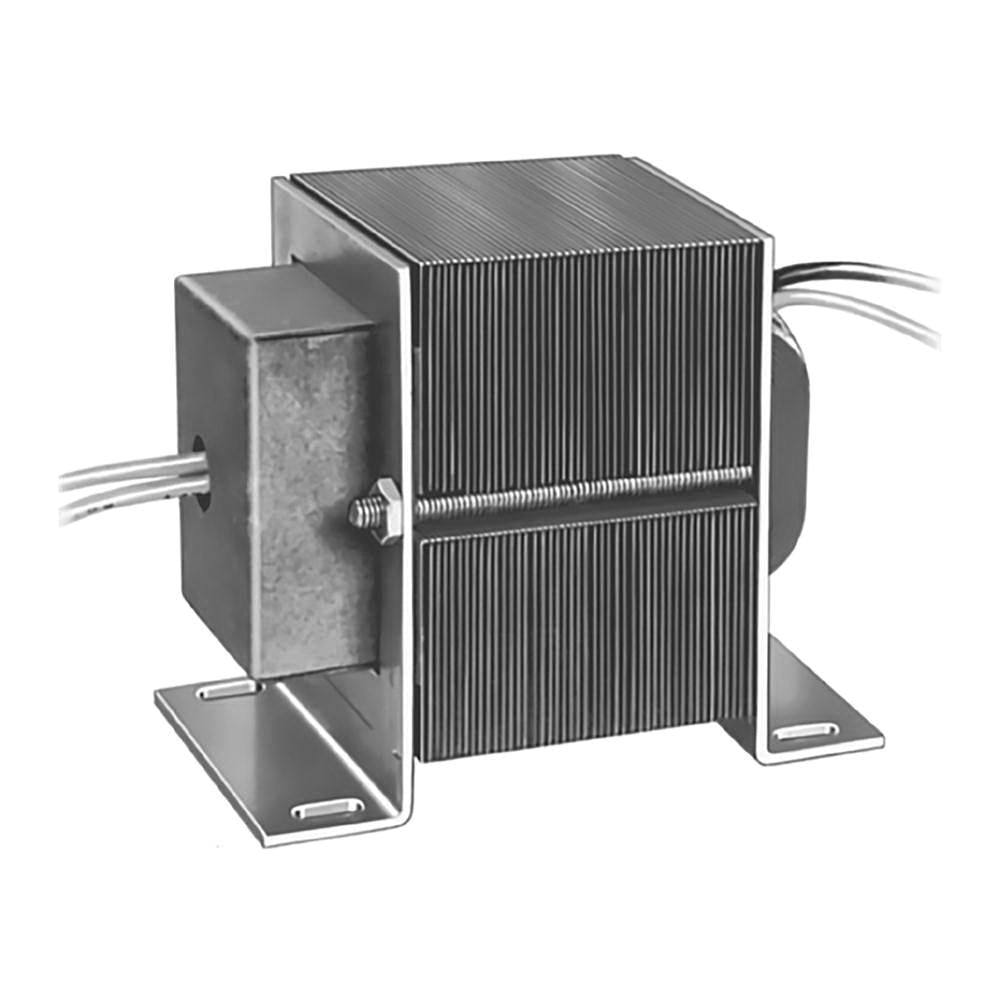

Honeywell AT88A1005/U foot mount transformer with 12 inches lead wire 120V 75VA

Product Description

The HONEYWELL AT88A1005/U is a foot mount transformer designed for various electrical applications. It converts 120 VAC to 24 VAC, providing a 75 VA power rating. This transformer features 12-inch lead wires for primary connections and is suitable for applications such as air conditioning circuits. Its robust design ensures reliable power conversion for systems requiring a 24 VAC output.

• Foot mount design for stable installation.
• Provides color-coded leadwires for primary connections and screw terminals for secondary connections.
• Meets National Electrical Code Class 2 Not Wet and Class 3 Wet Requirements and is UL Listed Under UL 1585.

Product Highlights

This 75 VA transformer converts 120 VAC to 24 VAC, featuring a foot mount and 12-inch lead wires.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: AT88A1005/U

Technical Specifications

• Manufacturer: Honeywell
• Brand: Honeywell
• Model Number: AT88A1005/U
• MPN: AT88A1005/U
• Lead Wire Length: 12 inches
• Input Voltage: 120V
• VA Rating: 75 VA
• Approvals: UL 1585, NEC Class 2 Not Wet, Class 3 Wet
• Product Type: Transformer
• UPC: 085267036368
• Connection Type: Lead Wire
• Frequency: 50/60 Hz
• Mounting Type: Foot
• Output Voltage: 26.5 V
• Operating Temperature: -20 to 105 deg F
