Product Description

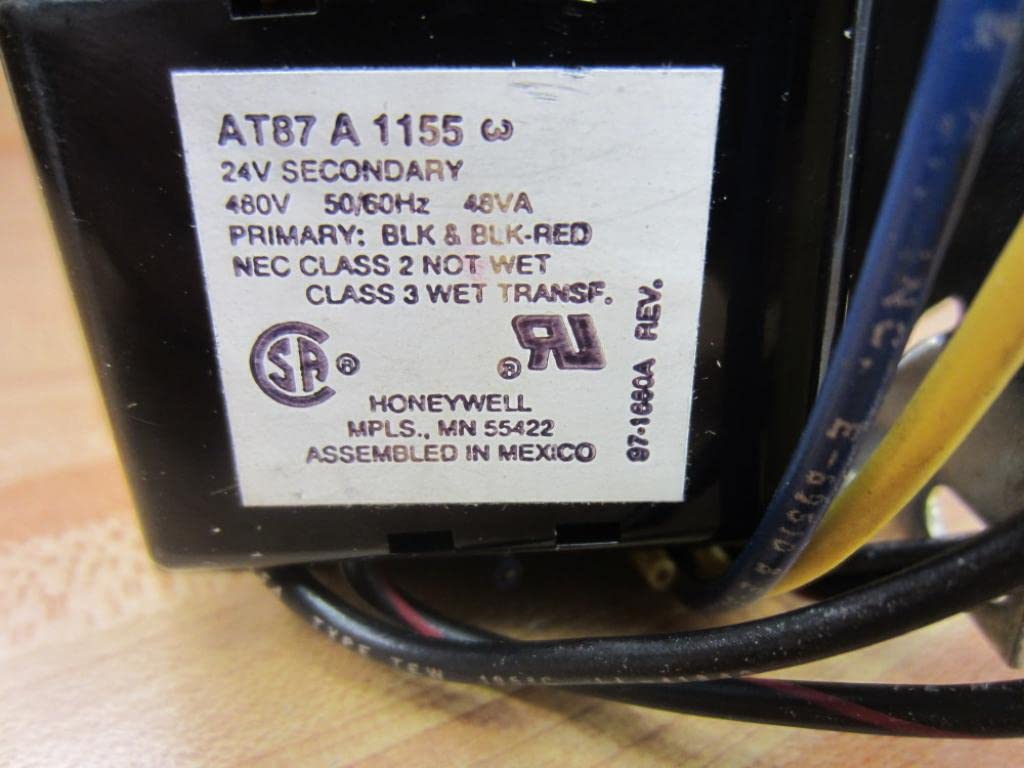

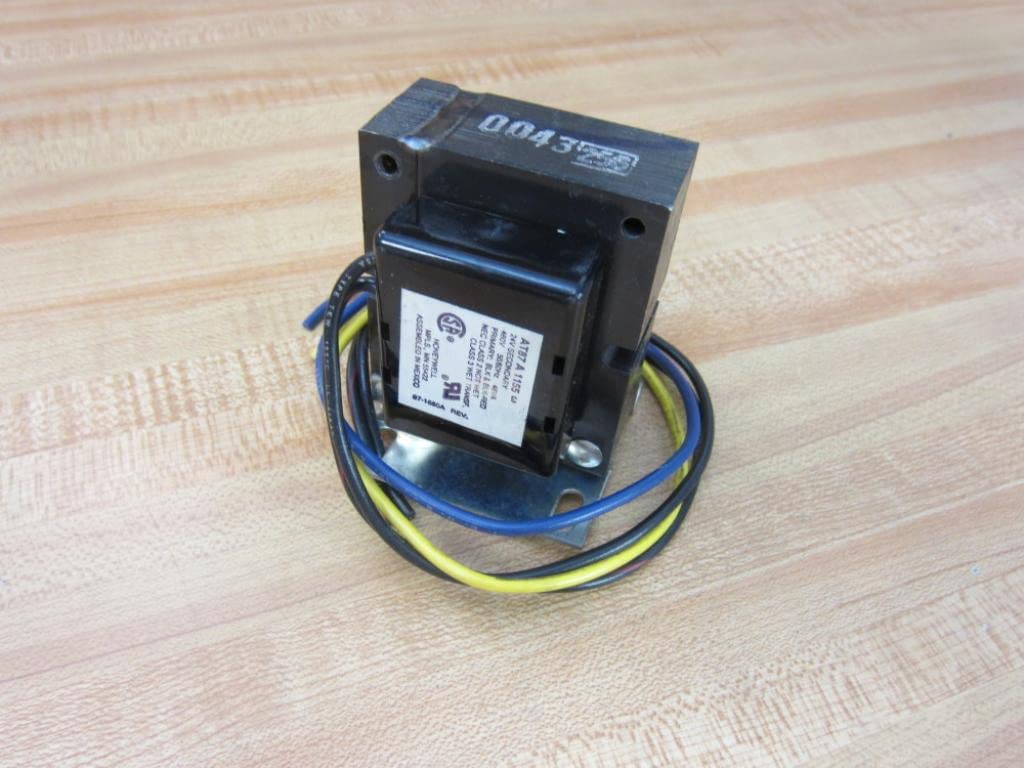

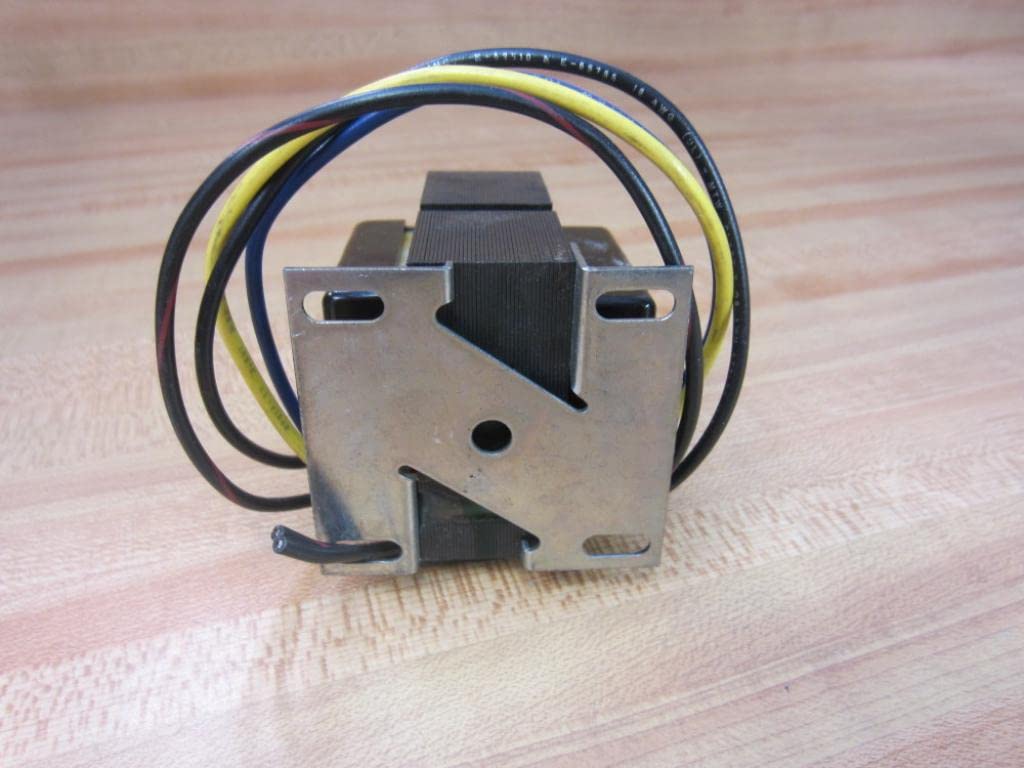

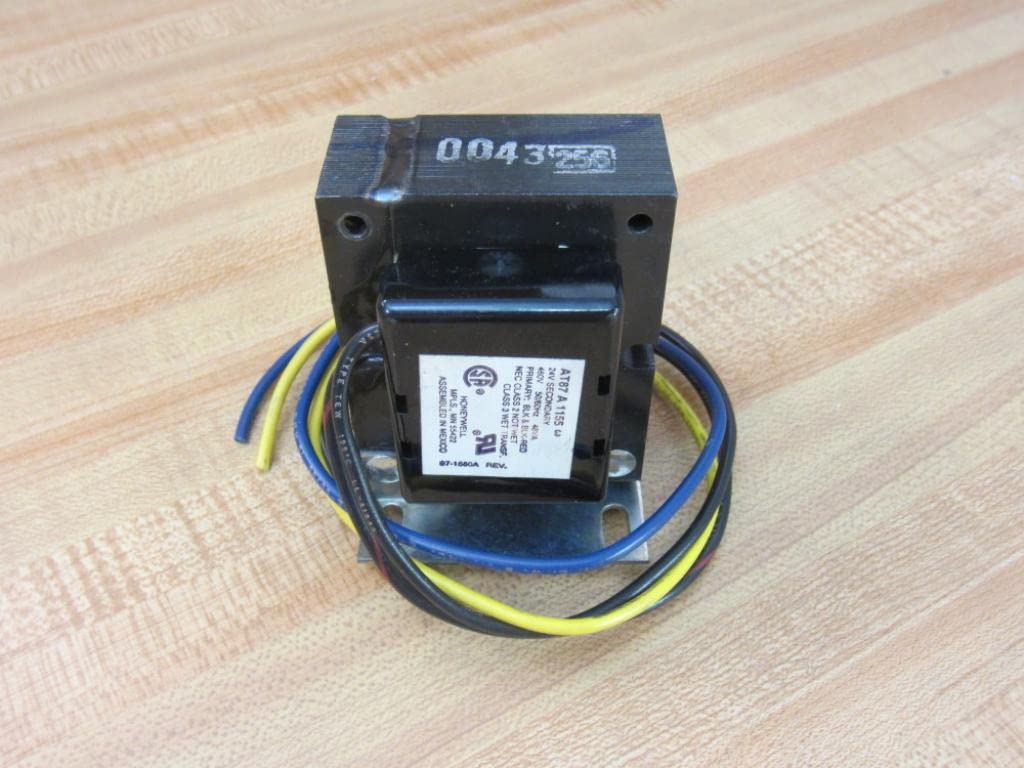

The Honeywell AT87A1155 Transformer is designed to meet energy limiting overload protection needs, ensuring reliable operation. It operates at 480 VAC and features 12 lead wires for easy connections. This transformer is ideal for applications requiring dependable energy transfer.
- Meets NEC Class 2 not wet Class 3 wet and UL 1585 requirements
- Overload protection provided
- Color-coded lead wires for primary connections
Product Highlights
Suitable for powering 24V air conditioning circuits and other similar applications that do not exceed the stated ratings. The unit is marked NEMA Type E and includes built-in protection against primary winding burnout.
Product Information
Standard Information
-
Brand: Honeywell
-
Model: AT87A 1155
-
Manufacturer: Honeywell Residential
Technical Specifications
-
Series: AT87A
-
Dimensions: 2-15/16 inches L x 2-7/32 inches W
-
Power Rating: 48 VA
-
Mounting Type: Foot Mount
-
Enclosure Type: NEMA DC 10-2009
-
Primary Voltage: 480 VAC
-
Frequency: 50/60 Hz
-
Secondary Voltage: 26.5 VOC
-
Electrical Connection: 12 Inch Leadwires Primary, 12 Inch Leadwires Secondary
