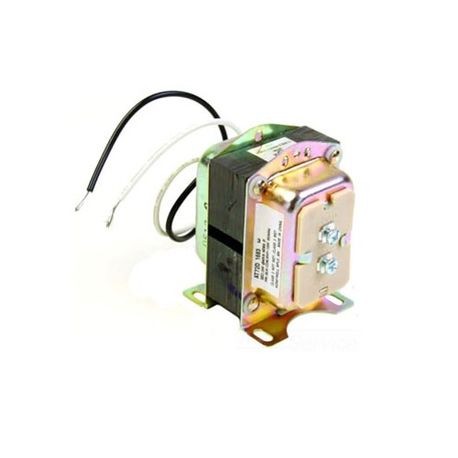

Honeywell AT72D1683/U Transformer, 40 VA, 24 VAC

Product Description

The Honeywell AT72D1683/U is a transformer designed to convert 120 VAC to 24 VAC. This general-purpose transformer is suitable for powering various low voltage systems, including thermostats, gas valves, and relays. It is versatile in installation with options for foot mounting, plate mounting, or clamp mounting.

• Provides color-coded lead wires for primary connections
• Energy limiting feature meets NEMA standards
• UL Certified for safety compliance

Product Highlights

Ideal for HVAC applications, it efficiently delivers 40 VA power with a secondary voltage of 26.5 VAC.

Product Information

Standard Information

• Brand: Honeywell
• Power Rating: 40 VA

Technical Specifications

• Primary Voltage: 120 VAC
• Secondary Voltage: 26.5 VAC
• Frequency Rating: 50/60 Hz
• Dimensions: 3-7/32 inches H x 2-7/32 inches W x 3-1/16 inches D
• Mounting Type: Universal
• Lead Wires: Nine inches for primary, two screw terminals for secondary
• Temperature Rating: -20 to 105 degrees Fahrenheit
• Approvals: CSA Certified, UL Listed
