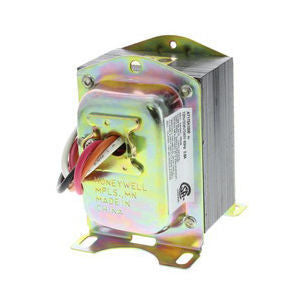

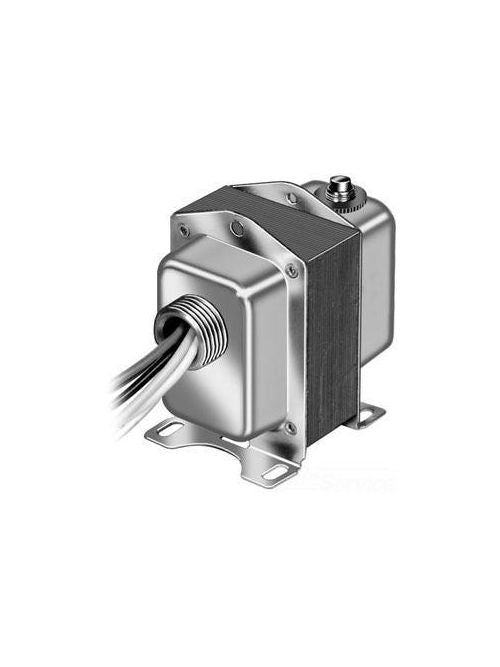

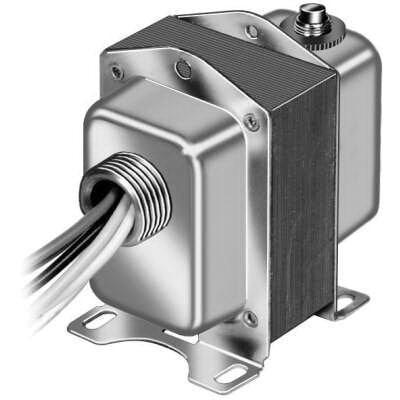

Honeywell AT175A1008 75 VA Transformer 120/208/240V Universal Mount

Product Description

The Honeywell AT175A1008 is a versatile 75 VA transformer designed to operate on 120V, 208V, or 240V primary voltage. This universal mount transformer is suitable for a wide variety of applications including HVAC systems and power distribution setups. It ensures reliable operation in residential, commercial, and industrial settings.

• Primary Voltage: 120/208/240 VAC
• Secondary Voltage: 27.5V
• Frequency: 60 Hz

Product Highlights

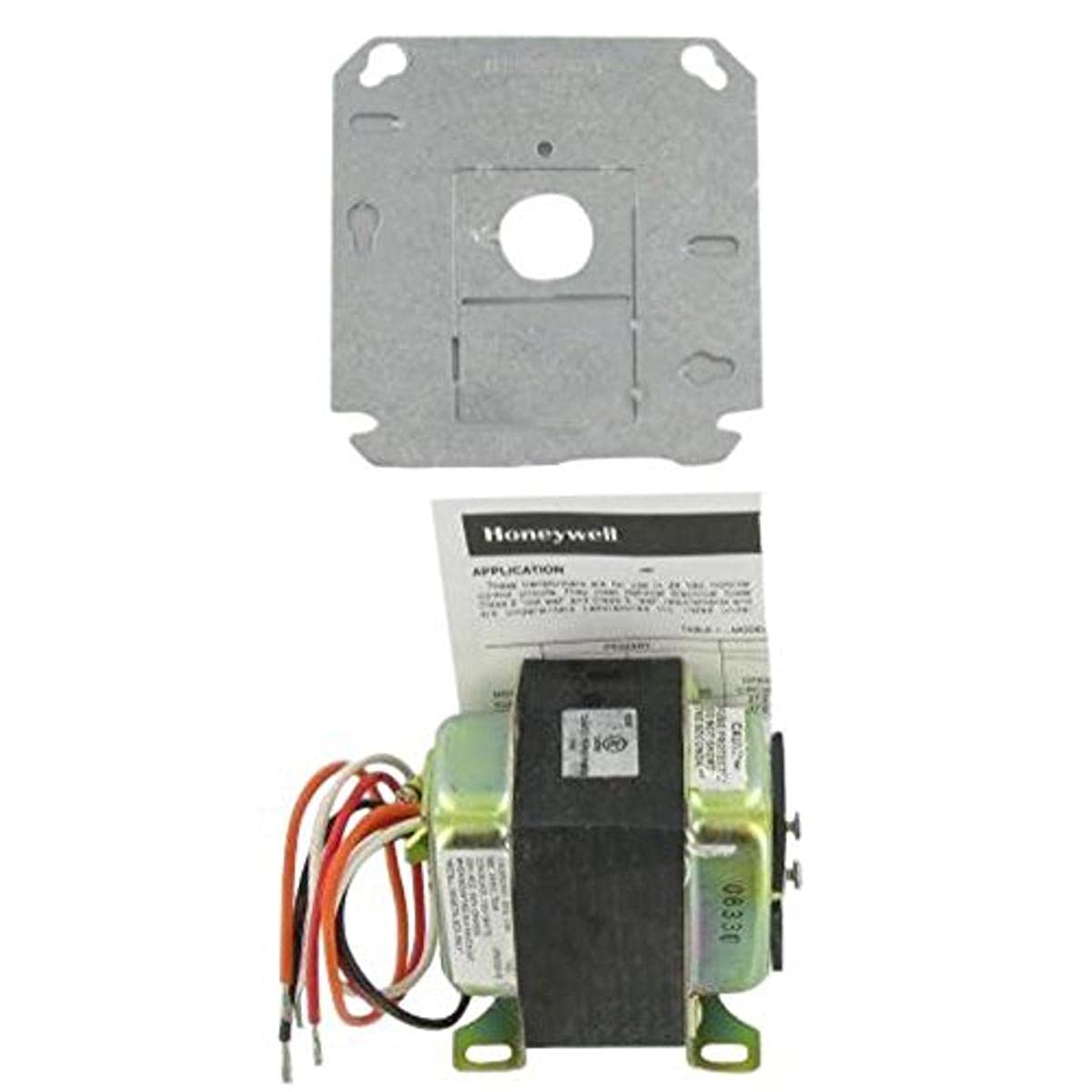

This transformer is foot-mounted, plate-mounted on 2x4 or 4x4 inch outlet boxes, clamp-mounted using outlet box knockouts, or panel-mounted. It features color-coded lead wires for easy primary connections and screw terminals for secondary connections. It is ideal for powering 24V circuits in HVAC control systems and other low voltage applications.

Product Information

Standard Information

• Brand: Honeywell
• Series: AT175A
• Part Type: Transformer

Technical Specifications

• Power Rating: 75 VA
• Primary Voltage: 120/208/240 VAC
• Secondary Voltage: 27.5V
• Frequency: 60 Hz
• Dimensions: 3-3/16 x 2-3/8 x 3-5/8 inches
• Mounting Type: Universal
• Enclosure Type: NEMA DC 10-2009
• Certifications: UL Listed, CSA Certified
