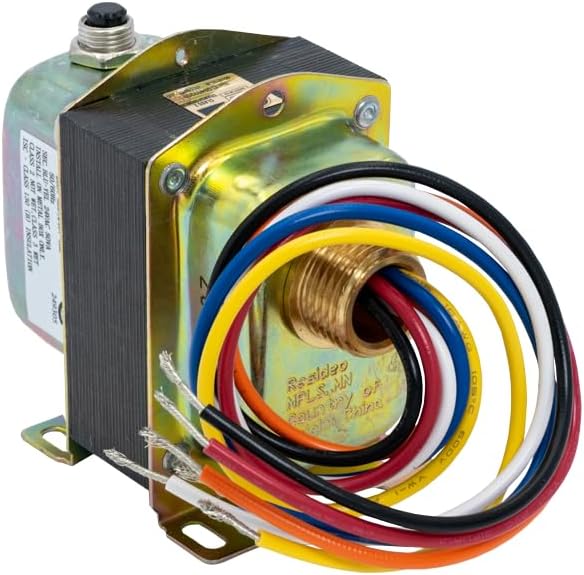

Honeywell AT150F1022 Voltage Transformer 50 VA 120/208/240 VAC Primary 27.5 VOC Secondary 60 Hz

Product Description

The Honeywell AT150F1022 Voltage Transformer is designed for industrial and home improvement uses. This transformer offers a primary voltage of 120/208/240 VAC and a secondary voltage of 27.5 VOC. It is capable of supporting systems that require 50 VA power and operates at 60 Hz frequency.

• Primary voltage: 120/208/240 VAC
• Secondary voltage: 27.5 VOC
• Power rating: 50 VA

Product Highlights

The Honeywell AT150F1022 transformer is suitable for residential applications and meets UL and CSA standards. It is a universal mount transformer, making it versatile and easy to install.

Product Information

Standard Information

• Brand: Honeywell
• Model: AT150F1022

Technical Specifications

• Voltage: 120/208/240 VAC Primary, 27.5 VOC Secondary
• Power Rating: 50 VA
• Frequency: 60 Hz
• Mounting Type: Universal
• Enclosure Type: NEMA DC 10-2009
• Dimensions: 3-3/16 inches L x 2-3/16 inches W x 3-5/8 inches D
• Electrical Connection: 9 Inch Leadwires Primary, (2) Screw Terminals Secondary
• Compliance: UL Listed, CSA Certified
