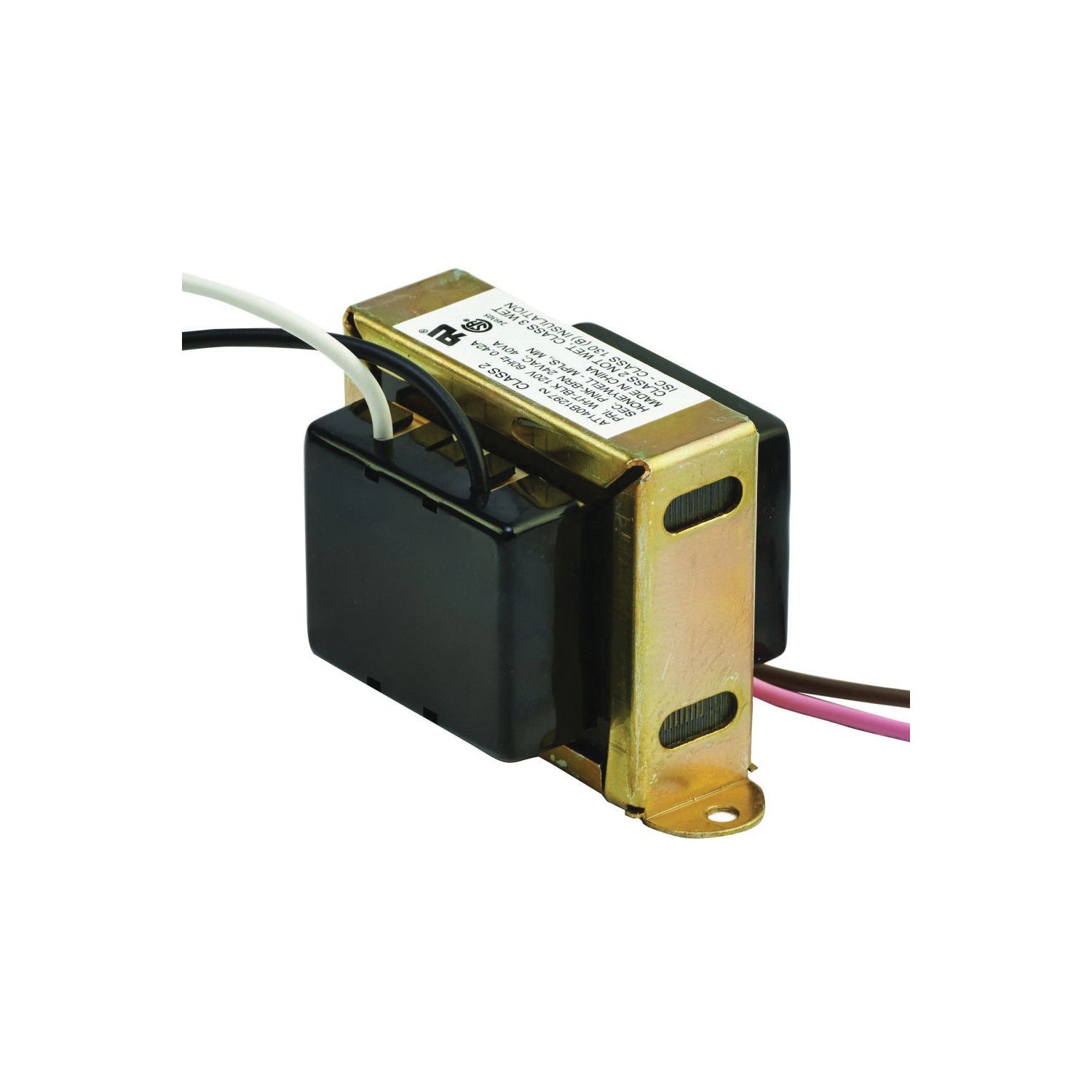

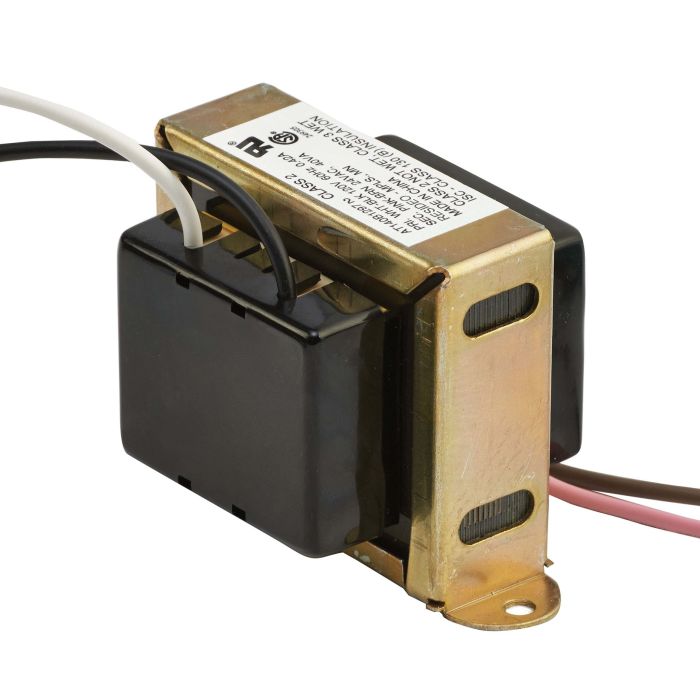

Honeywell AT140B1214/U Transformer 40 VA

Product Description

The Honeywell Transformer, model AT140B1214/U, is designed for converting 120, 208, or 240 VAC into 24 VAC. This transformer is foot-mounted and delivers a power rating of forty volt-amperes (VA). It is suitable for various general-purpose applications.

• Input Voltage: 120, 208, 240 VAC
• Output Voltage: 27 VAC
• Temperature Range: -20 to 105 degrees Fahrenheit

Product Highlights

This product meets the National Electrical Code Class 2 not wet and Class 3 wet requirements while being Underwriters Laboratories (UL) listed.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: AT140B1214/U

Technical Specifications

• Application: General Purpose Applications
• Power Rating: 40 VA
• Frequency Rating: 60 Hz
• Dimensions: 3-1/2 in W x 1-3/4 in D x 1-11/16 in H
• Mounting Type: Footed
• Secondary Voltage: 27 VAC
• Standards/Approvals: CSA Certified, UL File No. E14881, NEC Class 2 not wet Class 3 wet
• Includes: Plastic End Caps
• Domestic/Import: Import
