Product Description

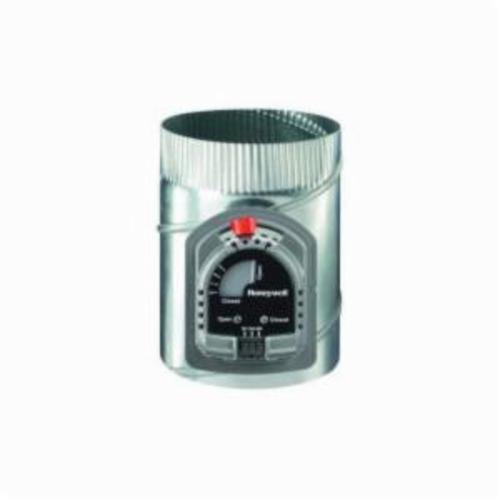

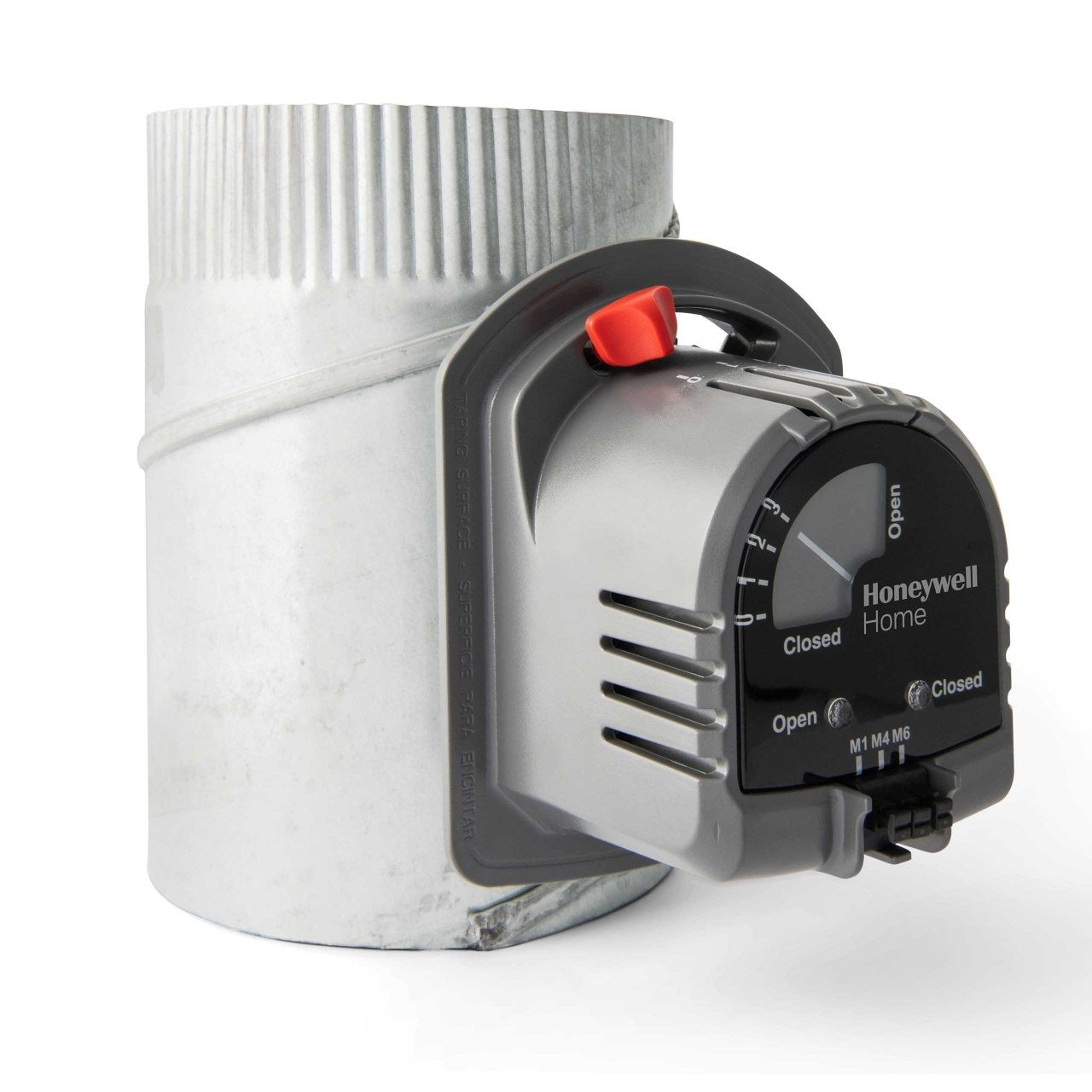

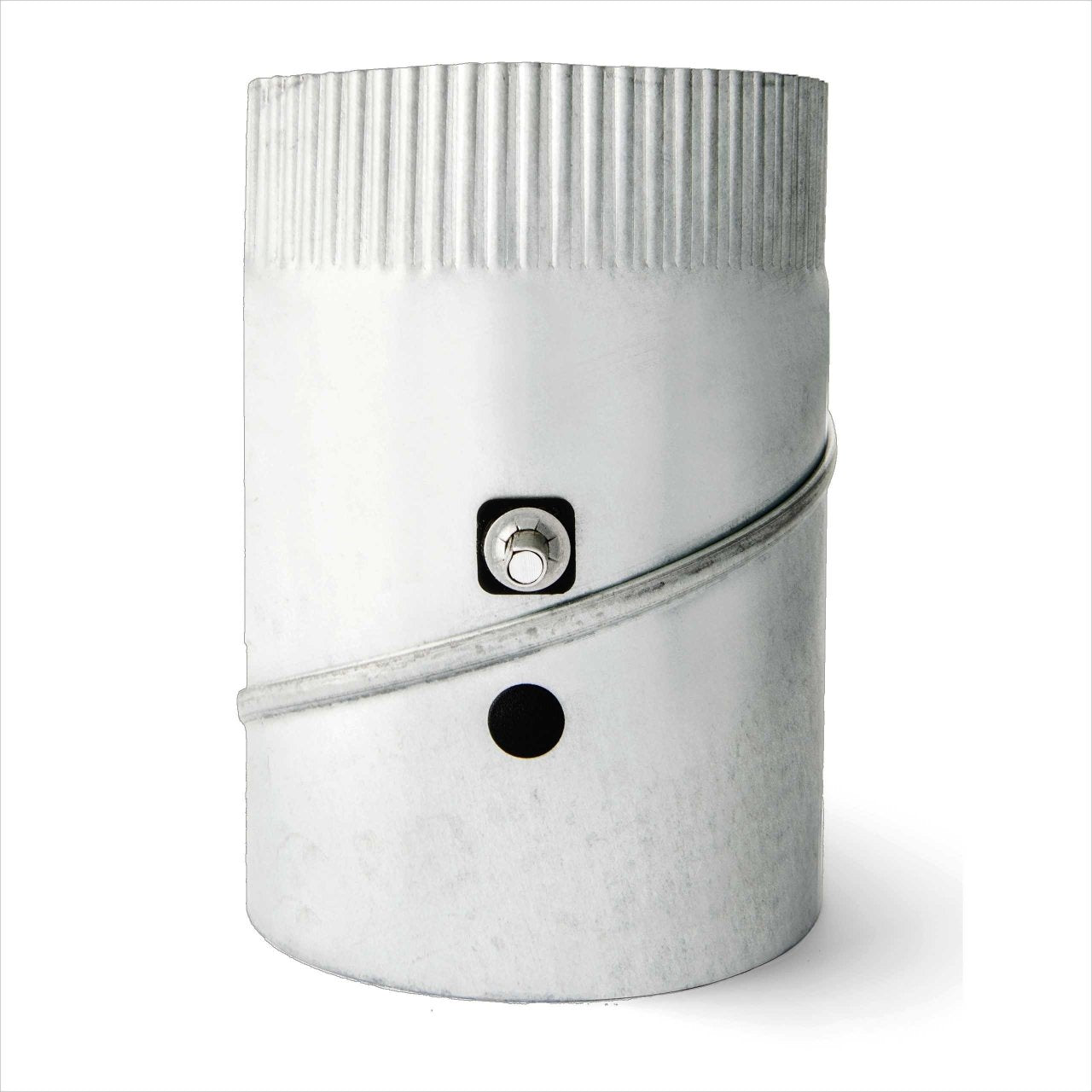

The HONEYWELL ARD8TZ/U is an 8" Truezone 2-Wire Motorized Zone Damper. This automatic round damper features a power-close, spring-open design to ensure minimal leakage while controlling circulating air in heating, cooling, and ventilation systems. It is made of galvanized steel with a single-blade damper.
- Features galvanized steel with single-blade damper, which closes off tightly against gasket for minimal leakage
- Designated as power closed/spring return open damper for use with Honeywell zoning systems
- Can be field-converted when used as an independent zone or for fresh air intake
Product Highlights
The Honeywell ARD8TZ/U damper is designed for use with Honeywell zoning systems and can be field-converted for independent zone or fresh air intake applications.
Product Information
Standard Information
-
Brand: HONEYWELL
-
Manufacturer Part Number: ARD8TZ/U
-
Country of Origin: US
Technical Specifications
-
Amperage Rating: 6 A
-
Country of Origin: MX
-
Domestic/Import: Import
-
Electrical Connections: M1-Power/M6-Common/M4 Terminal
-
Finish: Galvanized
-
Material: Steel
-
Motor Type: Power Closed, Spring Open
-
Rotation Angle: 90 deg
-
Series: ARD
-
Shape: Round
-
Size: 8 in
-
Temperature Rating: 40 to 140 deg F
-
Timing: 30 sec
-
Type: Single Blade
-
Voltage Rating: 24 VAC
-
Frequency: 60Hz
-
Damper Duct Shape Type: Round
-
Damper Type: Zone
-
Application: Zone Damper
-
Damper Material: Galvanized Steel
-
Activation: Electric
-
Actuator Housing Material: Molded Plastic
-
Actuator Power Consumption: 8 VA
-
Actuator Torque: 71 in-oz
-
Blade Material: Galvanized Steel
-
Leakage: Less than 1% at 0.5 in WC
-
Position Indicator Included: Yes
-

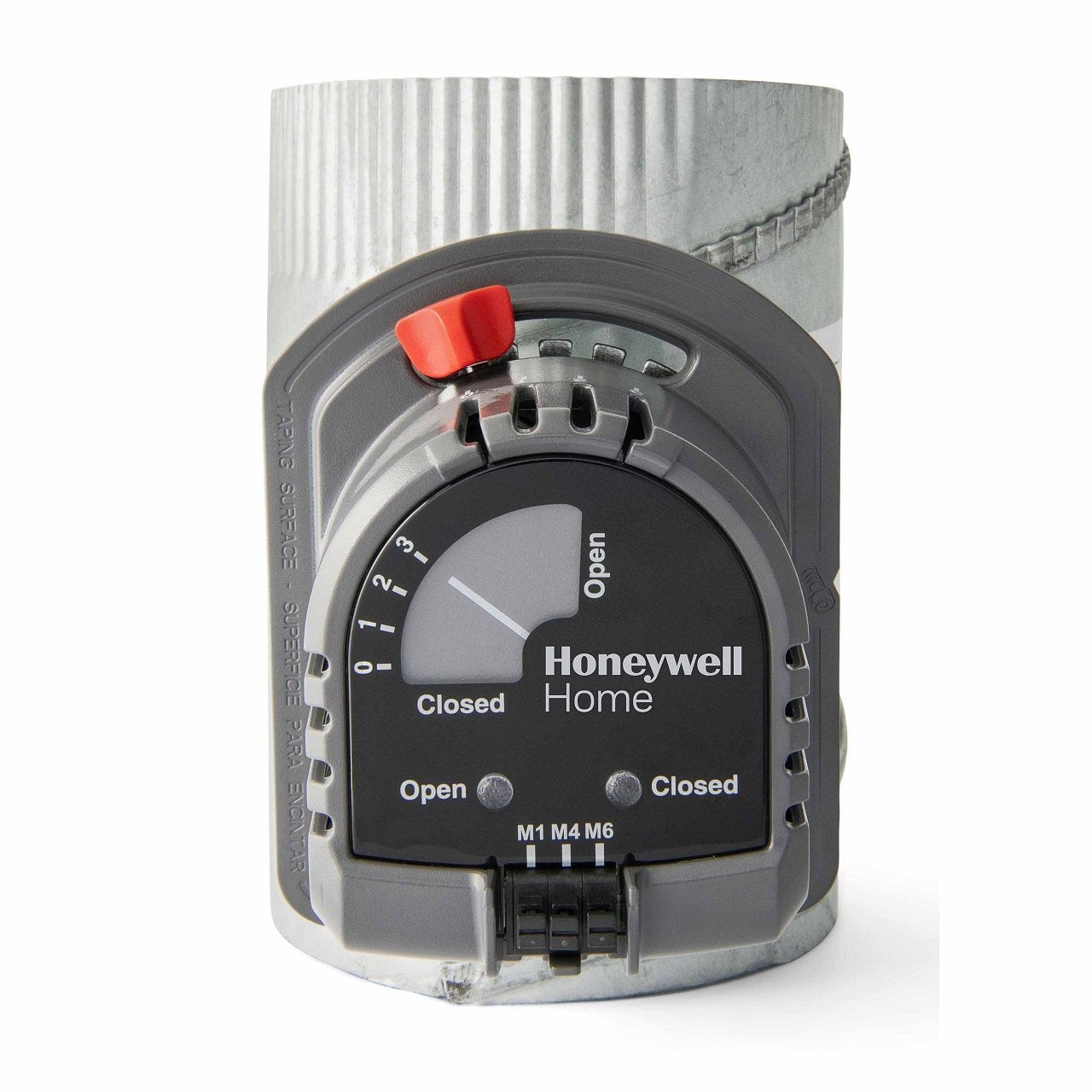

Position Indicator Type: Damper Position Range Stops, LED indication light for open and close
-
Range Stop: Yes
-
Range Stop Options: 4
-
Blade Type: Automatic, Power Closed, Round, Single, Spring Open
-
Height: 4-31/32 in
-
Motor Dimensions: 4-41/64 in L
-
Motor Specifications: 24 VAC, 60 Hz, 8 VA
-
Number of Blades: 1
-
Timing Range: 30 s
-
Torque Rating: 71 in-oz
-
VA Rating: 8 VA
-
Width: 3-61/64 in
-
Diameter (inches): 8
-
Approximate Weight (pounds): 3.80
-
Extended Length: 8.5 Inches
