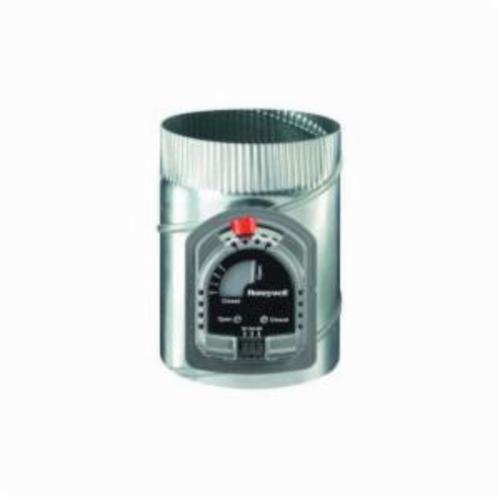

Honeywell ARD8TZ/U Single Blade Automatic Damper, 8 in Dia, Round, 24 VAC, 6 A, 90 deg Rotation

Product Description

The Honeywell ARD8TZ/U is an Automatic Round Damper designed for HVAC systems. This damper features a durable construction and is vital for controlling airflow in heating and cooling applications. It operates on twenty-four volts alternating current and can handle a maximum amperage of six amps. The damper is rated for temperatures ranging from forty to one hundred forty degrees Fahrenheit. With a size of eight inches in diameter and a rotation angle of ninety degrees, it efficiently manages air circulation.

• Galvanized steel construction for durability
• Field-convertible for independent zones or fresh air intake
• Simple two-wire installation

Product Highlights

Constructed with a single blade design, it provides minimal leakage, making it suitable for use in Honeywell zoning systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: ARD8TZ/U

Technical Specifications

• Size: 8 in
• Type: Single Blade
• Shape: Round
• Material: Steel
• Finish: Galvanized
• Voltage Rating: 24 VAC
• Amperage Rating: 6 A
• Temperature Rating: 40 to 140 deg F
• Rotation Angle: 90 deg
• Timing: 30 sec
• Motor Type: Power Closed, Spring Open
