Honeywell ARD16TZ/U 16 Inch TrueZone 2-Wire Motorized Zone Damper 24 V (16 Inch) ARD16TZ/U

Product Description

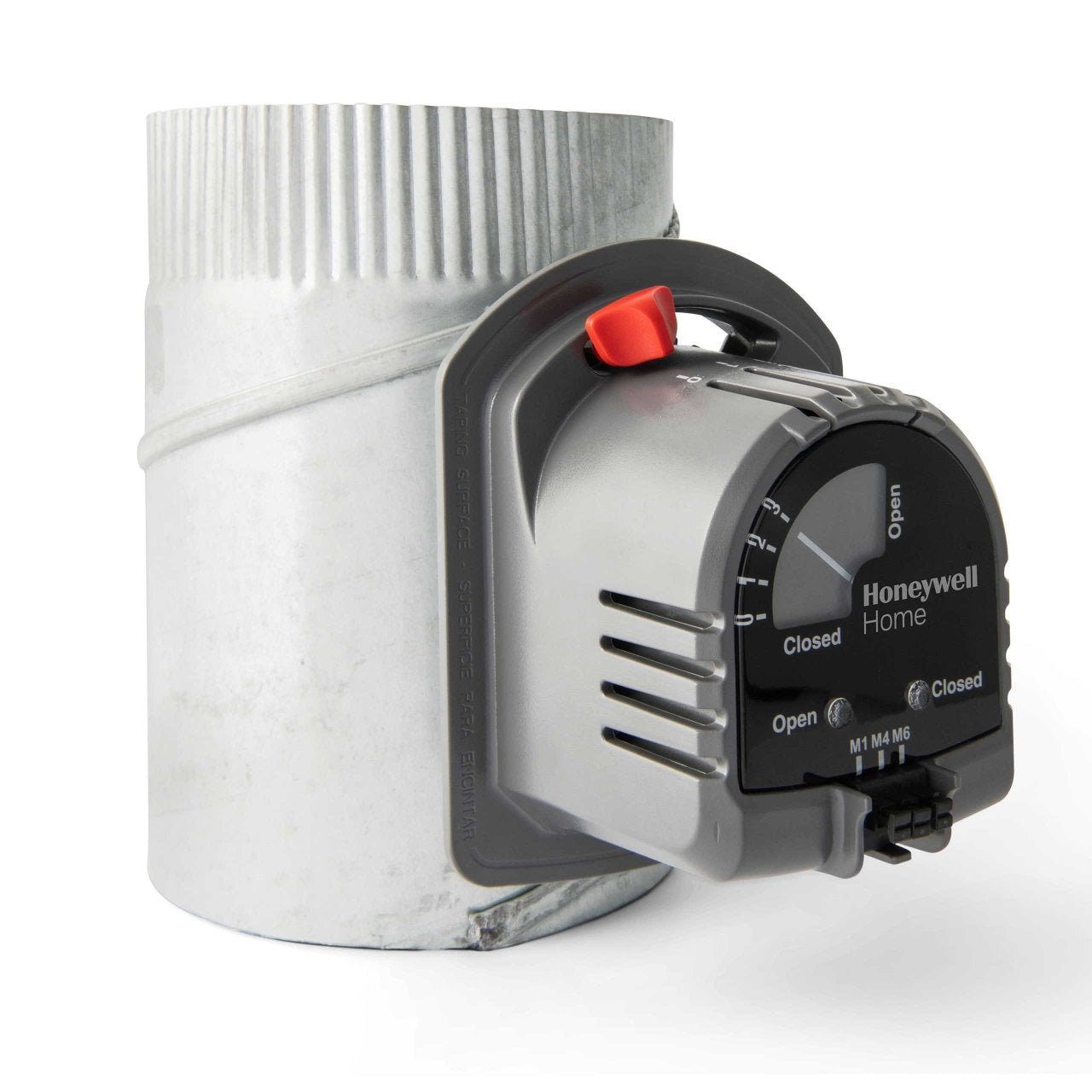

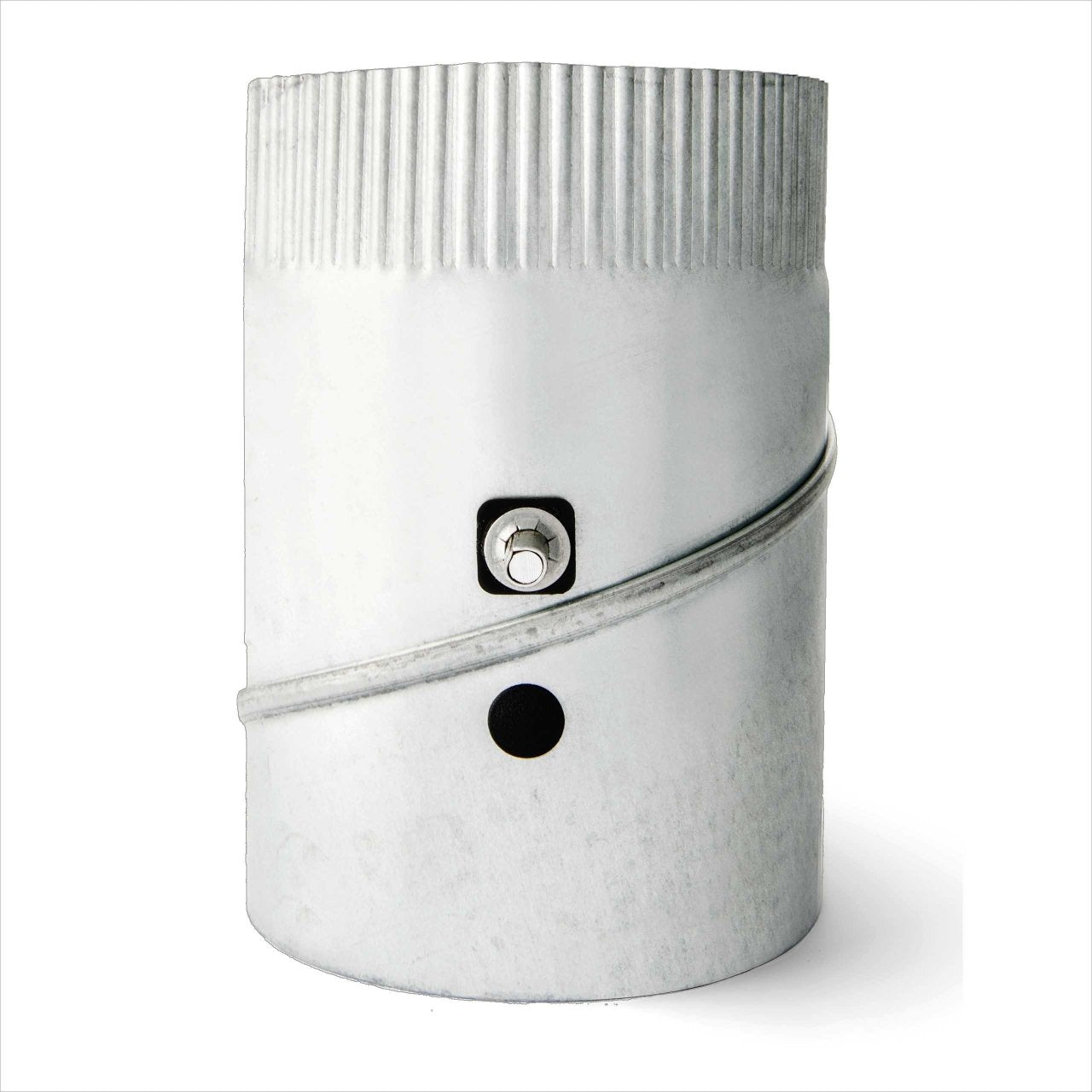

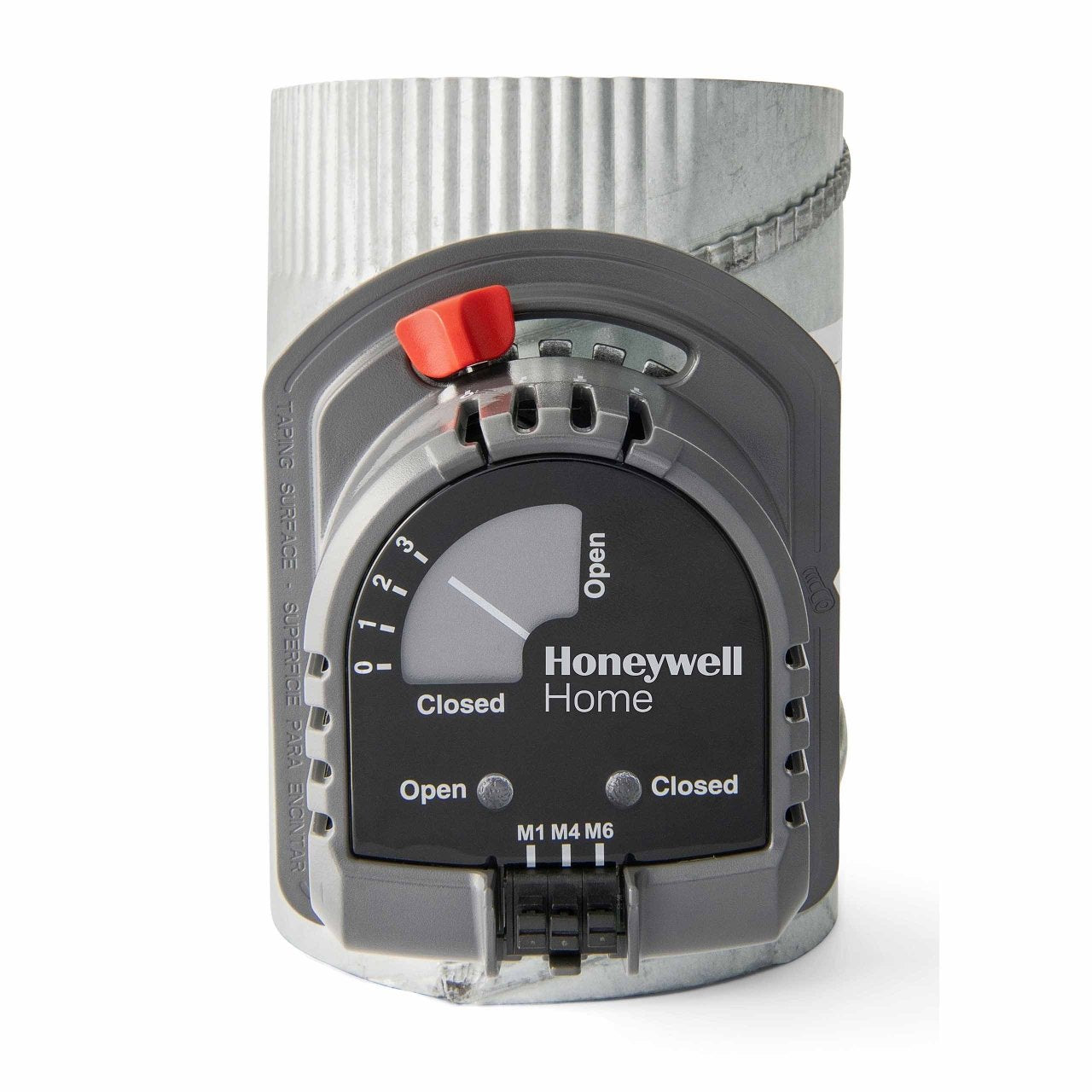

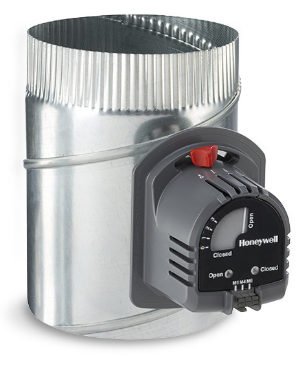

The Honeywell ARD16TZ/U is a 16-inch TrueZone two-wire motorized zone damper for HVAC zoning systems that controls airflow to a single zone. It uses a 24 VAC spring-return actuator (power-closed, spring-open) with simple two-wire installation, a single galvanized steel blade, and gasket sealing for low leakage. The damper provides 90-degree rotation, adjustable range stops, mechanical and LED position indication, and a 6 A motor rating.

• 16-inch round single-blade zone damper with galvanized steel construction and gasket sealing for low leakage
• 24 VAC spring-return actuator (power closed / spring open), two-wire installation, 6 A motor rating, 90° rotation
• Adjustable range stops, mechanical position indicator and LED indication, rated to operate up to 1 in-WC

Product Highlights

16 in TrueZone round zone damper with 24 VAC spring-return actuator, single galvanized blade, 90° rotation and adjustable range stops.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ARD16TZ/U
• Country of Origin: United States

Technical Specifications

• Brand: Honeywell
• MPN: ARD16TZ/U
• Series: TrueZONE
• Type: Zone damper, single blade automatic damper
• Diameter: 16 in
• Shape: Round
• Input Voltage: 24 VAC
• Maximum Current: 6 A
• Power Consumption: 8 VA (actuator)
• Actuator Torque: 71 in-oz
• Rotation: 90 deg
• Timing: 30 sec power closed / 10 sec spring return
• Operation Mode: Power closed / spring return open (normally open / power closed)
• Material: Galvanized steel
• Blade Gauge: 20 ga / 22 ga
• Leakage: Less than 1% at 0.5 in WC
• Rated Pressure: Up to 1 in-WC
• Temperature Rating: 40 to 140 deg F
• Number of Blades: 1
• Finish: Galvanized
• Electrical Connection: Terminals (power, common, control) - manufacturer terminal labeling
• Position Indicator: Mechanical position indicator and LED indication lights
• Range Stops: Adjustable (4 options)
• Mounting Options: Side or top actuator mounting
• Actuator Features: Spring-return actuator, LED indicator lights, push-in terminals
• Activation: Electric
• Country of Origin: United States
