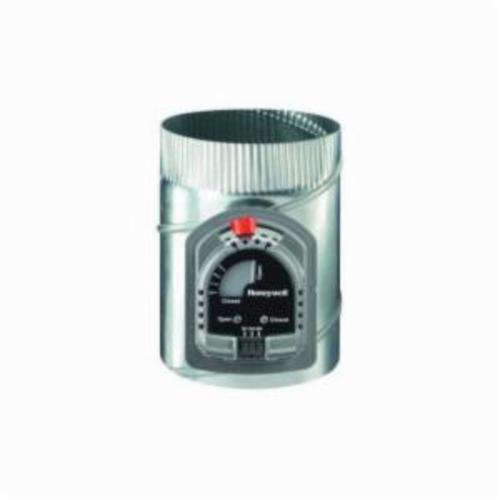

Honeywell ARD14TZU Single Blade Automatic Damper 14 in Dia Replacement MPN

Product Description

The Honeywell TrueZONE ARD14TZ/U is a single blade automatic damper designed for HVAC systems. The MPN is ARD14TZU. This damper provides efficient air control in heating, cooling, and ventilation systems. It minimizes air leakage with its galvanized steel design, ensuring a tight seal against any gasket.

• Rated for operation with 24 VAC power.
• Operates under a range of temperatures from 40 to 140 degrees Fahrenheit.
• Adjustable close position range to suit different needs.

Product Highlights

The ARD14TZ/U damper is suitable for use in Honeywell zoning systems. It can be converted for independent zone or fresh air intake applications. This product promotes energy efficiency and offers ease of installation with a simple two-wire connection.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: L3647

Technical Specifications

• Amperage Rating: 6 A
• Voltage Rating: 24 VAC
• Material: Steel
• Finish: Galvanized
• Motor Type: Power Closed, Spring Open
• Size: 14 in diameter
• Rotation Angle: 90 degrees
• Temperature Rating: 40 to 140 degrees Fahrenheit
• Timing: 30 seconds power closed / 10 seconds spring return
