Honeywell ARD12TZ/U Truezone 2-Wire Motorized Zone Damper 12 in replacement ARD12TZ

Product Description

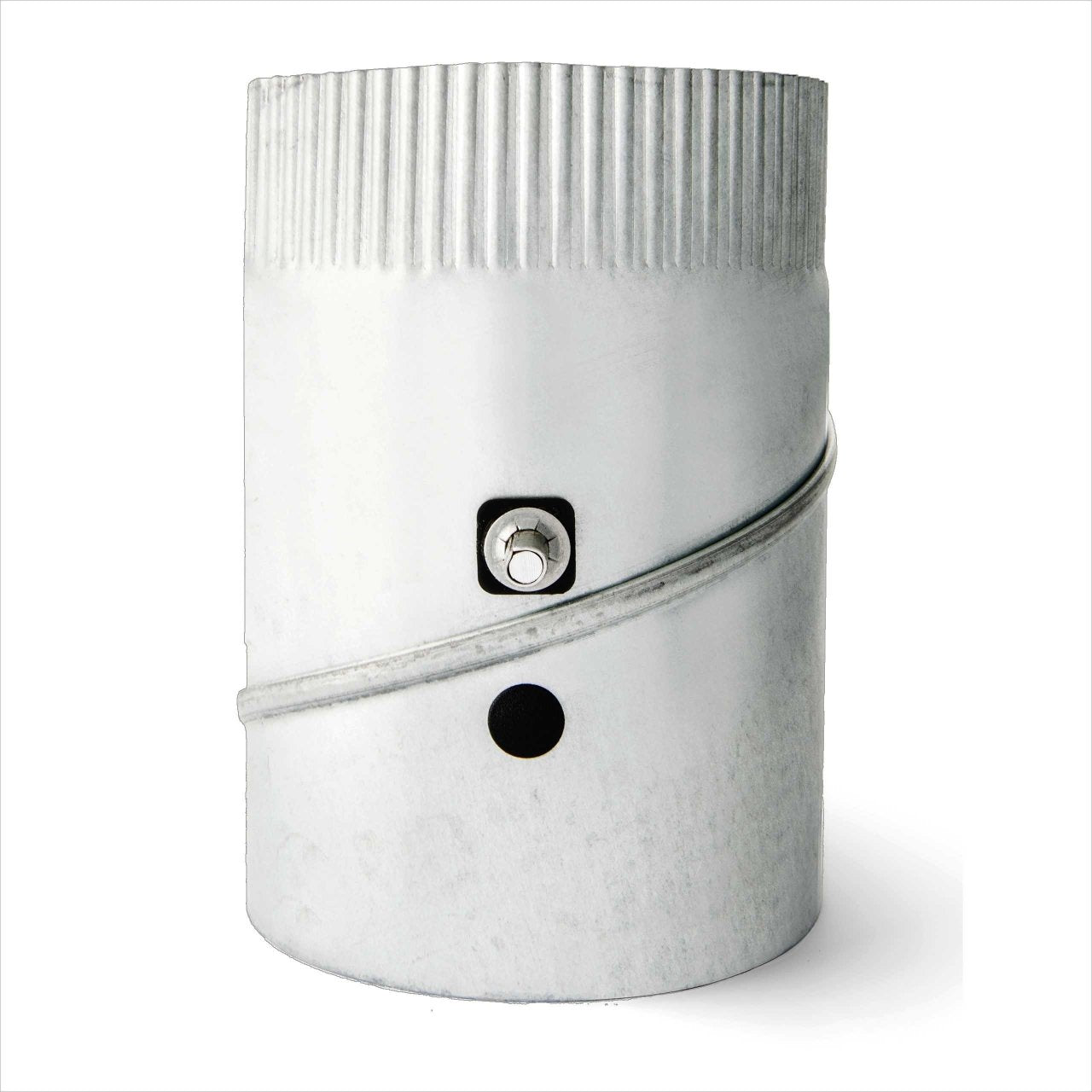

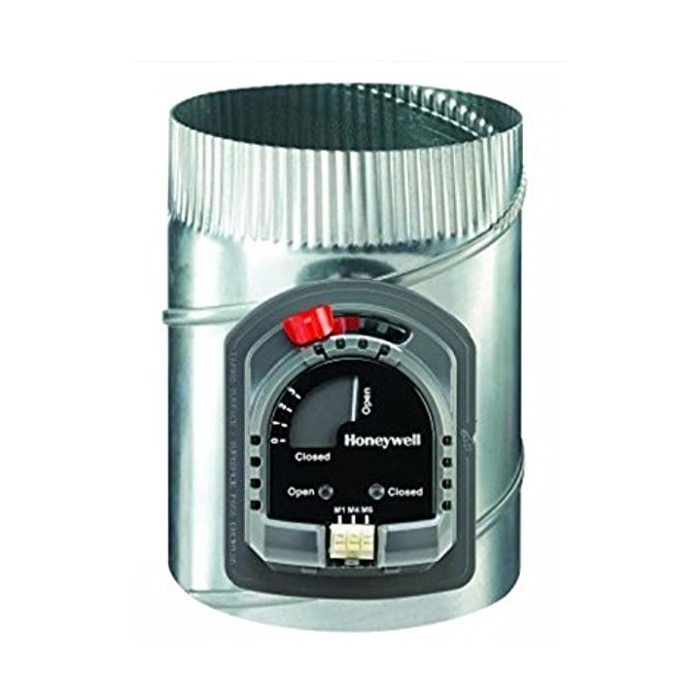

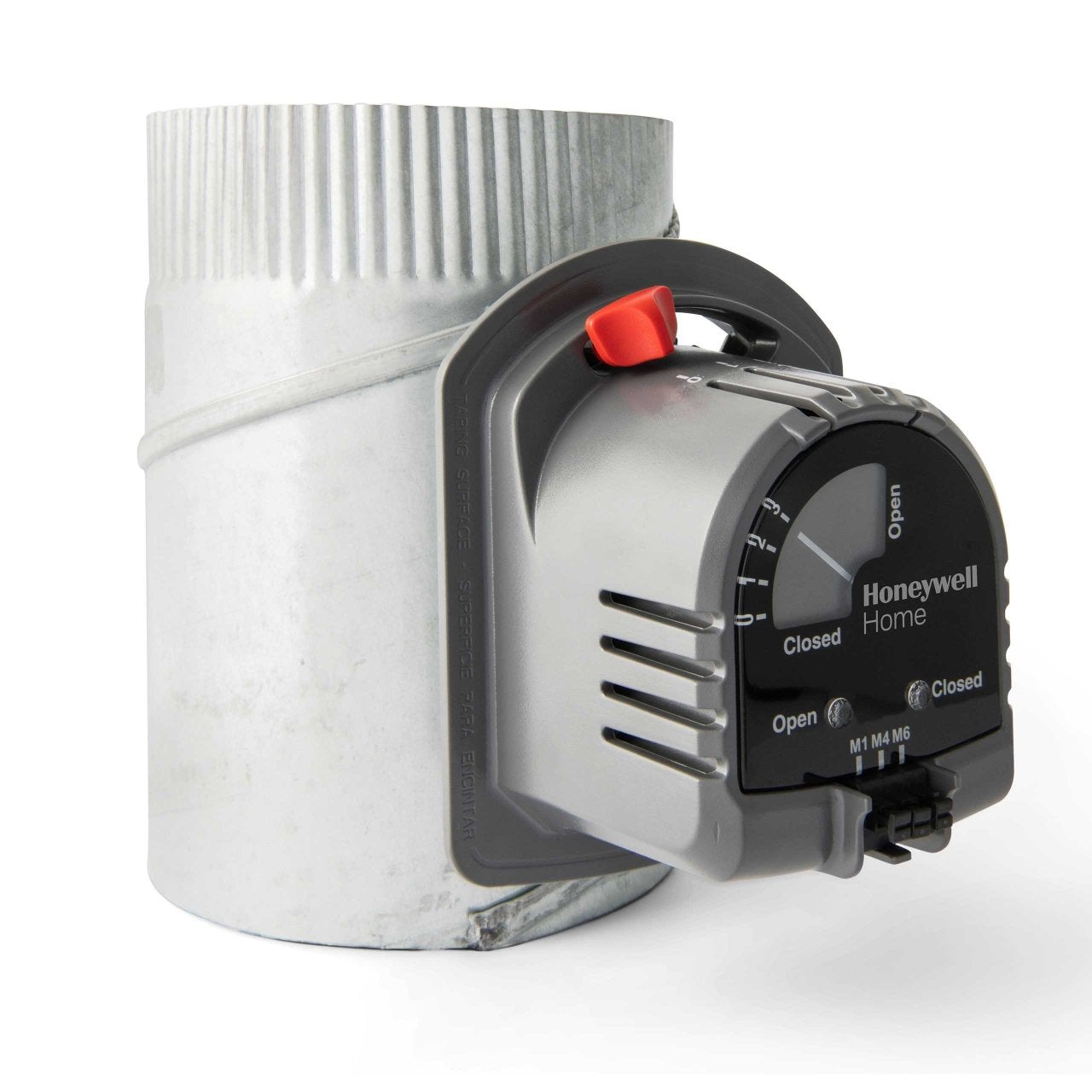

The HONEYWELL ARD12TZ/U Truezone 2-Wire Motorized Zone Damper is a 12-inch damper made of galvanized steel with a single blade that tightly closes against the gasket to minimize leakage. It is designated as a power-closed or spring-return open damper for use with Honeywell zoning systems. Can be field-converted for independent zone or fresh air intake applications.

• Features galvanized steel with single blade damper for minimal leakage
• Designated for power closed or spring return open operation
• Simple two-wire installation with a third wire option for LED light

Product Highlights

The Honeywell ARD12TZ/U is ideal for zoned HVAC systems, ensuring efficient airflow control and minimal leakage.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ARD12TZ/U
• Country of Origin: MX

Technical Specifications

• Amperage Rating: 6 A
• Country of Origin: MX
• Domestic/Import: Import
• Electrical Connections: 2-Wire
• Finish: Galvanized
• Material: Steel
• Motor Type: Power Closed, Reversible, Spring Open
• Rotation Angle: 90 deg
• Series: ARD
• Shape: Round
• Size: 12 in
• Temperature Rating: 40 to 140 deg F
• Timing: 30 sec
• Type: Single Blade
• Voltage Rating: 24 VAC
• Frequency: 60Hz
• Damper Duct Shape Type: Round
• Damper Type: Zone
• Application: Zone Damper
• Damper Material: Galvanized Steel
• Activation: Electric
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Actuator Torque: 71 in-oz
• Blade Material: Galvanized Steel
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator Included: Yes

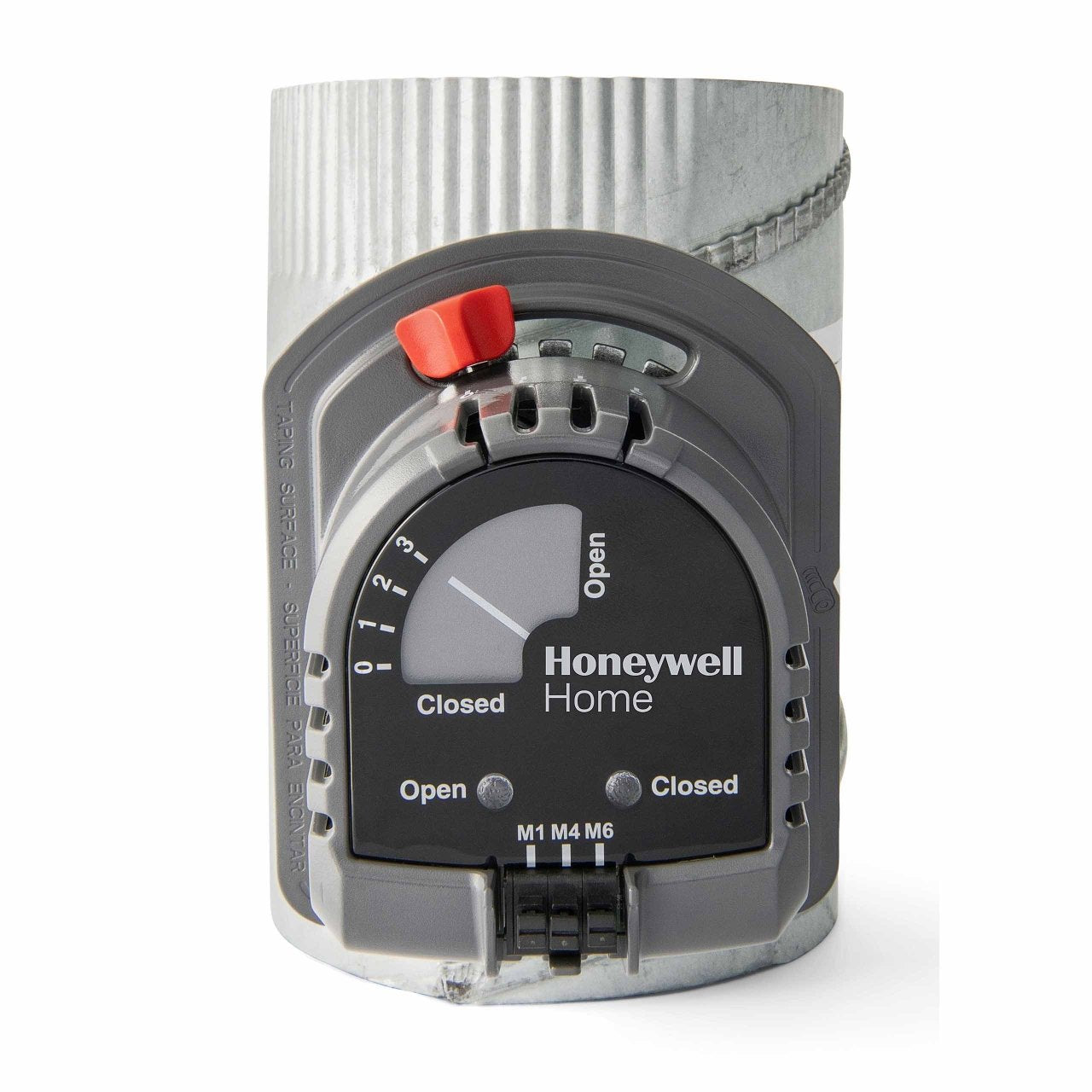

• Position Indicator Type: Damper Position Range Stops, LED indication light for open and close
• Range Stop: Yes
• Range Stop Options: 4
• Catalog Number: Y7011
• Model/Part Number: ARD12TZ/U
• Base Unit of Measure: Unit(S)
• Product Diameter: 12 Inch
• Diameter (inches): 12
