Product Description

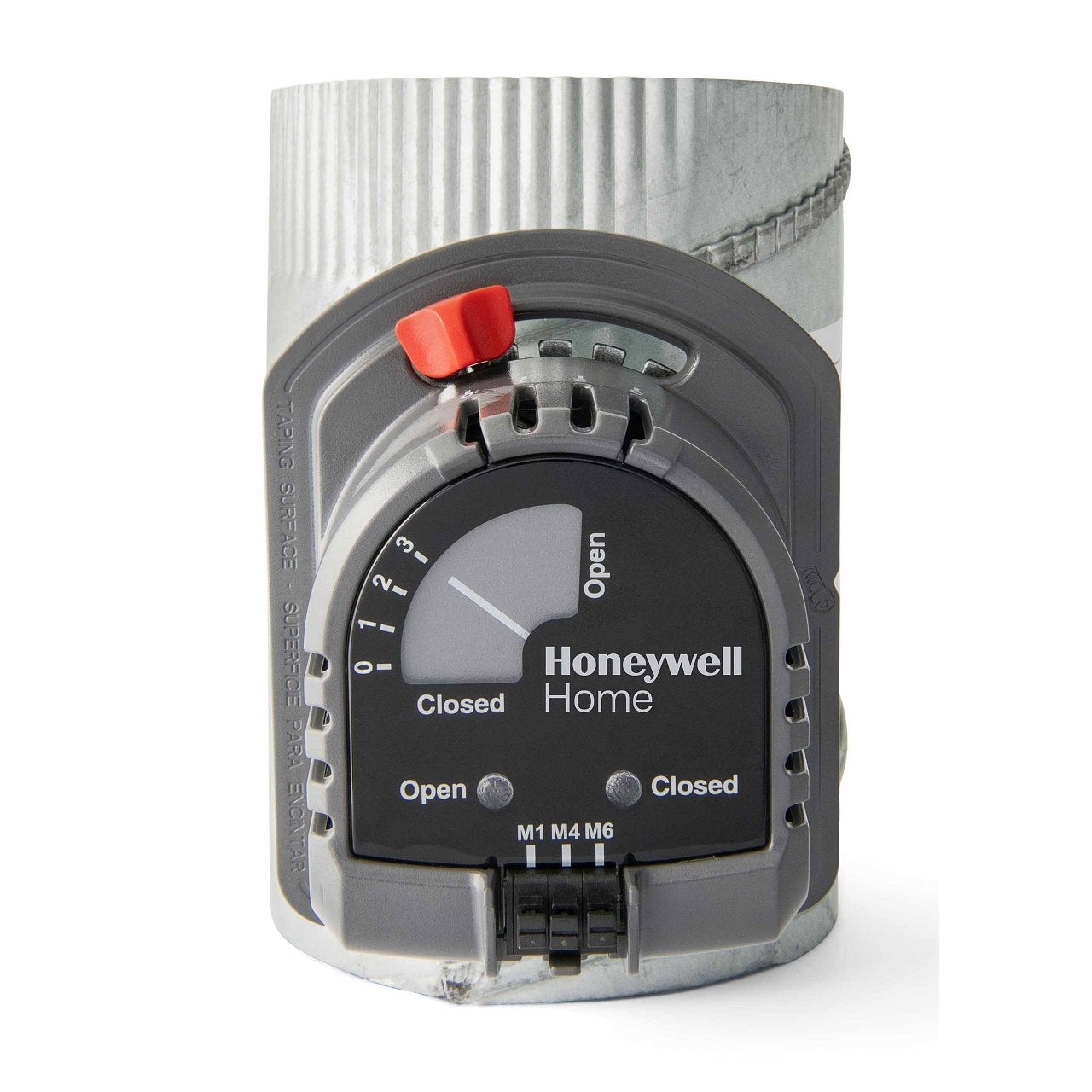

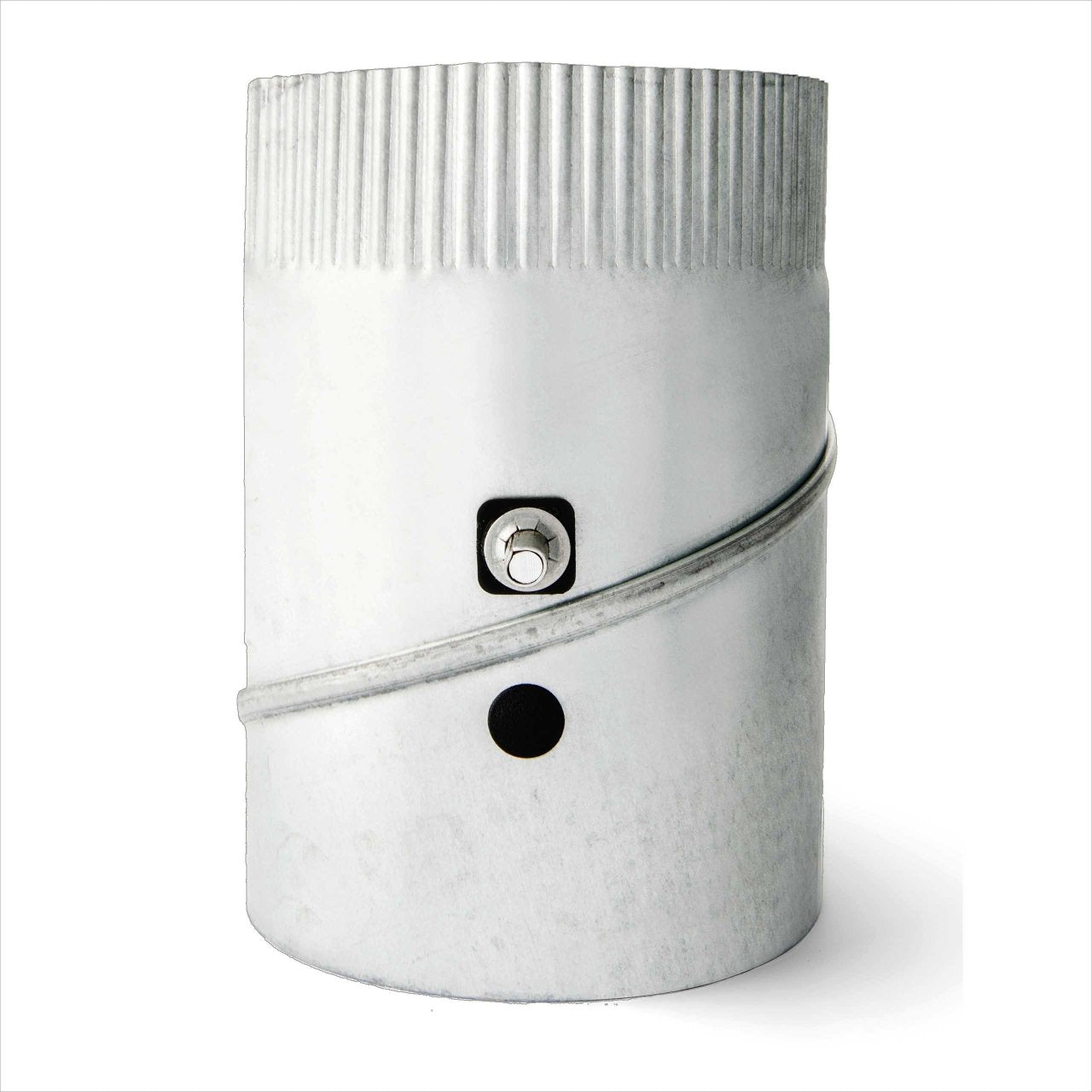

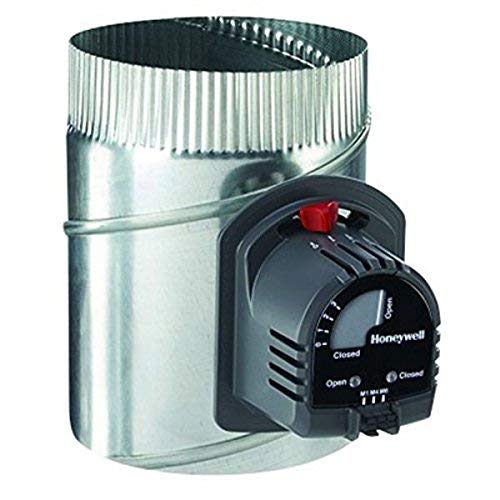

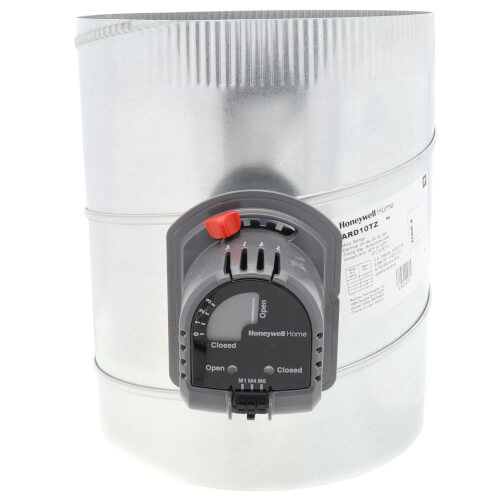

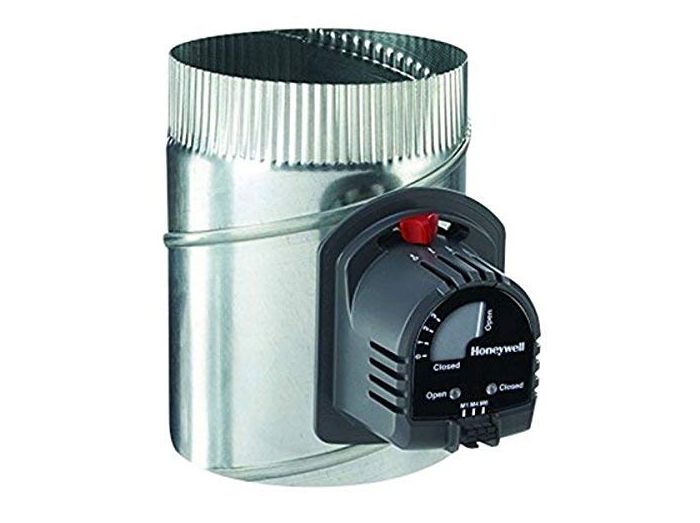

The Honeywell ARD10TZ/U automatic damper is a round, 10" diameter damper designed for HVAC ducting. These power-close, spring-open models ensure minimal leakage while controlling circulating air in heating, cooling, and ventilation systems. It features a galvanized steel single-blade damper that closes tightly against a gasket.
- Features galvanized steel with single-blade damper, which closes off tightly against gasket for minimal leakage
- Designated as power closed/spring return open damper for use with Honeywell zoning systems
- Can be field-converted when used as an independent zone or for fresh air intake
Product Highlights
The Honeywell ARD10TZ/U is ideal for zoned HVAC systems, ensuring efficient airflow control and minimal leakage.
Product Information
Standard Information
-
Brand: HONEYWELL
-
Manufacturer Part Number: ARD10TZ/U
-
Country of Origin: US
Technical Specifications
-
Brand: Honeywell
-
Item Model Number: ARD10TZ/U
-
MPN: ARD10TZ/U
-
Amperage Rating: 6 A
-
Country of Origin: MX
-
Domestic/Import: Import
-
Electrical Connections: M1-Power/M6-Common/M4 Terminal
-
Finish: Galvanized
-
Material: Steel
-
Motor Type: Power Closed, Spring Open
-
Rotation Angle: 90 deg
-
Series: ARD
-
Shape: Round
-
Size: 10 " Dia
-
Temperature Rating: 40 to 140 deg F
-
Timing: 30 sec
-
Type: Single Blade
-
Voltage Rating: 24 VAC
-
Frequency: 60Hz
-
Voltage: 24V
-
Motor: Reversible
-
Motor Mount: Top
-
Motor Timing: 10 seconds Spring Return
-
Wires to Motor: 2
-
Damper Duct Shape Type: Round
-
Damper Type: Zone
-
Application: Zone Damper
-
Damper Material: Galvanized Steel
-
Activation: Electric
-
Actuator Housing Material: Molded Plastic
-
Actuator Power Consumption: 8 VA
-
Actuator Torque: 71 in-oz
-
Blade Material: Galvanized Steel
-
Leakage: Less than 1% at 0.5 in WC
-
Position Indicator Included: Yes
-
Position Indicator Type: Damper Position Range Stops, LED indication light for open and close
-
Range Stop: Yes
-
Actuator Opening Time: 30 seconds power open/10 seconds spring return
-
Pressure Drop (Max): Maximum at full open: 0.0329 in. wc at 800 ft/min
-
Product Diameter: 10 in, 254 mm
-
Static Pressure (Max): 1 in wc
-
Frequency Rating: 60 Hz
-
Diameter: 10 in
-
Electrical Connection: M1 Power, M6 Common, M4 Terminal
-
Gauge: 24 ga
-
Height: 3-61/64 in
-
Motor Dimensions: 4-41/64 in H
-
Number of Blades: 1
-
Pressure Drop: 0.0329 in-WC
-
Pressure Rating: 1 in-WC
-
Timing Range: 30 s
-
Torque Rating: 71 in-oz
-
VA Rating: 8 VA
-
Width: 4-31/32 in
-
Product Series: ARD
-
Family Series: Honeywell Dampers, ARD Series
-
Description: ARD DAMPER10 - TRUEZONE
-
Net Weight: 5.005 lbs
-
Gross Weight: 6.15 lbs
