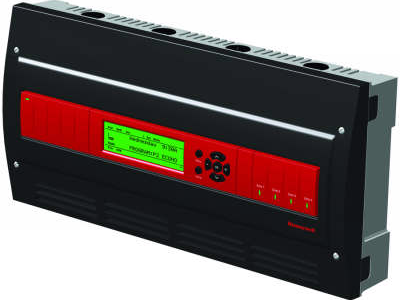

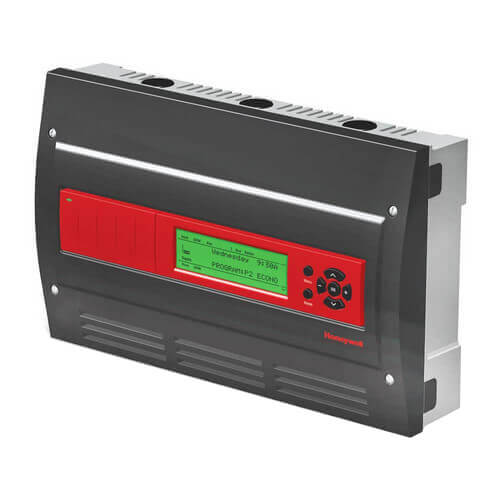

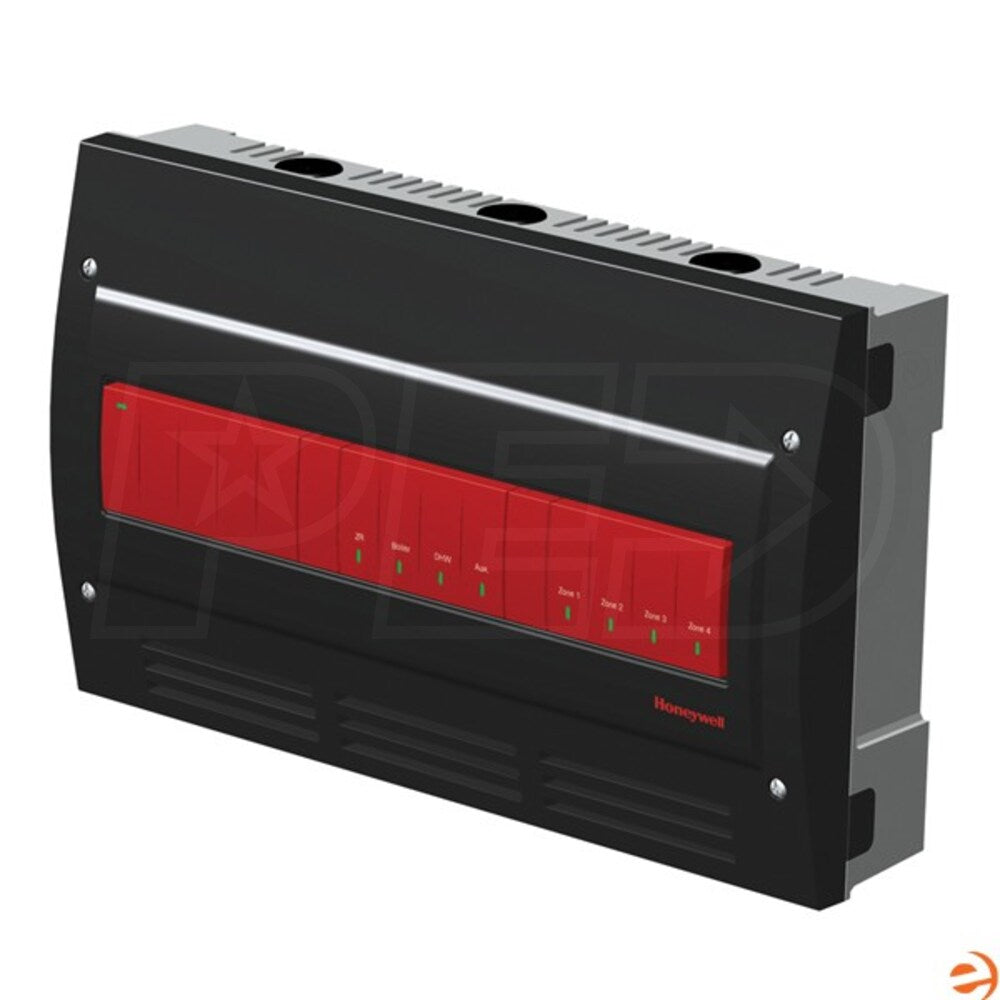

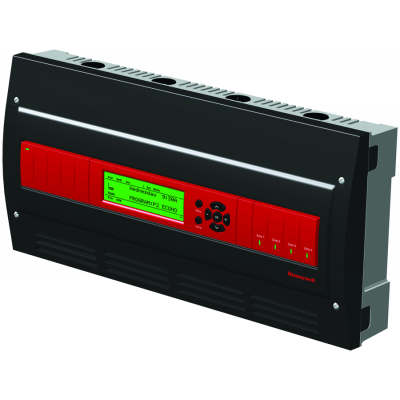

Honeywell AQ25142B/U Aquatrol Boiler Zone Control Panel

Product Description

The Honeywell AQ25142B/U Aquatrol Boiler Zone Control Panel is designed for managing residential hydronic heating systems efficiently. This control panel can manage up to four single-stage zones or two two-stage zones and can be expanded to accommodate a total of 64 zones with additional panels. It features outdoor temperature compensation ensuring energy savings and has a priority feature for domestic hot water.

• Controls up to four single-stage or two two-stage zones.
• Supports outdoor temperature compensation for efficient operation.
• Includes domestic hot water priority for optimized performance.

Product Highlights

This boiler control panel is ideal for transforming single-zone heating systems into multi-zone setups. It offers advanced zoning capabilities that improve heat management and energy efficiency.

Product Information

Standard Information

• Application: Boiler reset control for hydronic zoning system
• Manufacturer Part Number: AQ25142B/U

Technical Specifications

• Zones: 4
• Expandable: Yes
• Input Voltage: 120V/60Hz
• Output Voltage: 24 Vac
• Thermostat Capability: AQ1000 Series and most digital thermostats
• Setback Program: 7 day, up to 2 setback periods/day
• User Interface: LCD Display and 7 button Key Pad
• Operating Humidity Range: 5 to 90% RH, non-condensing
• Product Dimensions: 16.5 inches wide, 8 inches high, 3.375 inches deep
• Product Weight: 8.5 pounds
• UL Listed: Yes
• CSA Listed: Yes
