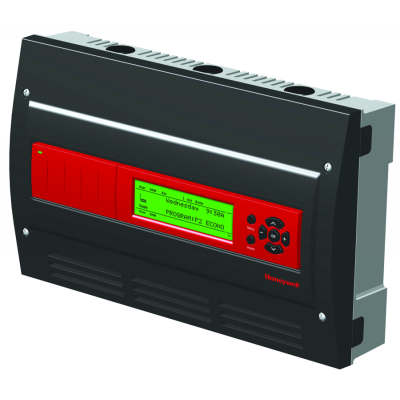

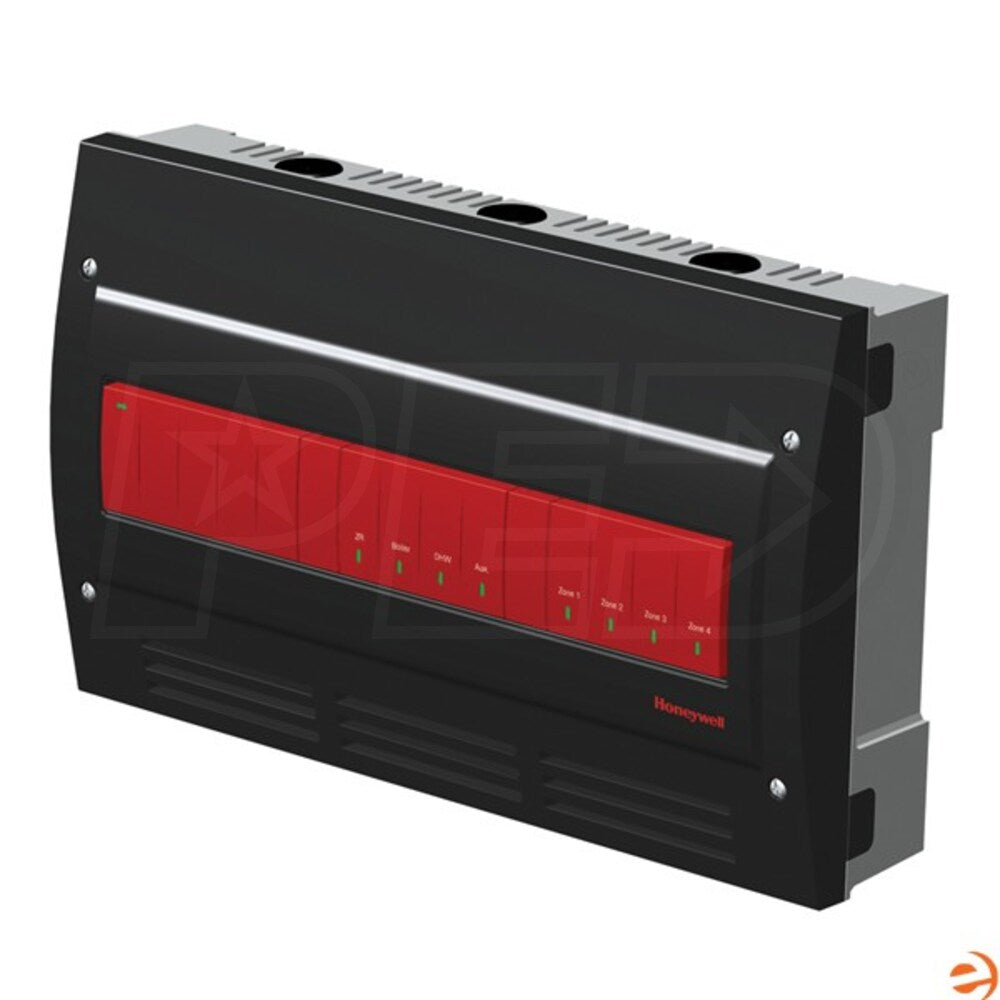

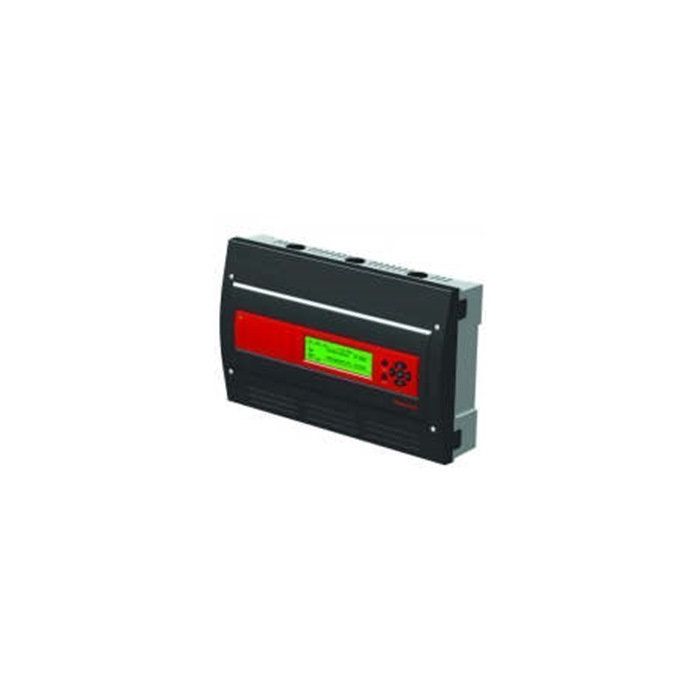

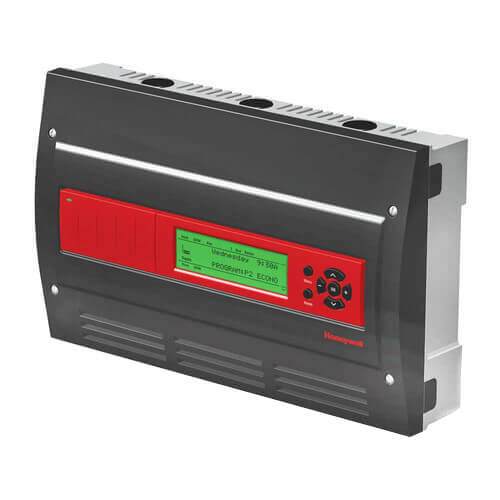

Honeywell AQ25110B/U Aquatrol Boiler Reset Control with DHW Priority

Product Description

The Honeywell AQ25110B/U Aquatrol is a boiler reset control specifically designed for residential hydronic heating systems. This control promotes energy-efficient operation by compensating for outdoor temperatures, converting a single-zone setup into a multi-zone comfort control system. It also upgrades standard zoning systems to a Zone of Greatest Demand control, ensuring adequate hot water supply for both space heating and domestic use. The control device supports various thermostat types, including both communicating and non-communicating models, while also providing features such as outdoor temperature compensation and priority for domestic hot water supply.

• Converts single-zone to multi-zone heating systems.
• Offers outdoor temperature compensation for improved energy efficiency.
• Provides domestic hot water priority and override protection.

Product Highlights

This boiler reset control is ideal for enhancing comfort and optimizing heating efficiency in residential applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• Product Line: Aquatrol

Technical Specifications

• Application: Boiler reset control for hydronic zoning systems
• Zones: 4
• Thermostat Compatibility: AQ1000 Series 2-wire communicating thermostats and most digital thermostats
• User Interface: LCD Display and a 7-button Key Pad
• Boiler Max Control Temperature: OFF, 120F to 225F
• Boiler Min Control Temperature: OFF, 59F to 180F
• Input Voltage: 120V
• Dimensions: 13 inches wide x 8 inches high x 3 and 3/8 inches deep
• Weight: 7.25 pounds
• UL Listed: Yes
• CSA Listed: Yes
• Parts Warranty: 1 Year
