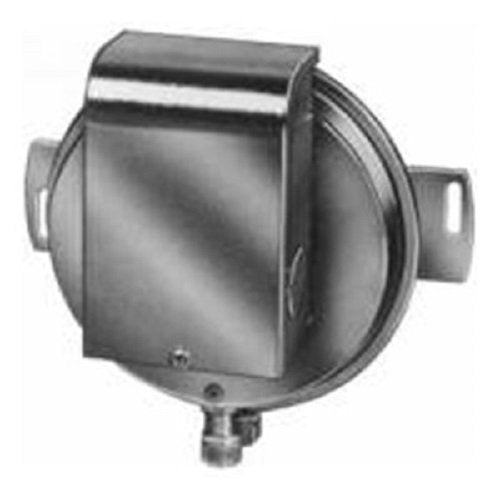

Honeywell AP5027-30 SPDT Air Pressure Switch with Auto Reset

Product Description

The Honeywell AP5027-30 SPDT Air Pressure Switch with Auto Reset is designed for HVAC systems. This switch adjusts pressure automatically and comes with a yellow label. It replaces the CLEAFS405 and TDIAP502730 models.

• Models available with compression or barb fittings
• Automatic reset models feature SPDT contacts
• Electrical switch enclosed in a metal box with a cover

Product Highlights

This switch is used to control HVAC pressure. It has automatic reset and is enclosed in a durable metal box. It is reliable for pneumatic operations.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell

Technical Specifications

• Adjustable Range: 0.05 to 12.0 WC PR
• Operating Pressure Rating: 0.5 PSI
• Differential Pressure Rating: 0.5 PSI
• Pressure Media: Air
• Contact Configuration: SPDT 2 Circuit
• Contact Rating: 278 Volt Amp 24 Volt AC, 300 Volt Amp 120 to 277 Volt AC, 10 Milliamp 5 Volt DC, 15 Amp 277 Volt AC (Resistive) Pilot Duty
• Connection Type: 1/4 Inch Compression
• Enclosure Material: Metal
• Approval: UL, CSA, FM
• Overall Dimension: 5 Inch Diameter x 3.1 Inch Depth x 5.55 Inch Height
• Temperature Rating: -40 to 190 Deg F
• Electrical Connection: #6-32 Screw Terminal with Cup Washer
• Switch Operation: Automatic Reset
