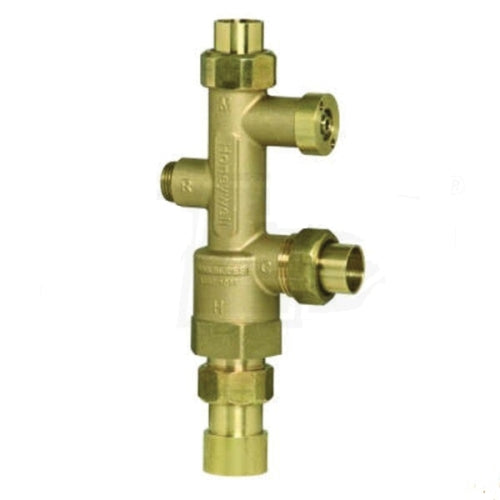

Honeywell AMX102-UT-1 Thermostatic Mixing Valve 1 inch x 1 inch Union Thread x FNPT Bottom

Product Description

The Honeywell DirectConnect AMX102-UT-1 is a thermostatic mixing valve designed for efficient temperature control in various applications. Featuring a size of one inch by one inch with a union thread and FNPT bottom, this valve ensures reliable mixing of hot and cold water.

• Designed for direct installation on a water heater hot outlet port
• Adjustable temperature settings with an allen wrench
• Constructed with brass and stainless steel for durability

Product Highlights

This thermostatic mixing valve prevents scalding and provides constant water temperature even with changing conditions. It is suitable for heat pump systems, nursing homes, and other facilities.

Product Information

Standard Information

• Brand: Honeywell Thermostats and HVAC Parts
• MPN: AMX102-UT-1

Technical Specifications

• Flow Rate: 20 gpm
• Inlet Temperature (Cold): 33 - 80 Deg F
• Inlet Temperature (Hot): 100 - 180 Deg F
• Material: Brass/Stainless Steel
• Maximum Pressure Rating: 150 psi
• Overall Height: 10.3 inch
• Temperature Rating: 90 - 130 Deg F
• Flow Coefficient (Cv): 4
