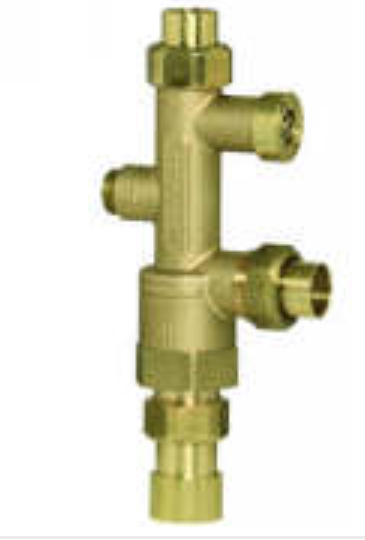

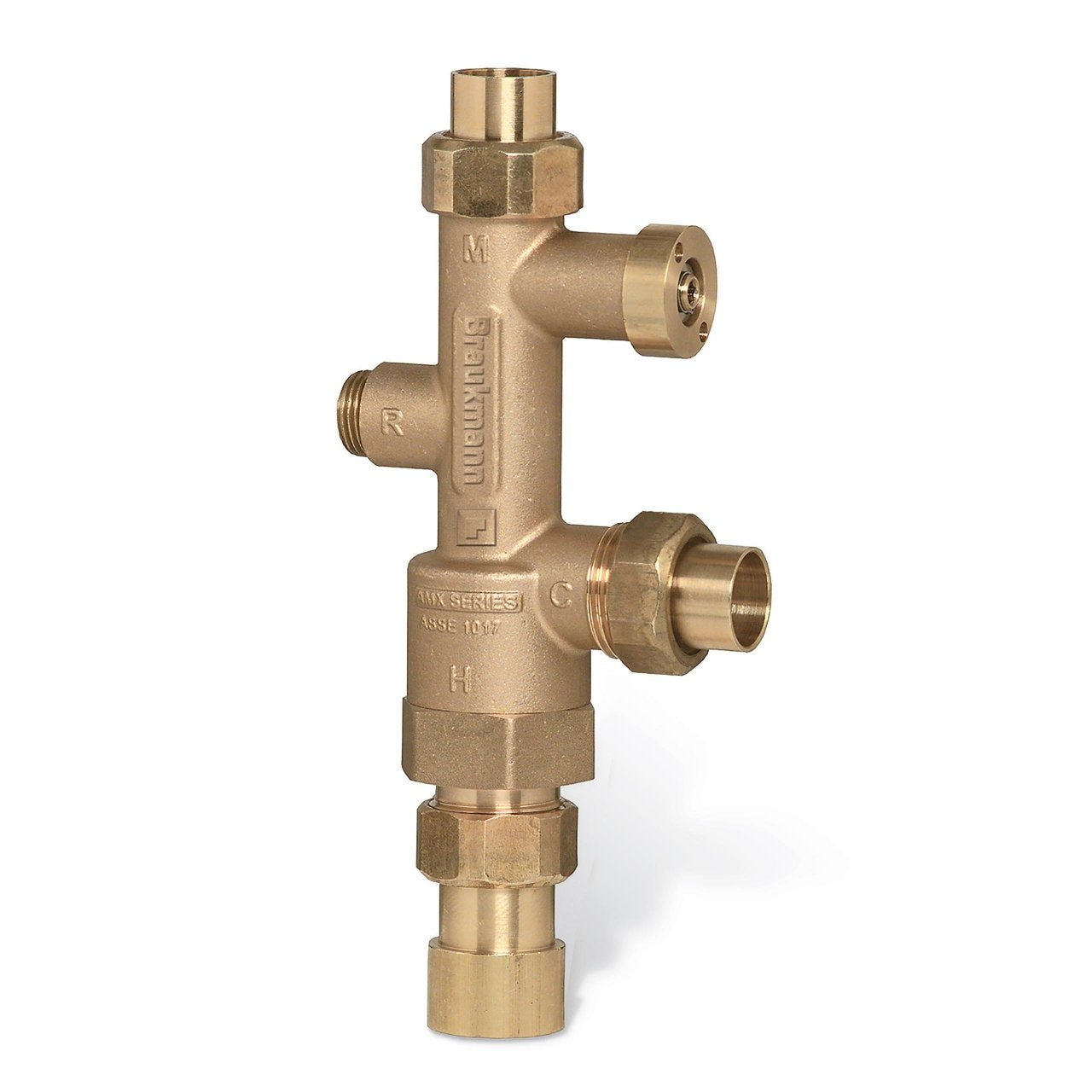

HONEYWELL AMX102-US-1LF/U AMX Series DirectConnect Mixing Valve 1 in Union Sweat

Product Description

The HONEYWELL AMX102-US-1LF/U AMX Series DirectConnect mixing valve is designed to streamline water heater installations. By eliminating the need for elbows and tees, it reduces installation time effectively. This valve provides consistent water temperature to enhance user comfort and safety, thus preventing potential scalding. Adjustments to temperature can be made easily using a 3/16 inch Allen wrench. The mixing valve also activates flow reduction if cold water supply is cut off.

• Prevents scalding and improves safety.
• Features a durable brass and stainless steel construction.
• Maintains steady water temperature under varying conditions.

Product Highlights

This mixing valve is a reliable component for both hot and cold water systems, ensuring performance and longevity.

Product Information

Standard Information

• Brand: HONEYWELL
• MPN: AMX102-US-1LF/U

Technical Specifications

• Connection Size: 1 in
• Warranty: 1 Year
• Controlled Media: Potable Water, Non Potable Water
• Re-Circulation: Yes
• Approvals and Standards: ASSE 1017 Certified, CSA Listed, IAPMO Listed
• Adjustment Means: Handwheel
• Hot Inlet Temperature (Max): 180 °F, 82 °C
• Cold Inlet Temperature (Min): 33 °F, 0.5 °C
