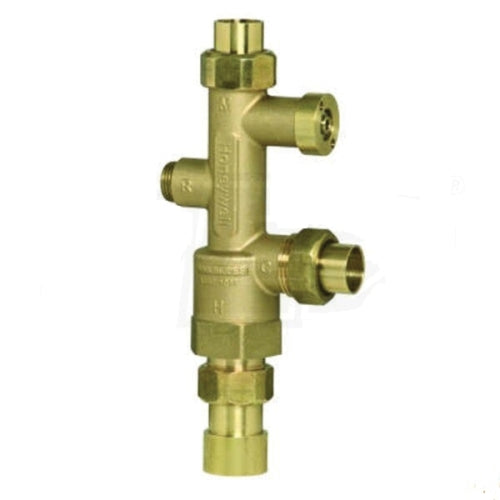

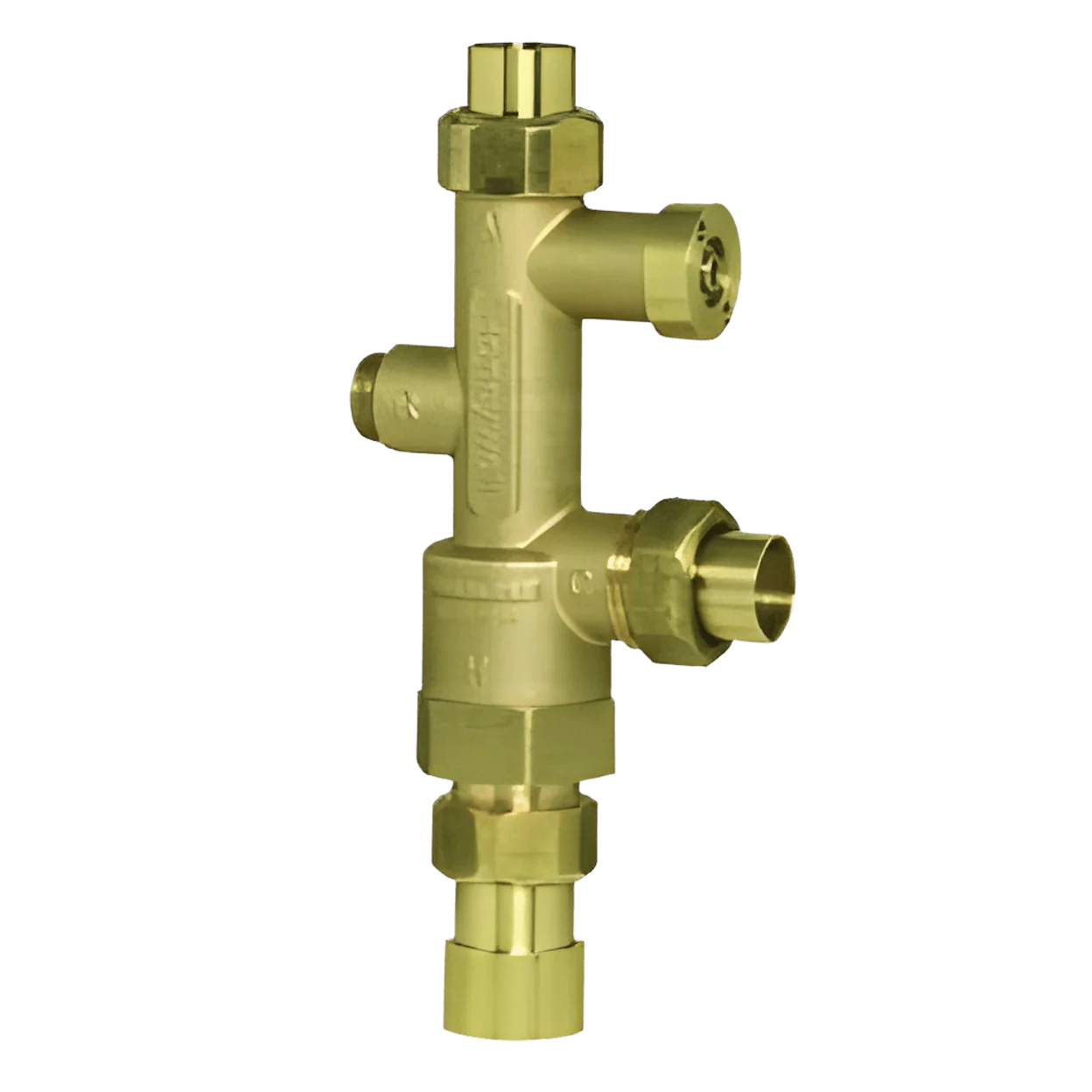

Honeywell AMX102-US-1 Thermostatic Mixing Valve 1 inch x 1 inch Union Sweat x FNPT Bottom

Product Description

The Honeywell AMX102-US-1 is a thermostatic mixing valve designed for efficient temperature control. It features a union sweat x FNPT bottom connection and is constructed from brass and stainless steel for durability and performance. This product is compatible with heat pump systems, domestic water applications, and various heating systems.

• Flow rate of 20 gallons per minute.
• Maximum pressure rating of 150 psi.
• Inlet temperature range from thirty-three to eighty degrees Fahrenheit for cold, and one hundred to one hundred eighty degrees Fahrenheit for hot.

Product Highlights

This mixing valve helps maintain consistent water temperature and ensures safety by preventing scalding. Easy to install, it is suitable for use in public facilities, nursing homes, and residential applications.

Product Information

Standard Information

• Brand: Honeywell Thermostats and HVAC Parts
• MPN: AMX102-US-1

Technical Specifications

• Flow Rate: 20 gpm
• Overall Height: 10 inches
• Overall Width: 5-5/16 inches
• Temperature Rating: 90 - 130 Deg F
• Flow Coefficient (Cv): 4
• Applications: Heat pump systems, radiant floor heating, solar hot water, and more.
• Standards/Approvals: ASSE 1017, CSA Certified, IAPMO Certified
