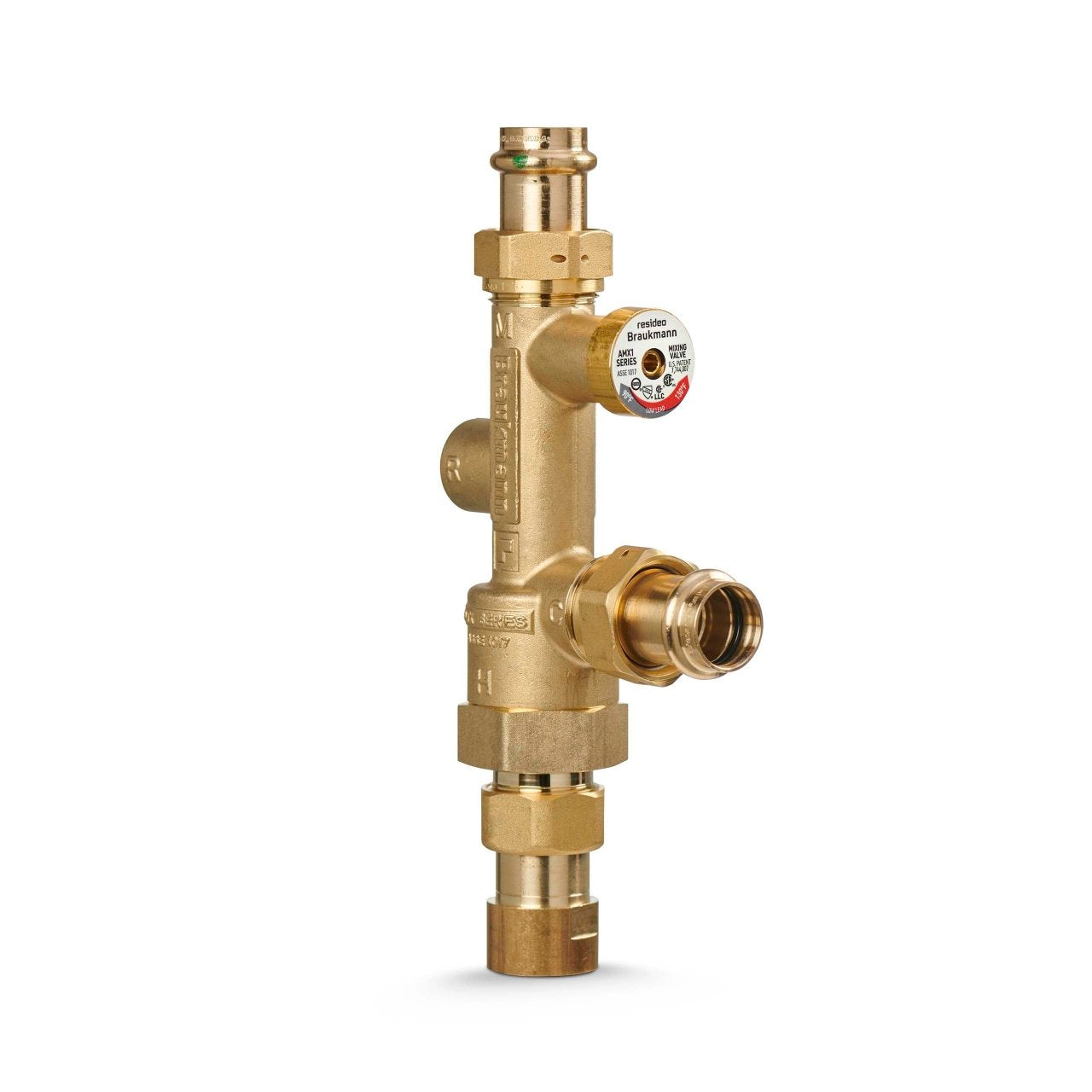

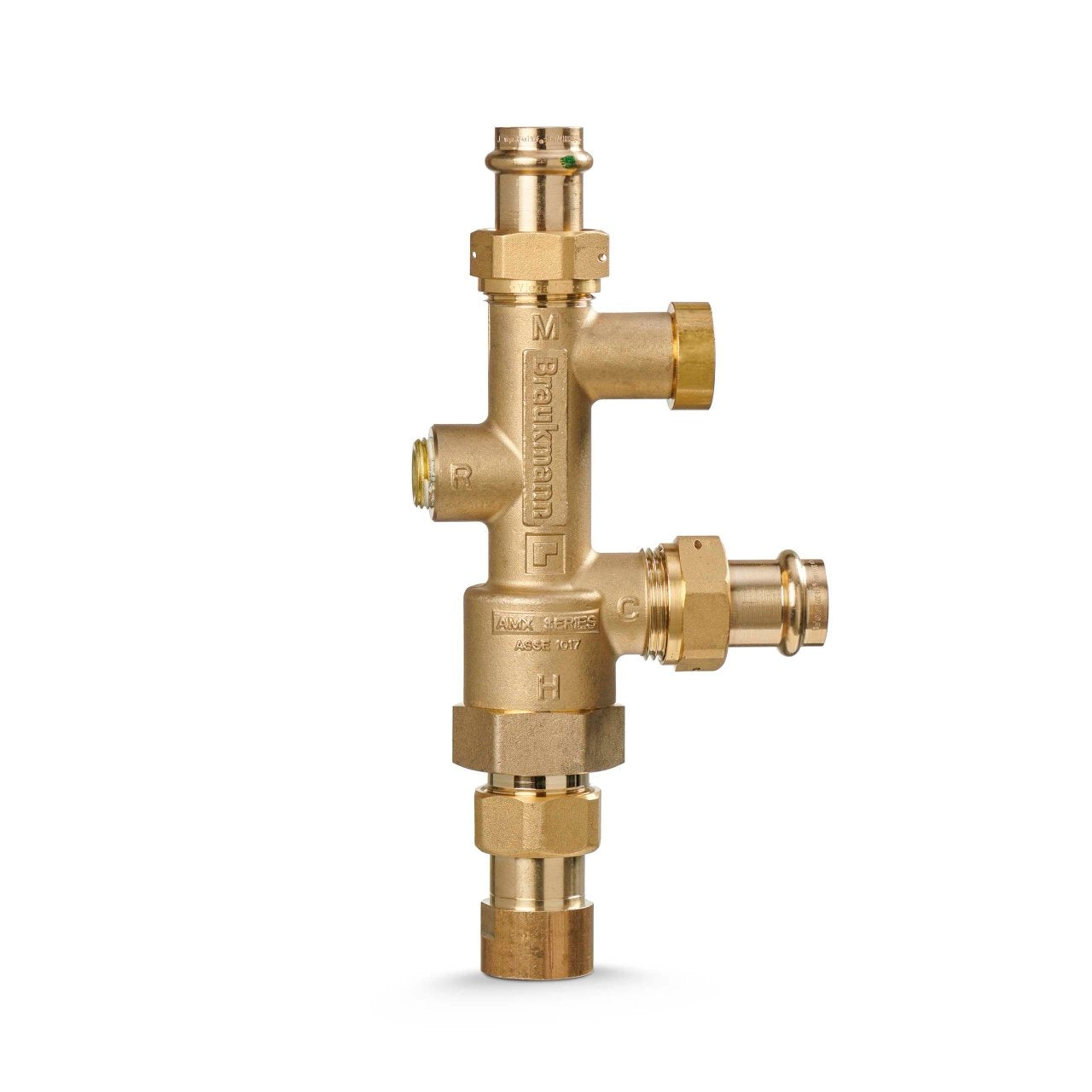

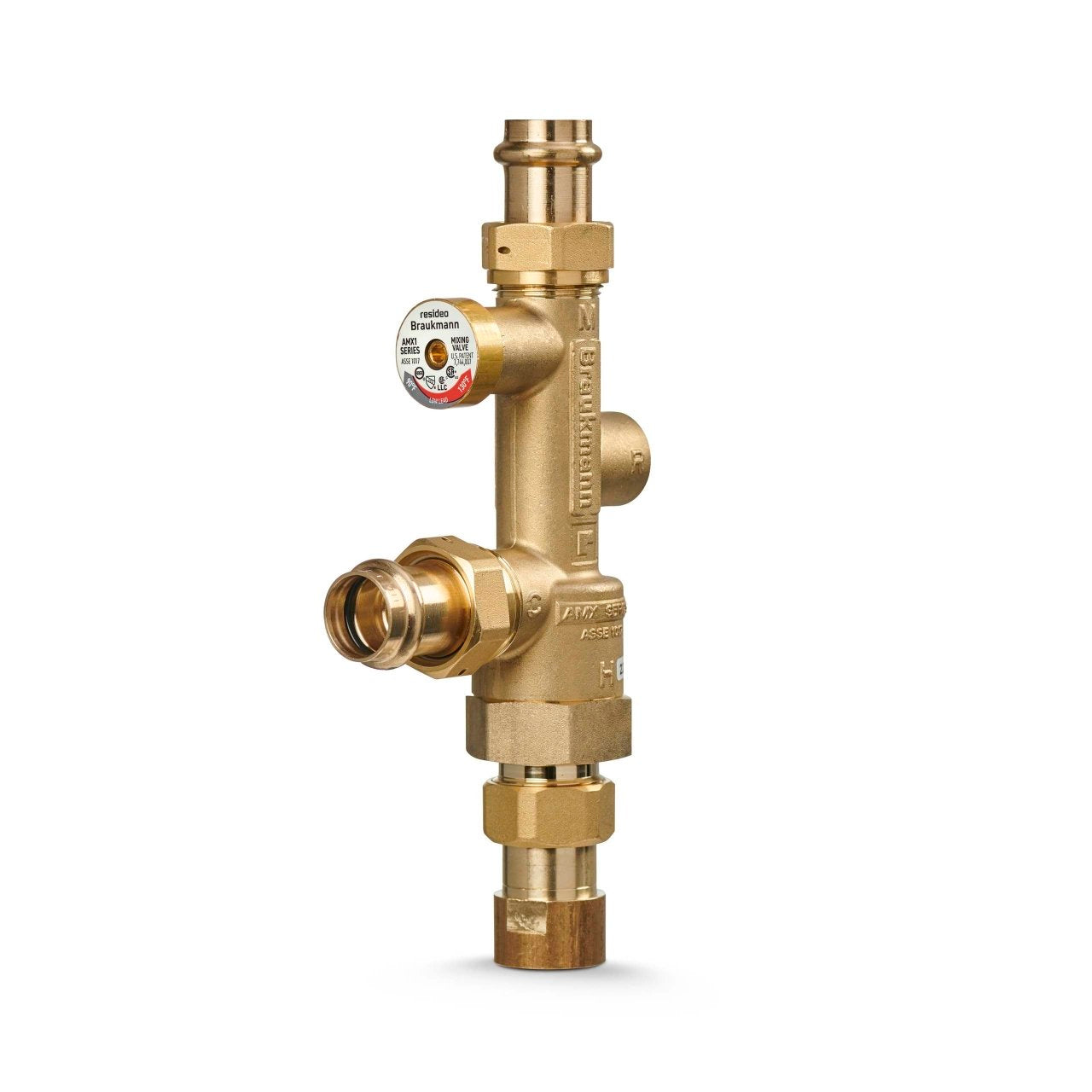

HONEYWELL AMX102-UP-1LF DirectConnect Union Pro Press Mixing Valve

Product Description

The Honeywell AMX102-UP-1LF is a DirectConnect mixing valve suitable for residential and commercial use. It helps to save energy while ensuring comfort and safety. This mixing valve is part of the AMX100 series and contributes to a quicker installation with fewer components. The valve includes a one inch FNPT inlet and two one inch Union Pro Press fittings, simplifying the setup process.

• Maintains consistent water temperature under various operating conditions.
• Features a recirculation connection for faster temperature response.
• Comes with an integral check valve on the cold water port.

Product Highlights

The Honeywell AMX102-UP-1LF functions as both a mixing and diverting valve, enhancing versatility in applications.

Product Information

Standard Information

• Controlled Media: Potable Water, Non-Potable Water
• Warranty: 1 Year

Technical Specifications

• Cold Inlet Temperature (Min): 39 °F, 4 °C
• Hot Inlet Temperature (Max): 180 °F, 82 °C
• Mixed Outlet Temperature (Max): 145 °F, 63 °C
• Operating Pressure (Max): 150 psi, 1034 kPa
• Flow Rate (Min): 0.50 gpm, 1.9 lpm
• Connection Size: 1 in
• Connection Type: Union ProPress
