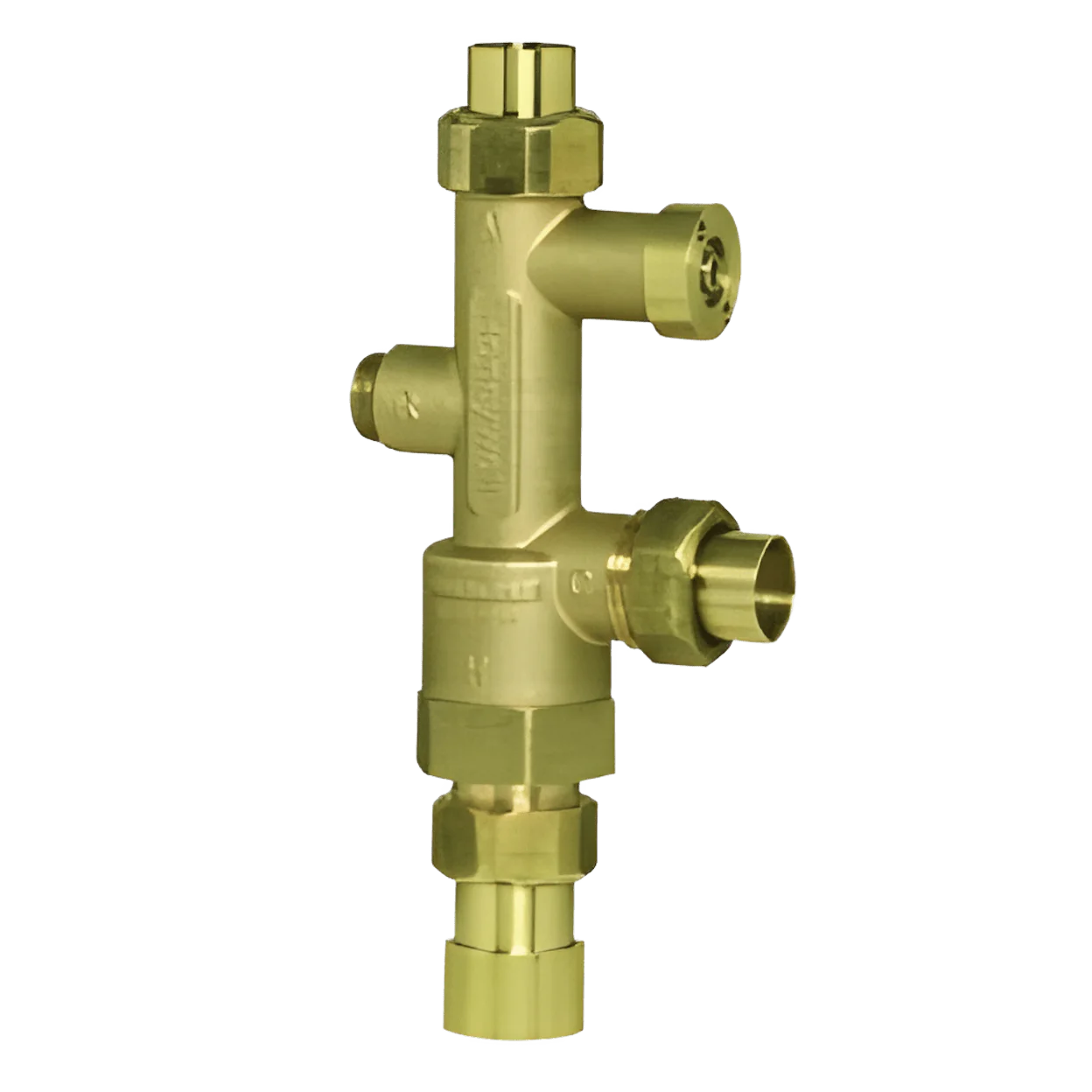

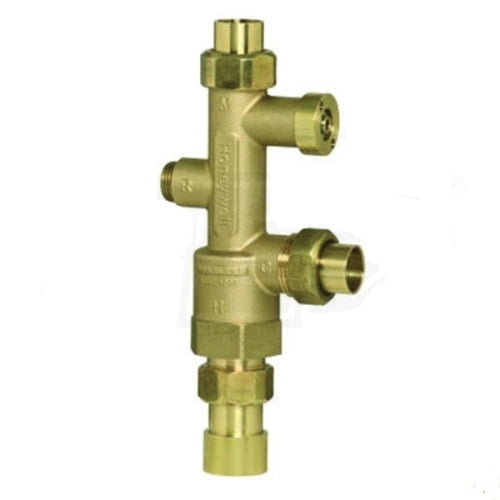

Honeywell AMX101-UT-1 Honeywell DirectConnect AMX Series 3/4 inch x 3/4 inch Union Thread x FNPT Bottom Brass/Stainless Steel Thermostatic Mixing Valve

Product Description

The Honeywell DirectConnect AMX101-UT-1 is a thermostatic mixing valve. The valve is made from brass and stainless steel materials. This product features a union thread x FNPT bottom connection. It works effectively in various applications, ensuring safe water temperature control.

• Flow rate up to 14 gallons per minute.
• Max pressure rating of 150 psi.
• Temperature adjustment possible with a 3/16-inch Allen wrench.

Product Highlights

This thermostatic mixing valve is designed to prevent scalding while providing a constant water temperature.

Product Information

Standard Information

• Brand: Honeywell Thermostats and HVAC Parts
• Part Number: AMX101-UT-1

Technical Specifications

• Flow Rate: 14 gpm
• Inlet Temperature (Cold): 33 - 80 Deg F
• Inlet Temperature (Hot): 100 - 180 Deg F
• Material: Brass/Stainless Steel
• Maximum Pressure Rating: 150 psi
• Overall Height: 9-11/16 inch
• Connection Type: Union Thread x FNPT Bottom
• Temperature Rating: 90 - 130 Deg F
