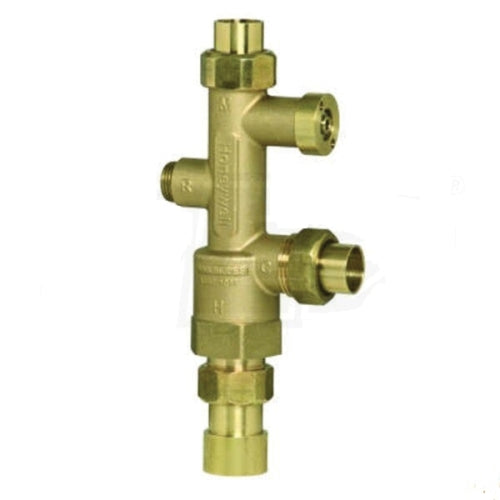

Honeywell AMX101-US-1 DirectConnect Thermostatic Mixing Valve 3/4 inch x 3/4 inch Union Sweat x FNPT Bottom

Product Description

The Honeywell AMX101-US-1 is a thermostatic mixing valve made of brass and stainless steel. It features a union sweat and FNPT bottom connection. This valve offers a flow rate of fourteen gallons per minute and an inlet temperature range from thirty-three to eighty degrees Fahrenheit for cold water and one hundred to one hundred eighty degrees Fahrenheit for hot water. Its design assists in maintaining a safe and reliable water temperature, enhancing comfort and safety in various applications.

• Constructed for durability with brass and stainless steel.
• Adjustable temperature settings for user convenience.
• Robust for applications in heat pump systems and public facilities.

Product Highlights

The valve is designed for easy installation on water heater hot outlet ports. It maintains a constant water temperature under varying conditions and effectively reduces scalding risk.

Product Information

Standard Information

• Brand: Honeywell Thermostats and HVAC Parts
• MPN: AMX101-US-1

Technical Specifications

• Flow Rate: 14 gpm
• Inlet Temperature (Cold): 33 - 80 Deg F
• Inlet Temperature (Hot): 100 - 180 Deg F
• Material of Construction: Brass/Stainless Steel
• Maximum Pressure Rating: 150 psi
• Overall Height: 9 inch
• Overall Width: 4 inch
• Size: 3/4 inch x 3/4 inch
• Connection Type: Union Sweat x FNPT Bottom
• Temperature Rating: 90 - 130 Deg F
• Flow Coefficient (Cv): 4
