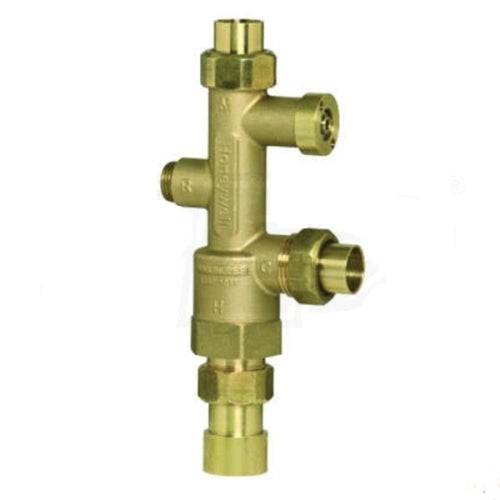

Honeywell AMX101-UPEX-1 Honeywell DirectConnect AMX Series 3/4 inch x 3/4 inch PEX Union x FNPT Bottom Brass/Stainless Steel Thermostatic Mixing Valve

Product Description

The Honeywell DirectConnect AMX Series AMX101-UPEX-1 is a thermostatic mixing valve designed to enhance water delivery efficiency. This valve connects to the hot water outlet of water heaters and maintains a balanced temperature for various applications.

• Designed for installation on water heaters
• Maintains consistent temperatures under varying conditions
• Adjustable temperature with a simple tool

Product Highlights

This product prevents scalding by ensuring safe temperature levels and is ideal for residential or commercial use.

Product Information

Standard Information

• Brand: Honeywell Thermostats and HVAC Parts
• MPN: AMX101-UPEX-1

Technical Specifications

• Flow Rate: 14 gpm
• Inlet Temperature (Cold): 33 - 80 Deg F
• Inlet Temperature (Hot): 100 - 180 Deg F
• Material: Brass/Stainless Steel
• Maximum Pressure Rating: 150 psi
• Overall Height: 9-3/16 inch
• Overall Width: 4-3/16 inch
• Size: 3/4 inch x 3/4 inch
• Connection Type: PEX Union x FNPT Bottom
• Temperature Rating: 90 - 130 Deg F
• Flow Coefficient (Cv): 4
• Applications: Heat Pump Systems, Domestic Water, Nursing Homes, Public Facilities, Automatic Faucets, Radiant Floor Heating, Space Heating, Solar Hot Water, Greenhouses, Photo Processing, Industrial Applications
• Standards/Approvals: ASSE 1017, CSA Certified, IAPMO Certified
