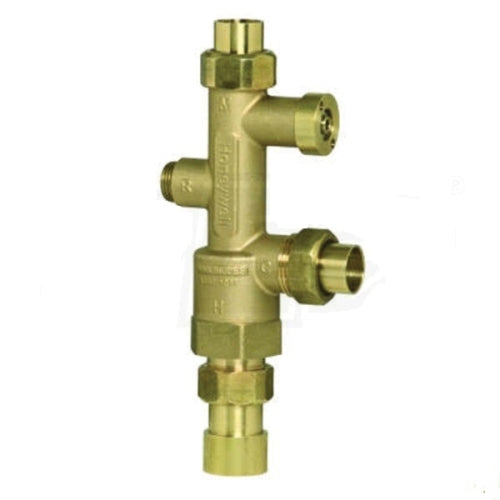

Honeywell AMX100-US-1 Honeywell DirectConnect AMX Series Thermostatic Mixing Valve 1/2 inch x 3/4 inch Union Sweat x FNPT Bottom

Product Description

The Honeywell DirectConnect AMX100-US-1 is a thermostatic mixing valve designed for efficient temperature control. This valve features a size of one half inch x three fourths inch with a union sweat x FNPT bottom connection. It is ideal for various applications including heat pump systems and radiant floor heating.

• Flow rate of eight gallons per minute
• Pressure rating of up to one hundred fifty psi
• Constructed from brass and stainless steel

Product Highlights

This valve ensures consistent water temperature under varying conditions.

Product Information

Standard Information

• Brand: Honeywell Thermostats and HVAC Parts
• MPN: AMX100-US-1

Technical Specifications

• Flow Rate: 8 gpm
• Inlet Temperature (Cold): 33 - 80 Deg F
• Inlet Temperature (Hot): 100 - 180 Deg F
• Material of Construction: Brass/Stainless Steel
• Maximum Pressure Rating: 150 psi
• Overall Height: 8-3/16 inch
• Overall Width: 4 inch
• Temperature Rating: 90 - 130 Deg F
